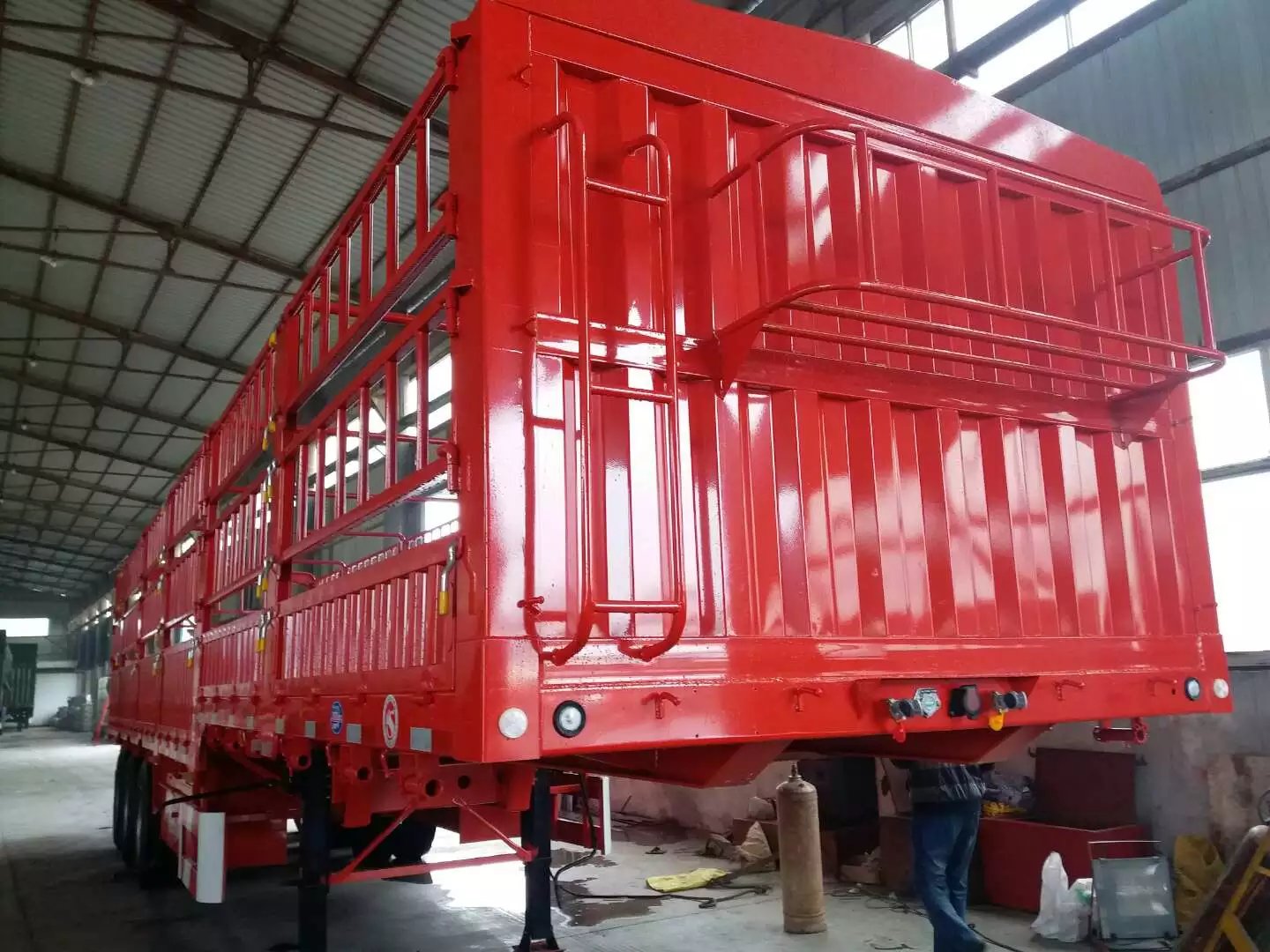

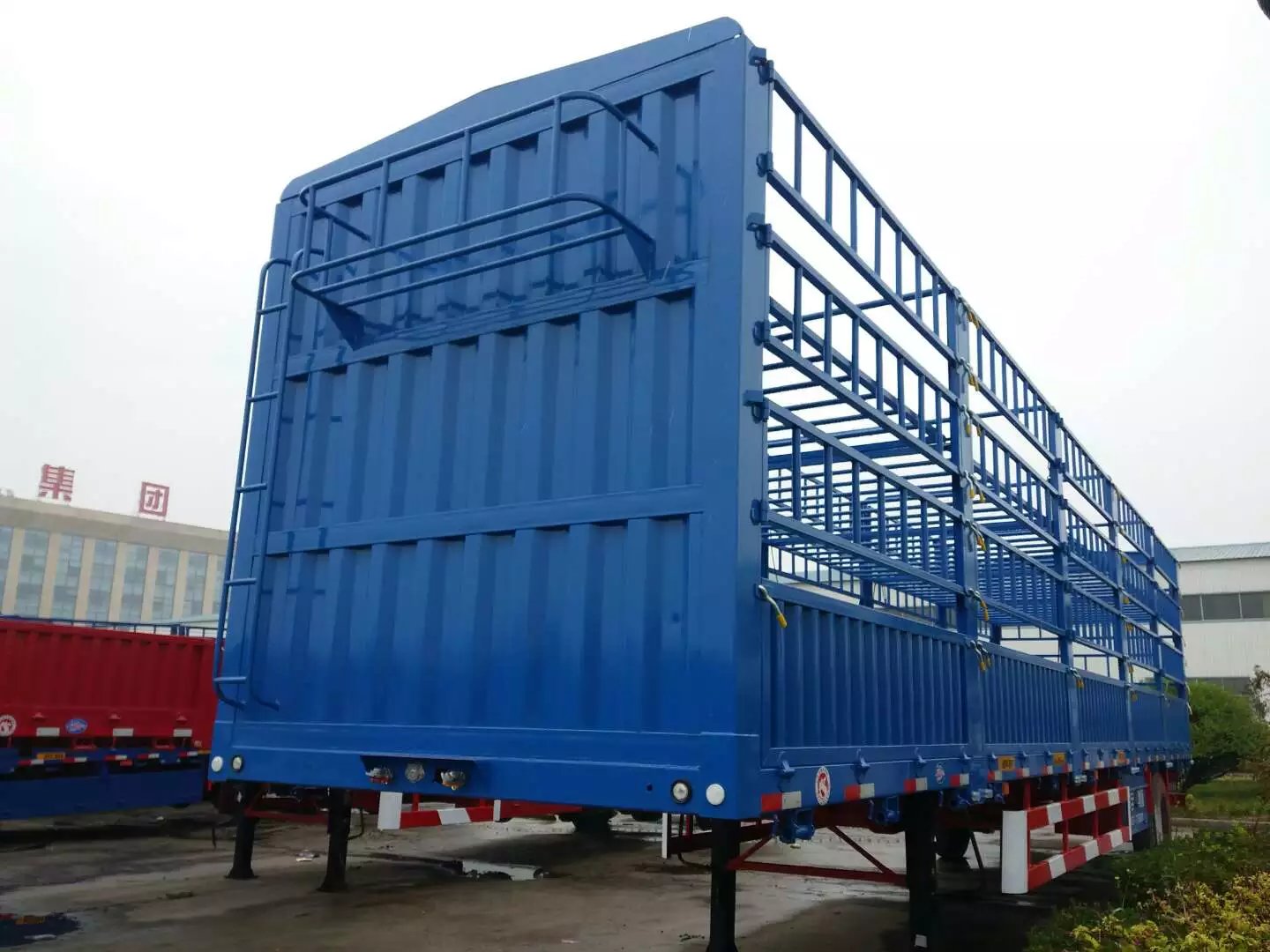

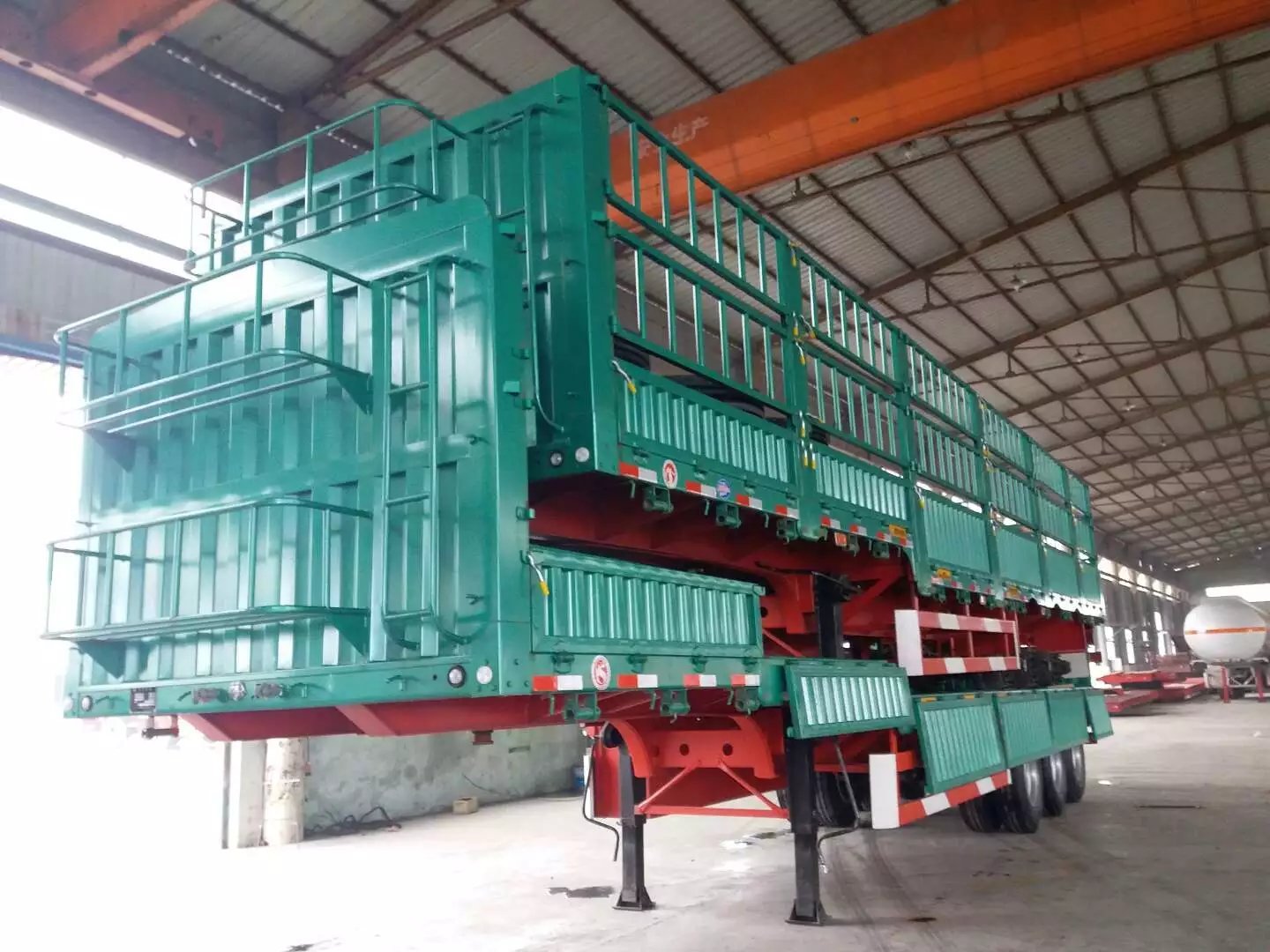

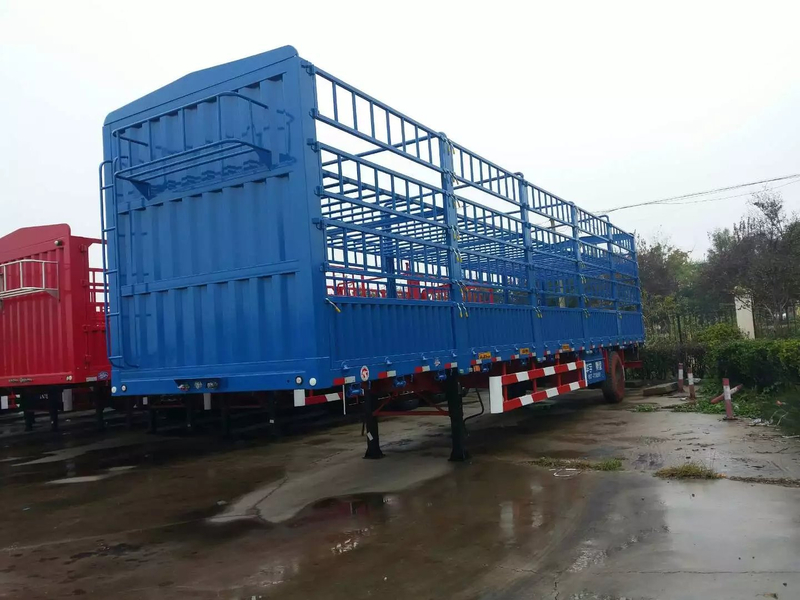

Pandamech 3 Axle 40-60 Ton Side Wall Semi Trailer Fence Cargo Trailer
The whole trailer will be waxed before shipment;
Shipped in Bulk Cargo, FR Container or by Roro.
Delivery Time
15-25 days after received deposit
No. | Assembly Name | Composition | Specifications | Optional |
1 |
Chassis |
Main beam | Material: Q345Steel Height: 500mm 14mm Upper plate& 8mm Middle plate&16mm Down plate | |
Cross beam | 10# channel steel | |||
Side beam | 16# channel steel | |||
King Pin | 2”or3.5”traction pin | JOST | ||
Dimensions(L*W*H) | Can be lengthened 18m,transfer 3*20ft or1*40+2*20ft container | |||
Floor | 3mm diamond steel plate | |||
2 | Suspension | Suspension type | Common mechanical | |
Steel Spring | 10/10/10 | |||
3 | Running system | Axle | Number: 3 Brand: Fuwa | BPW |
Wheel Rim | 9.0-22.5steel wheel rim | |||
Tire | Spe:12R22.5volume 11.00R20 steel wire Number :12 | |||
4 | Brake system | Brake Chamber | 6 big chamber | WEBCO |
Brake Valve | KTL Brand/WEBCO | |||
Brake system | Dual Line Brake system | ABS | ||
5 | Other | Tool box | 1 set standard tool box | |
Light | Tail lamp with turn signal ,brake light & reflector, side lamp etc. | |||
Painting | 1 coat of anticorrosive prime, twice coats of final paint. | |||
Spare Tire Carriers | 2 pieces | |||
Twist lock | 12sets twist lock for 1*20ft,2*20ft,1*40ft container | |||
Landing gear | 28T Heavy duty manual operating landing gear | JOST | ||
6 | Weight | Tare Weight | 7200Kg | |
Loading Capacity | 60T | |||
Axle weight load | 13T | 16T | ||
Shandong Panda Mechanical Co.,Ltd. Advantages:
Design Drawing:
A Drawing will Send to Clients Confirm Suitable Design for Varied Trucks and Purpose.Try to Provide Most Suitable Trailers
Blank Progress:
Beams and Accessories are Processed with Scale Numerical Control Plasma Cutting Machine,Brings High Precision,Ensure Geometric Accuracy.Rolling-Over Welding Provide Every Point Quality Welding.
Shot Blasting:
Trailer Body and Ports are Pre-treated with Shot Blasting in Order to Remove Rust and Eliminate Oil,Improve Surface Intensity and Painting Adhesion
Painting:
Once Primer with Twice Finish Painting Provide Good Anti-rust Capability
Test:
Trailer Performance test before delivery
Axle:
Famous Brand Axle Support: BPW, FUWA,
Trailer Durable and High Truck Attendance Rate
Chassis:
China Best Q345B-T700 support Stronger Trailer Skeleton
Tire:
Good Quality Tire support Trailer Running Safety&Smoothly
King Pin:
JOST Detachable Type support Durable and Fast&Easy Replace
Emergency Valve:
Fast Response,Low Failure support Safetly&Protect Tire Longer Time Use
CLW Group Parnter:
African countries:
Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.
European and Asian countries:
Russia, Kazakhstan, Kyrgyzstan, Bangladesh, Azerbaijan, Vietnam, Laos, Cambodia, the Philippines, Malaysia and so on.
South American countries:
Brazil, Bolivia, Uruguay, Peru, Ecuador , Trinidad and Tobago , Chile, Barbados , Argentina, Dominica, Cuba, and so on
