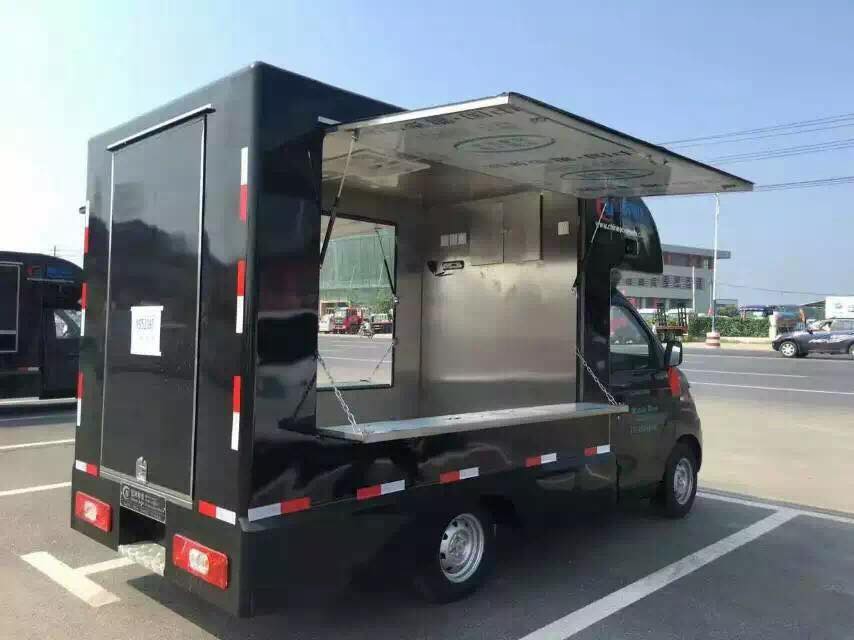

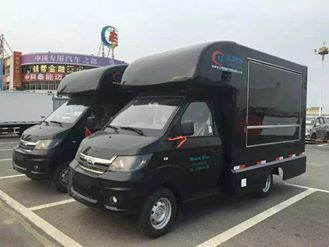

Specification of Karry 75hp 4*2 LHD gasoline food truck | |||
Condition | LHD/4×2 | ||
Chassis | Brand | Karry | |
Dimension(mm) | 4660*1800*2575 | ||
Wheelbase(mm) | 2600 | ||
Curb weight(kg) | 1435 | ||
Approach/departure angle(°) | 28/16 | ||
Front /rear overhang(mm) | 615/1445 | ||
Wheel track(front /rear)(mm) | 1360/1380 | ||
Max driving speed(km/h) | 110 | ||
Tire | Quantity | 6pcs+1 | |
Specification | 165R13LT | ||
Cab | Two person | ||
Engine | Model | SQR472WF | |
Maximum horsepower | 75hp | ||
Displacement | 1.083L | ||
Max output power | 55kw | ||
Cylinder number | 4 | ||
Fuel type | gasoline | ||
Rated speed | 6000rpm | ||
Maximum torque | 98N.m | ||
Maximum torque speed | 3500-4500rpm | ||
Engine type | Horizontal 4-cylinder double overhead camshaft 16V multi-point EFI gasoline engine | ||
Emission standard | Euro 4 | ||
UPPER Part | ||
Box | Dimension(mm) | 2600*1730*1800 |
Exterior material | Cold-rolled plate | |
Interior side plate material | Fiberglass | |
Interior bottom material | Fiberglass | |
Standard Configuration | Both sides turn up with bar,rear turn up, the truck is equipped with power amplifier horn and external power plug,non-skid aluminum decorative pattern bottom plate, lighting can be optional to install ceiling lamp or layout LED light strip. | |
Remarks | 1. Stainless steel work table 2. Gas Burner 3. Oil pan 4. Air conditioning 5. Water tank used 6. Clean water tank 7. Wash basin 8. Oil filtration Machine 9. Refrigerator 10. Exhaust Fan 11. Electrical generator | |
Company Introduction:
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness, etc. Our company has independent export authority, with good technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation, we have attracted a lot of customer from all over the world.
l More than 10 years' experience as a manufacturer
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 300 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
l Annual production value topped 240,000,000 US dollars per year
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck / Pump Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Garbage truck, garbage compactor truck, Hook Lift Garbage Truck
12. High Pressure Cleaning Truck
13. Sweeper Truck / Vacuum Sweeper Truck
14. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
