| Quantity: | |
|---|---|
CLW9400
clw
CLW 20 FT 40 FT Container self loading semi trailer Lowbed Semi Trailer Specifications
| MAIN SPECIFICATION of self loading container truck trailer | |
| Overall(L*W*H) | 14100*2500*4100mm |
| The distance between trailer and container | Optimum distance:400mm |
| The largest distance :1500mm | |
| Side Lifter Crane | Quality Side Crane |
| Max. lifting capacity | 40000kg |
| Max.stabiliser outreach | 3200mm |
| Max. working range | 4000mm |
| Max. pressure of hydraulic | 28MPa |
| Hydraulic system | Hydraulic pump: Italian CASAPPA |
| Electric control system | Hydraulic control valve: Netherlandish AMCA |
| Telecontroller: German NBB | |
| Voltage: 12V | |
| Two chain | Two chain: lgus (imported) |
| Diesel engine | Japanese Kubota diesel engine |
| Trailer Chassis | L*W*H:14100*2500*4000mm |
| Axles: 3*13 tons axles | |
| Tire: 12R22.5 tubless tire, 12 pcs | |
| Suspension:Heavy duty type mechanical suspension | |
| Kingpin:2 inch or 3.5 inch bolted type | |
| Landing gear: 28T | |
| Water-drenching device | |
| Spare parts | Imported from Swedish |
Description

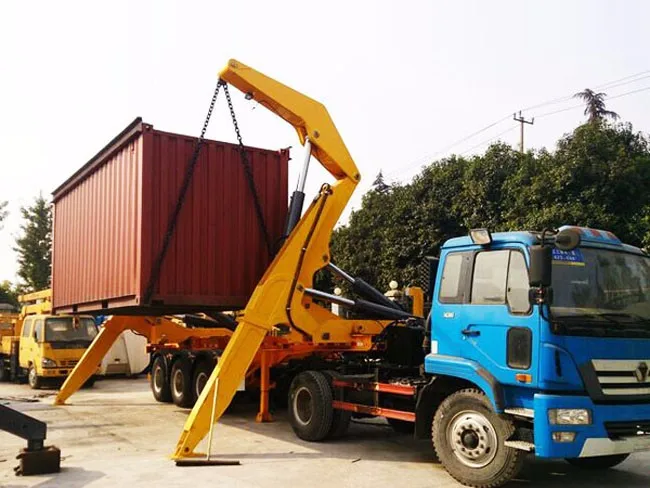

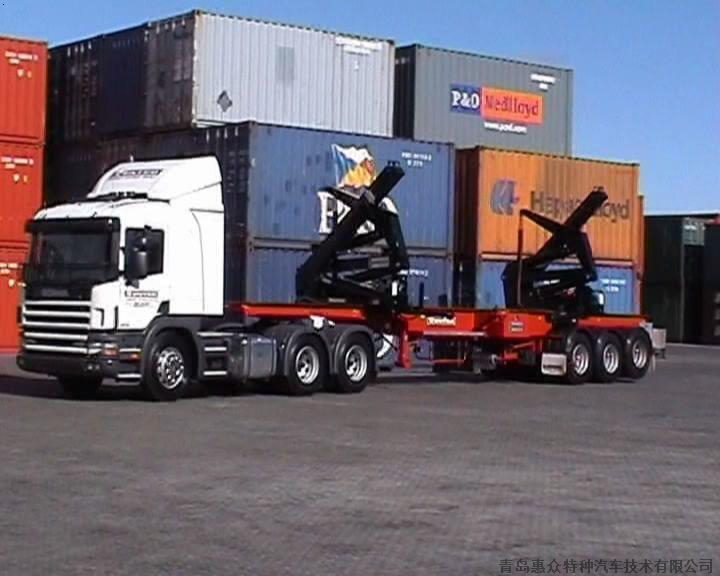

1.Side loader can slide to load/unload 20ft,40ft container.
-Titan sideloader are widely used in ports, stations and yards for load/unload 20ft, 40ft ISO standard container.
2.High lifting capacity.
-Tian sideloader has the highest lifting capacity, staring at 37ton in the basic design and available with a full 40 ton of capacity.
3.Save time and improve efficiencies : With a TITAN 40ft Sidelifter Trailer , The trailer driver can load and unload the container in 5 minutes on his or her own, then the truck is on the road again. Without the need to wait for other heavy lifting equipment. This eliminates the cost associated with leaving trailers on site and increases the opportunities for the number of pick-ups and drop-offs in each cycle. It can also free up staff and equipment for other tasks, thus increasing efficiency and reducing operational costs.
Our Service
To answer your questions
To solve your problems
To your satisfaction
Hot Selling
CLW 20 FT 40 FT Container self loading semi trailer Lowbed Semi Trailer Specifications
| MAIN SPECIFICATION of self loading container truck trailer | |
| Overall(L*W*H) | 14100*2500*4100mm |
| The distance between trailer and container | Optimum distance:400mm |
| The largest distance :1500mm | |
| Side Lifter Crane | Quality Side Crane |
| Max. lifting capacity | 40000kg |
| Max.stabiliser outreach | 3200mm |
| Max. working range | 4000mm |
| Max. pressure of hydraulic | 28MPa |
| Hydraulic system | Hydraulic pump: Italian CASAPPA |
| Electric control system | Hydraulic control valve: Netherlandish AMCA |
| Telecontroller: German NBB | |
| Voltage: 12V | |
| Two chain | Two chain: lgus (imported) |
| Diesel engine | Japanese Kubota diesel engine |
| Trailer Chassis | L*W*H:14100*2500*4000mm |
| Axles: 3*13 tons axles | |
| Tire: 12R22.5 tubless tire, 12 pcs | |
| Suspension:Heavy duty type mechanical suspension | |
| Kingpin:2 inch or 3.5 inch bolted type | |
| Landing gear: 28T | |
| Water-drenching device | |
| Spare parts | Imported from Swedish |
Description
1.Side loader can slide to load/unload 20ft,40ft container.
-Titan sideloader are widely used in ports, stations and yards for load/unload 20ft, 40ft ISO standard container.
2.High lifting capacity.
-Tian sideloader has the highest lifting capacity, staring at 37ton in the basic design and available with a full 40 ton of capacity.
3.Save time and improve efficiencies : With a TITAN 40ft Sidelifter Trailer , The trailer driver can load and unload the container in 5 minutes on his or her own, then the truck is on the road again. Without the need to wait for other heavy lifting equipment. This eliminates the cost associated with leaving trailers on site and increases the opportunities for the number of pick-ups and drop-offs in each cycle. It can also free up staff and equipment for other tasks, thus increasing efficiency and reducing operational costs.
