CLW9140
CLW Group
3 Axle 50000liter 10000gallon Fuel Road Tanker 40cbm Fuel Tank Trailer
Loading Capacity 40000liter 40cbm 50000liter 11000gallon 1200gallon
Loading Media: fuel, petroleum, oil, crude oil
Specification | ||
Main Dimensions | ||
Overall Dimension | 11400*2500*3750mm | |
Wheel Base | 6000+1310+1310mm | |
Tare Weight | 10300KGS | |
Loading Capacity | 40m3 | |
Tank Body | ||
Shape | Mono block Cylinder | |
Total Volume（m3） | 40CBM(40,000liters) | |
Tanker Body Material | 5mm carbon steel | |
End plate | 6mm carbon steel | |
Lifting Ladder | Including Top walkway and backside steel material | |
Manhole cover | Steel manhole cover, ∮500mm ,2 sets with 2 breather valves | |
Bottom Valve | 2 sets of API Pneumatic Bottom Valve, Pneumatic control | |
Discharging valve | 2set ∮100mm discharging valves | |
Compartment | 1 compartment | |
Discharging Pipe | 4”rubber hose, 2 pc, 6m long | |
Chassis | ||
Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | |
Axle | 3 axles | |
FUWA 13 Ton | ||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
King Pin | JOST brand 2” bolt-in king pin | |
Suspension | German design heavy duty mechanical suspension | |
Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |
Wheel rim | 8.25R22.5 wheel rim, 13 pieces including one spare | |
Tire | 11R22.5 with one spare tire, 13 pieces | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |
Accessories | One standard tool box | |

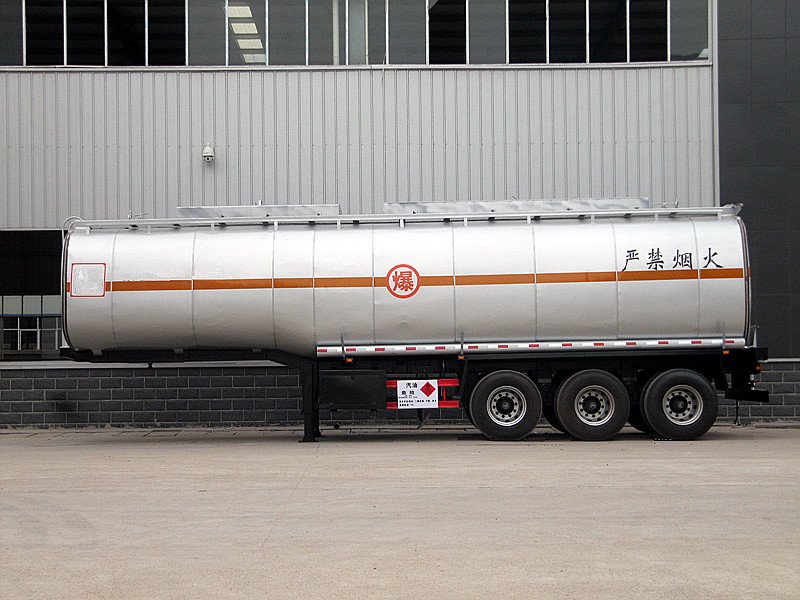

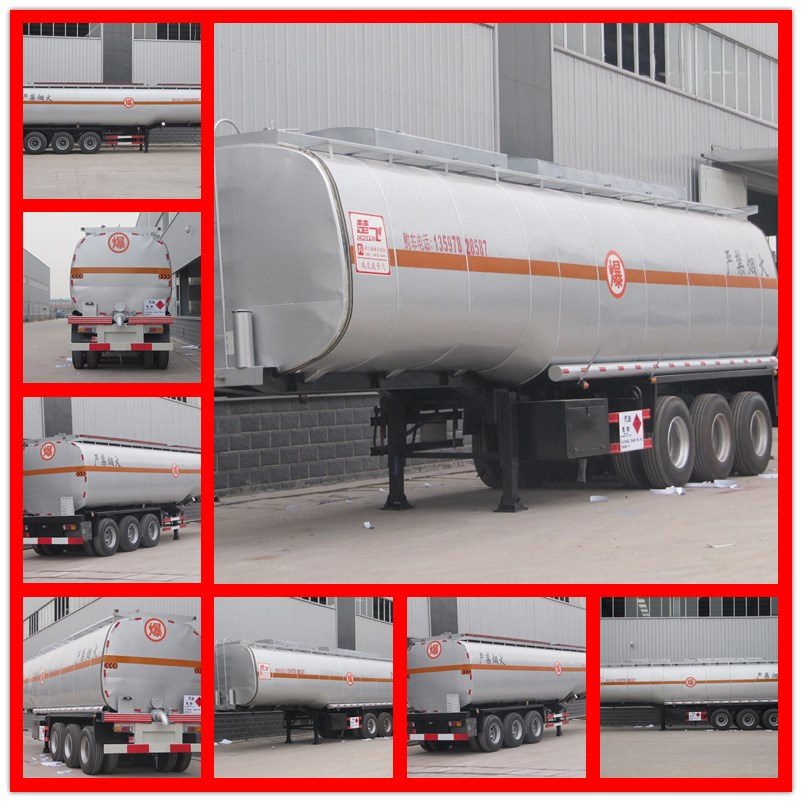

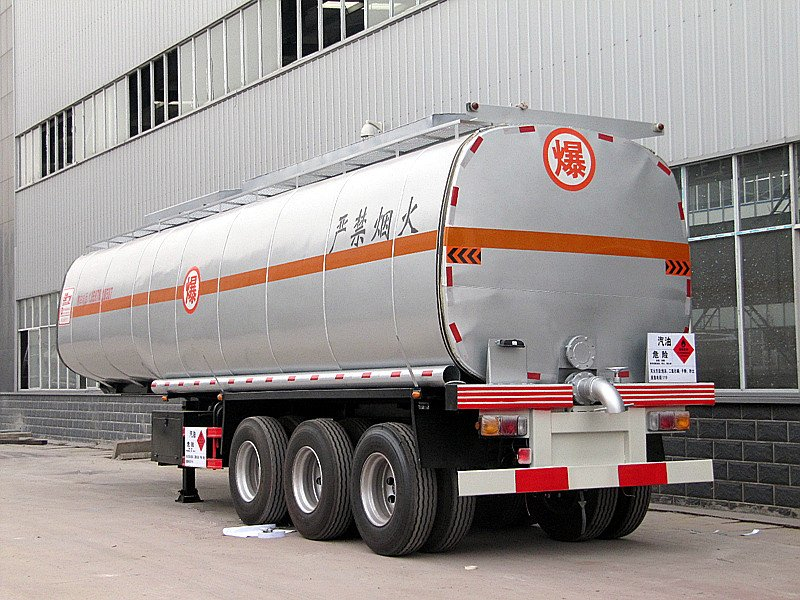

Picture for Reference
Company Information
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.
l More than 15 years' experience as a manufacturer
l Competitive Price and Excellent Quality
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 300 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
l Annual production value topped 240,000,000 US dollars per year
