CLW9140
Chengli Group

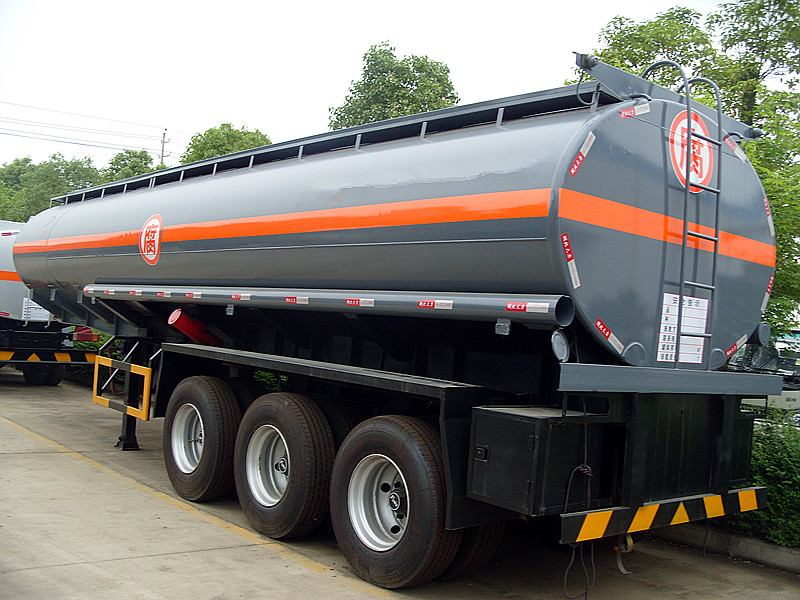

3axle 2axle 27000liter 27cbm chemical liquid CHL road tanker 38CBM Sulfuric Acid Tank Trailer
27m3 Chemical Liquid Tank 3 axel Trailer with Three 13 ton FUWA axles
Standard configurations:
1.Tank material: Q235-B (tank 5mm, head 6mm)
2. Tank interior: lining PE, thick 16mm
3. Head: water head
4. Steel plastic wave proof plate: double corrugated, surface lining plastic PE
5. Sub warehouse
6. Main valve: built in valve
7. Artesian mouth: after the end of a 3 inch artesian mouth, with PP ball valve
| Main Technical Parameters | ||||||
| Product model | CLW9400GHYC | |||||
| Curb weight | 9500Kg | |||||
| Fact load | 30500Kg | |||||
| Overall G.W. | 40000Kg | |||||
| Overall size | 10600×2500×3530mm | |||||
| Tank | ||||||
| Tank size | 10000×2500×1710mm | |||||
| Tank Inner size | 9800×2300×1510mm | |||||
| Tank material | Q235-B | |||||
| Tank volume | 27 m3 | |||||
| Tank shape | Oval | |||||
| Medium | Ammonium nitrate;German saltpetre | |||||
| Tank color | Any color customer like | |||||
| Tank thickness | Tank body:5mm; tank head:6mm | |||||
| Tank inside | 16mm PE | |||||
| Thickness of tank insulation | 100mm | |||||
| Protective material | Q235A carbon steel | |||||
| Reflecting marking | TM1200-1,HW1400 | |||||
| Head type | Hydraulic head | |||||
| Corrugated board | Double corrugated, surface lining plastic PE | |||||
| Warehouse | Whole type or seperate type according to your needs | |||||
| Main valve | Inside valve | |||||
| Artesian mouth | Two pcs of 3 inch artesian mouth in the left end and the right end of the trailer, with PP ball valves | |||||
| Running gear | ||||||
| Suspension | Leaf spring suspension | |||||
| Wheelbase | 4800+1310+1310mm | |||||
| ABS model | CM2XL-4S/2K(4S/2M) | |||||
| Tire type | 11.00R20 | |||||
| Tire number | 12 | |||||
| Springs | 8;8;8 | |||||
| Approach/departure angle | 18 | |||||
| Overhang F/R | 1840/1840mm | |||||
| Axis load | 24000( three axle group) | |||||
| Number of axles | 3 | |||||
| Axles | 13T Fuwa axles with ABS | |||||
| Axles support legs | Single motion lifting legs (Perfectly fit to various road conditions) | |||||
| Traction pin | 90# or 50# | |||||
| Spare Tire Rack | Chain type | |||||
| Tool box | 1 pcs | |||||
| Water box | 1 pcs | |||||
| Warrenty | 1 year | |||||
| Certification | CCC, ISO... | |||||
| Remarks | 1.We use steel plastic wave proof plate. It has the advantages of high strength,good anti impac, long life and etc. 2. Optional equipments: PTFE pump. | |||||
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles
for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology,
flawless inspection, advanced equipment, reliable quality and flexible modes of operation.
More than 15 years' experience as a manufacturer
Competitive Price and Excellent Quality
CCC, ISO, BV, ASME certification
Perfect after-sale service
Trucks covering more than 50 countries and regions
800 kinds of trucks and trailers
100 Senior welder and 15 senior engineers
Good cooperation with 30% regular customers
Annual production value topped 240,000,000 US dollars per year
Customized Truck & Trailer Solutions to Meet Your Requirements

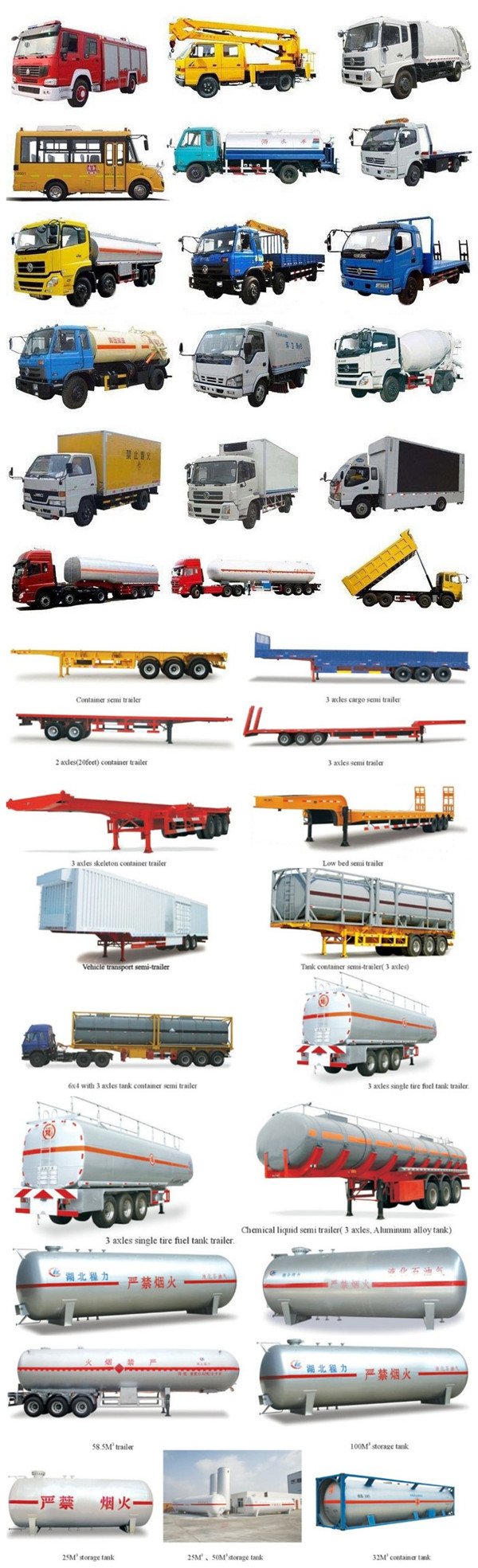

Products Catalog:
LPG Tank Truck Trailer/ Fuel Tanker Truck
Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
Truck with crane / Truck mounted crane
Dump Truck / Tipper Truck/Side Tipper/End Tipper
Fire Fighting Truck / Fire Truck / Fire Vehicle
Concrete Mixer Truck
Van truck / Blasting equipment transporter/ Refrigerated truck
Fecal suction truck / Sewage suction truck,
Cement Powder Tank truck/ Bulk cement truck
High-altitude operation truck,
Self-loading garbage truck, garbage compactor truck, sealed garbage truc
Tractor
High Pressure Cleaning Truck
Sweeper Truck
Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
