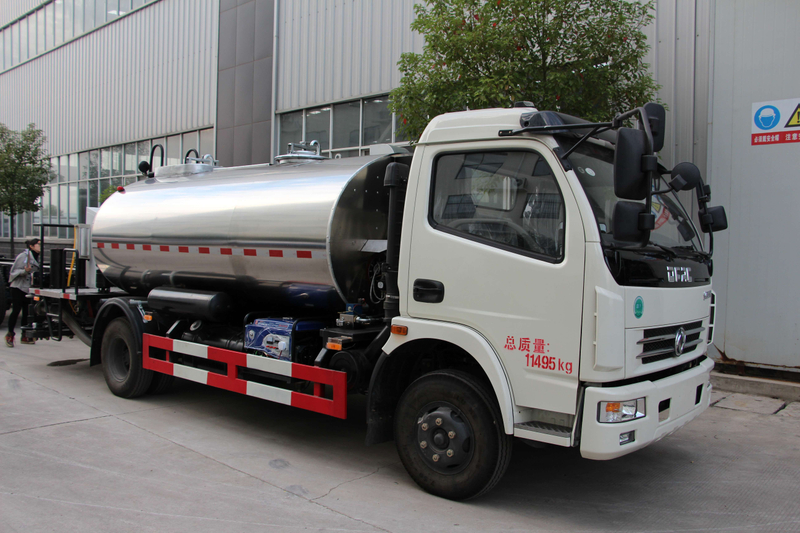

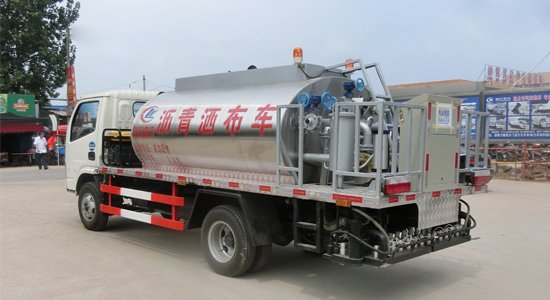

5Tons Asphalt Distributor Truck for Bitumen Distribution Truck for Sale
Spraying medium: hot asphalt,modified asphalt, emulsified asphalt ,rubber asphalt
Spraying width:2500-6000mm
Spraying amount:0.3-3.0L/m2
Spraying deviation:+/- 1.5%
Method of heating :Italy brand diesel generator
Asphalt tanker capacity:8000L-10000L
No. Of Spraying nozzles:48
Hydraulic system max pressure:15mpa
Transmission system :hydraulic system
Method of cleaning : diesel clean and high pressure air cleaning
Way of asphalt insulation :heat transfer oil insulation
Asphalt pump :European brand. Asphalt pump motor :European brand, Control system:European brand
Adventure of asphalt spray truck :
1 Main parts such as Hydraulic pump ,asphalt pump etc all adopted European famous brand
2 Asphalt pump adopted thermal conductive oil insulation ,conservation of energy
3 Easy to control
4 It is widely use for transportation and distribution of hot asphalt,modified asphalt
5 Two ways of cleaning asphalt pump and pipeline :diesel cleaning and high pressure air cleaning , it makes spraying nozzles and pipeline clean all the time .
6 Max spraying width 6m ,efficiency ,reliable quality with good performance.
Item No. | Parameters |
Chassis | |
Gross Vehicle Weight | 8275kg |
Curb Weight | 2230 kg |
Loading Weight | 5850Kg |
Wheel Base | 3800 mm |
Front/rear Tread | 1250/3050 mm |
Approach/Departure Angle | 23/10 degree |
Engine | CY4102 Diesel Engine, |
Engine horsepower | 120HP EURO III |
Displacement | 3856L (Diesel) |
Max Driving Speed | 95 km/h |
Tire | 8.25-16 (6 pieces+1piece spare tire) |
Asphalt Tank | 5 CBM |
Outside Material | Stainless Steel plate |
Insulation layer | ≤20℃/8h |
Hydraulic System | |
Hydraulic pump | CQB550-L |
Driving Motor | 05-110-BD31 |
Proportional Valve | EFBG-03-160-HF/Taiwan brand |
Shuttle Valve | Shanxi Yuci brand |
Overflow Valve | Shanxi Yuci brand |
Control System | |
Control System | CLW-48-01/Germany Siemens |
Control Method | Computer control |
Smart asphalt nozzle | 48 pcs |
Heating System | |
Heating method | Automatic heating by oil |
Burner | G20/Italy brand |
Radiator | Risheng brand |
Heat transfer oil pump | 40-25-160 |
Gasoline Engine | 5.5kw |
Spreading Width | 4500-6000mm |
Spreading Speed | 0.2~3.5L/min |
Spreading Precision | ±2% |
5Tons Asphalt Distributor Truck for Bitumen Distribution Truck for Sale
Spraying medium: hot asphalt,modified asphalt, emulsified asphalt ,rubber asphalt
Spraying width:2500-6000mm
Spraying amount:0.3-3.0L/m2
Spraying deviation:+/- 1.5%
Method of heating :Italy brand diesel generator
Asphalt tanker capacity:8000L-10000L
No. Of Spraying nozzles:48
Hydraulic system max pressure:15mpa
Transmission system :hydraulic system
Method of cleaning : diesel clean and high pressure air cleaning
Way of asphalt insulation :heat transfer oil insulation
Asphalt pump :European brand. Asphalt pump motor :European brand, Control system:European brand
Adventure of asphalt spray truck :
1 Main parts such as Hydraulic pump ,asphalt pump etc all adopted European famous brand
2 Asphalt pump adopted thermal conductive oil insulation ,conservation of energy
3 Easy to control
4 It is widely use for transportation and distribution of hot asphalt,modified asphalt
5 Two ways of cleaning asphalt pump and pipeline :diesel cleaning and high pressure air cleaning , it makes spraying nozzles and pipeline clean all the time .
6 Max spraying width 6m ,efficiency ,reliable quality with good performance.
Item No. | Parameters |
Chassis | |
Gross Vehicle Weight | 8275kg |
Curb Weight | 2230 kg |
Loading Weight | 5850Kg |
Wheel Base | 3800 mm |
Front/rear Tread | 1250/3050 mm |
Approach/Departure Angle | 23/10 degree |
Engine | CY4102 Diesel Engine, |
Engine horsepower | 120HP EURO III |
Displacement | 3856L (Diesel) |
Max Driving Speed | 95 km/h |
Tire | 8.25-16 (6 pieces+1piece spare tire) |
Asphalt Tank | 5 CBM |
Outside Material | Stainless Steel plate |
Insulation layer | ≤20℃/8h |
Hydraulic System | |
Hydraulic pump | CQB550-L |
Driving Motor | 05-110-BD31 |
Proportional Valve | EFBG-03-160-HF/Taiwan brand |
Shuttle Valve | Shanxi Yuci brand |
Overflow Valve | Shanxi Yuci brand |
Control System | |
Control System | CLW-48-01/Germany Siemens |
Control Method | Computer control |
Smart asphalt nozzle | 48 pcs |
Heating System | |
Heating method | Automatic heating by oil |
Burner | G20/Italy brand |
Radiator | Risheng brand |
Heat transfer oil pump | 40-25-160 |
Gasoline Engine | 5.5kw |
Spreading Width | 4500-6000mm |
Spreading Speed | 0.2~3.5L/min |
Spreading Precision | ±2% |
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.
l More than 15 years' experience as a manufacturer
l Competitive Price and Excellent Quality
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 300 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
lAnnual production value topped 240,000,000 US dollars per year
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.
l More than 15 years' experience as a manufacturer
l Competitive Price and Excellent Quality
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 300 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
lAnnual production value topped 240,000,000 US dollars per year
1. We are interested in your products and really want to buy, but how to guarantee the safety of the payment?
A: We company accept different payment ways, we will provide with proforma invoice before payment. We company is regular company with license and production certificate. We have export in many countries. You can also come to our company for visiting and you might be very confident to us.
2. Where is your company?
A: We company is located in South Suburb Chengli Special Automobile Park, Suizhou City, Hubei Province, China. You can easily find us on Google or other ways on the Internet. We welcome your visit here in the future.
3. What is the payment term:
A: FOB,CIF,DPA; T/T,30% in advance and 70% balance before shipping.
4. What is the warranty?
A:12 months since the equipment reach your country as there will be 1~2 month marine transport time.
5. What is the insurance of the safety when shipping?
A: Marine shipping insurance is a good guarantee.
6. What about the after sales?
A: 12 months warranty time and life-long vehicle parts supply.
1. We are interested in your products and really want to buy, but how to guarantee the safety of the payment?
A: We company accept different payment ways, we will provide with proforma invoice before payment. We company is regular company with license and production certificate. We have export in many countries. You can also come to our company for visiting and you might be very confident to us.
2. Where is your company?
A: We company is located in South Suburb Chengli Special Automobile Park, Suizhou City, Hubei Province, China. You can easily find us on Google or other ways on the Internet. We welcome your visit here in the future.
3. What is the payment term:
A: FOB,CIF,DPA; T/T,30% in advance and 70% balance before shipping.
4. What is the warranty?
A:12 months since the equipment reach your country as there will be 1~2 month marine transport time.
5. What is the insurance of the safety when shipping?
A: Marine shipping insurance is a good guarantee.
6. What about the after sales?
A: 12 months warranty time and life-long vehicle parts supply.
