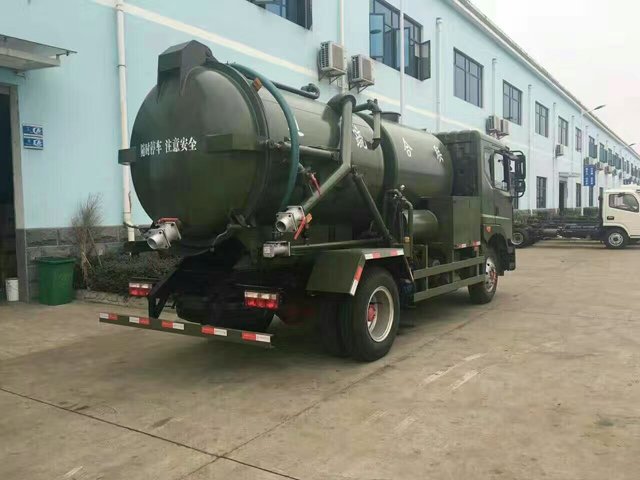

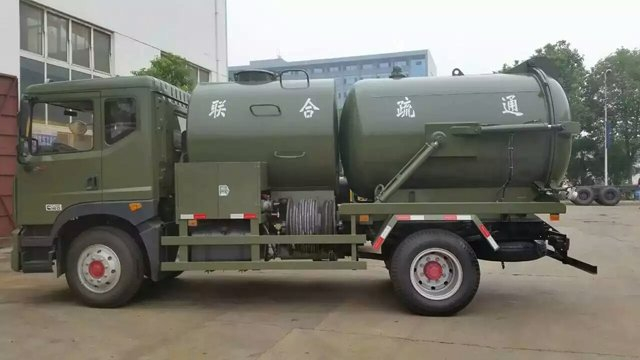

6 Wheels 8CBM 10CBM 8tons 10T High Pressure Combination Sewer Cleaning Truck
Speical Description:
1. It's used for urban sewer, all kinds of factory sewer pool cleaning.
2. High pressure water pump and Sewage suction pump can adopts China local brand or Italy brand.
3. Regarding of the chassis of this type sewer cleaning truck, we can adopts FOTON, FORLAND, DONGFENG, JAC, JMC, ISUZU, SINOTRUK, CAMC, SHACMAN etc for optional.
Technique Parameters:
Condition | New condition/Left and Right hand drive/4x2 | ||
Chassis | Brand | Dongfeng | |
Curb weight(kg) | 10500 kg | ||
Wheelbase(mm) | 4500 mm | ||
Dimensions(mm) | 7230×2495×3690 mm | ||
Front/Rear Axle loading(kg) | 6000/10000 kg | ||
2040/1860 mm | |||
Front/Rear overhang(mm) | 1480/2450 mm | ||
Approach/Departure angle(°) | 18/12 | ||
Max. driving speed(km/h) | 90 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6pcs with one spare tire | |
Specifications | 10.00-20 | ||
Transmission | Manual type, 8 Forwards and 2 reverses | ||
Cab | It can accommodate three people. With Air Conditioner | ||
Engine | Brand | Dongfeng Cummins | |
Fuel type | |||
Displacement(ml) | 5900 ml | ||
140 kw | |||
Horsepower(HP) | 190 HP | ||
Cylinder number | 6 | ||
Emission standard | Euro 3 | ||
Capacity(cbm) | 6.0 cbm | ||
Q235 carbon steel | |||
Thickness(mm) | 5.0 mm | ||
Water tank | Capacity(cbm) | 4.0 cbm | |
Tank material | Q235 carbon steel | ||
Thickness(mm) | 4.0 mm | ||
Brand | |||
Brand | Italy brand/China brand | ||
Remarks | 1, High pressure water hose 2, High pressure cleaning nozzle(Italy brand/China brand) 3, Hydraulic Control Suction Hose is optional | ||
