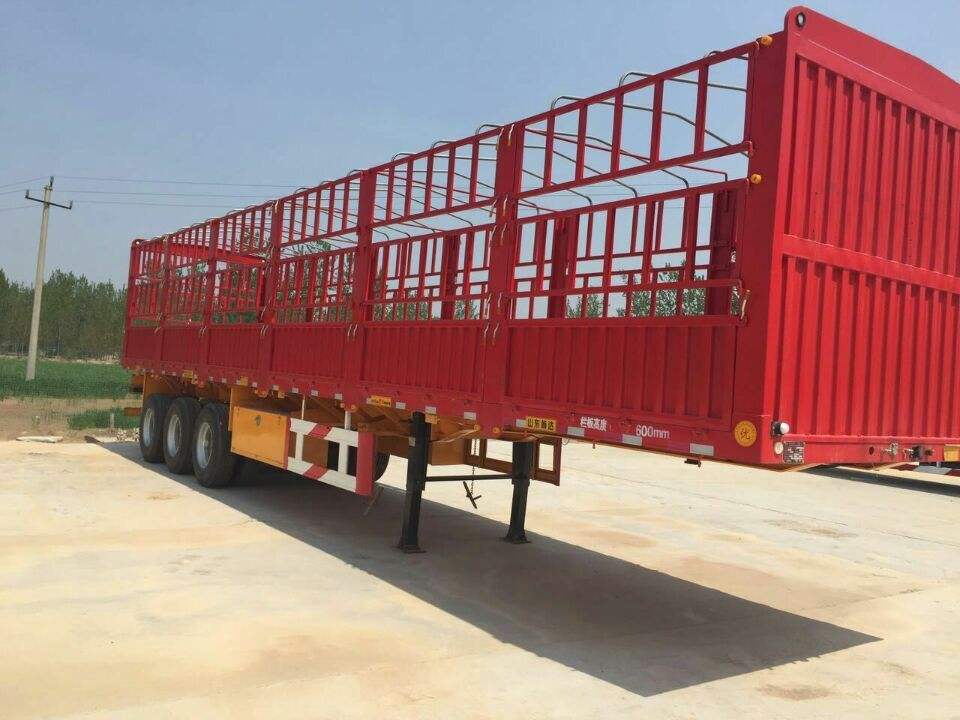

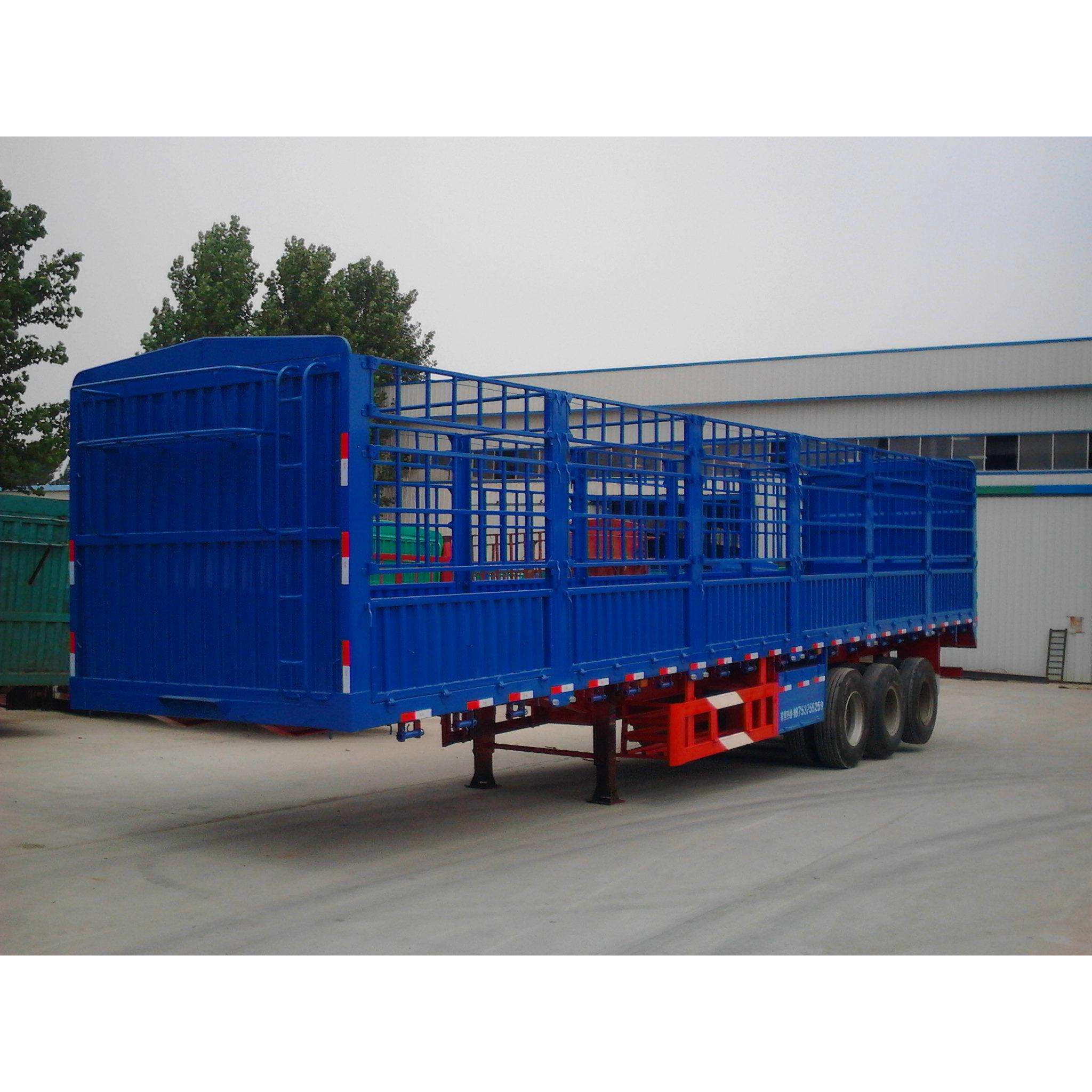

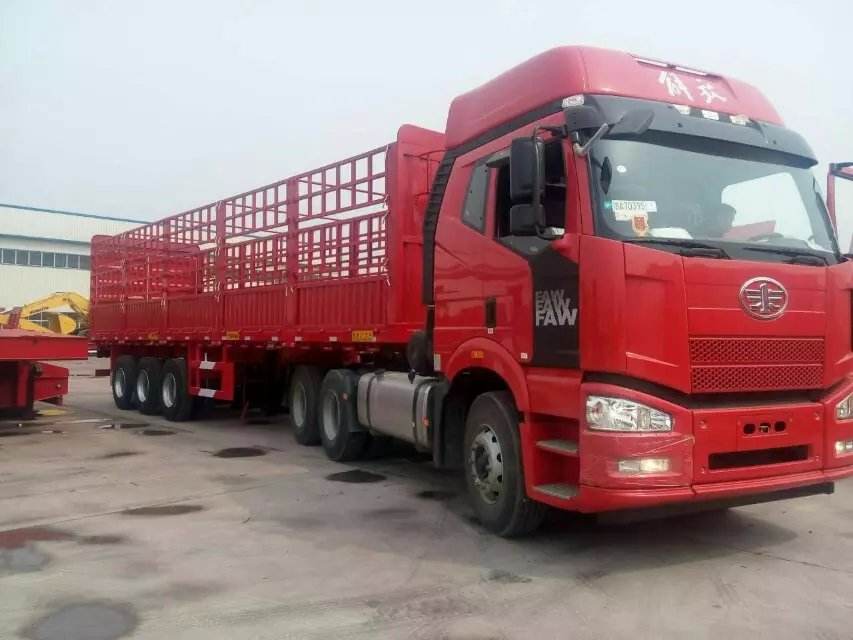

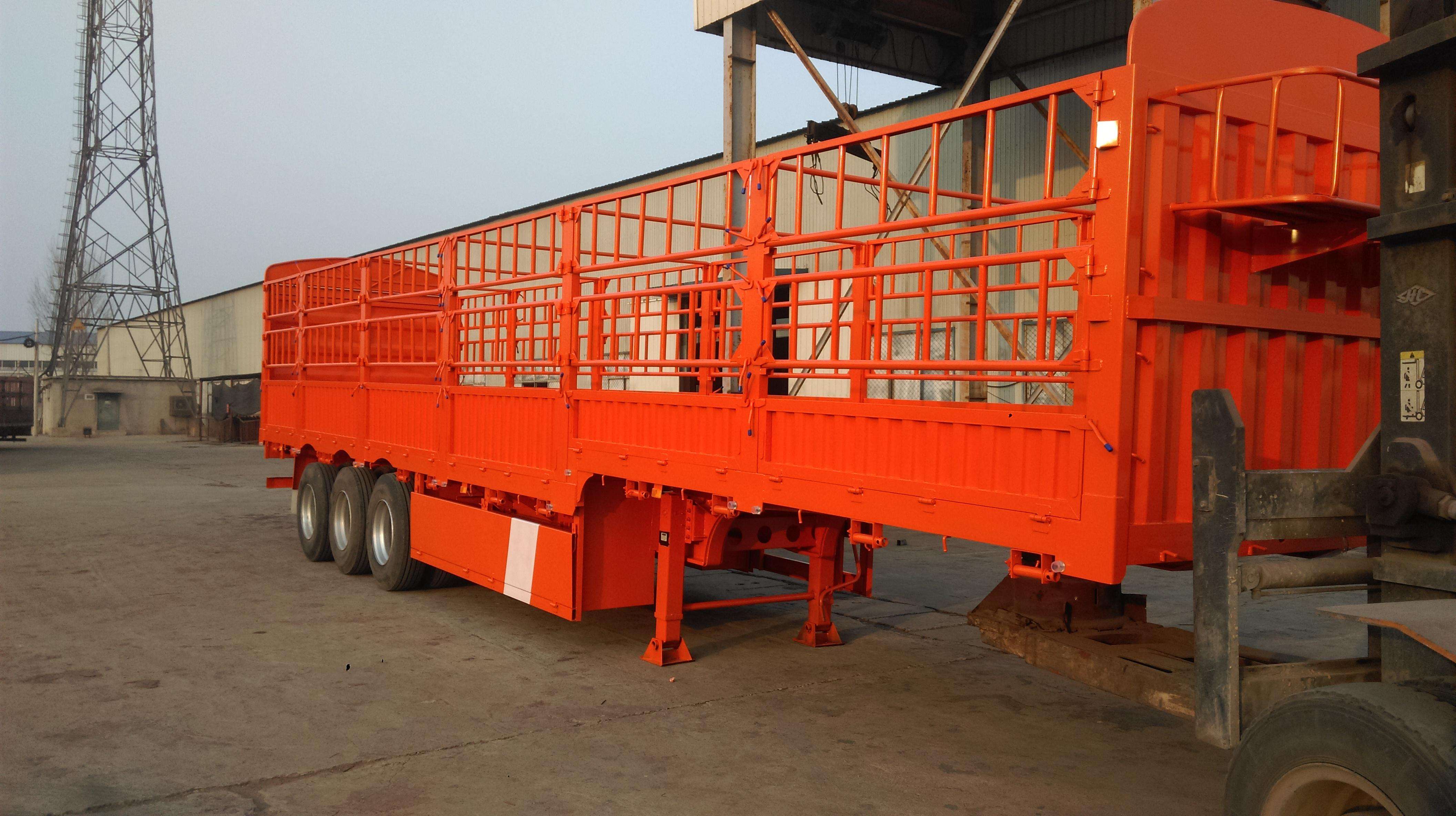

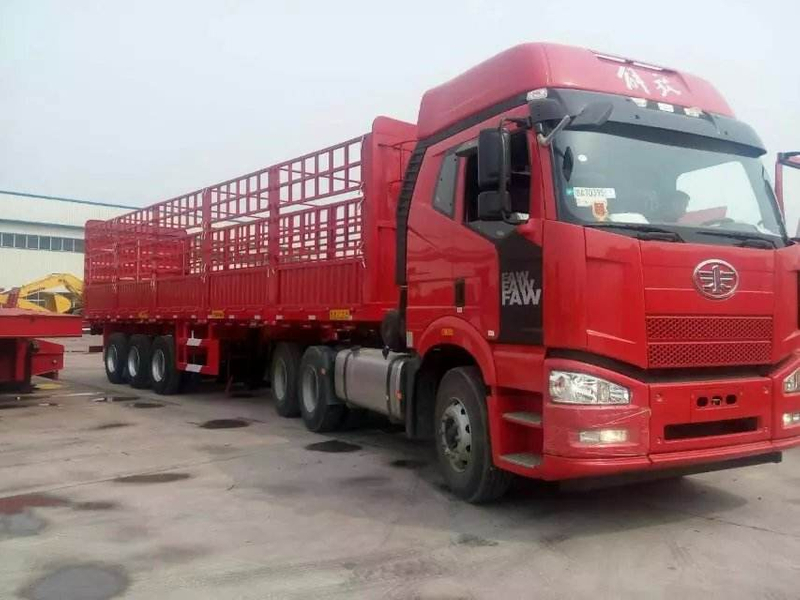

Best quality heavy duty carbon steel Warehouse Trailer Truck for sale
About Best quality heavy duty carbon steel Warehouse Trailer Truck for sale
The body accessories of the trailer using aluminum alloy material, not only durable, corrosion resistance is stronger, and trailer weight is lighter.Beam used special steel material, besides, used the beam shaped hole ,rational optimized the beam structure, enhanced the beam strength. The design of the beam shaped hole released the internal stress of the beam welding, enhance the carrying capacity of the beam, and reduce the weight of beam. Used high strength and quality suspension and leaf spring.
Four features of trailer
1.Reasonable design, simple and practical structure, convenient disassembly, fully reduce the weight of the trailer body under the load.
2. Can get a balanced consideration of the intensity, rigidity and toughness of the frame, having the merits of large capacity and no permanent distortion.
3.The frame adopts the shot blasting, the beam pass through the longitudinal beam and weld integral.
4.Reduce the friction sliding distance between tire and ground, reduce the tire wear effectively.
Product Information | ||||
Product | Warehouse semi trailer | |||
Brand Name | CLW | |||
Place of Origin | Hubei province, China | |||
Color | Any color will be available | |||
Manufacturer | Chengli Special Automobile Co., Ltd | |||
Specifications | ||||
Parameter | ||||
Outside Dimensions (L*W*H) | (6000-17000)*2500*1550mm | |||
Rated Load | 45000 kg | |||
Tare Weight | 7000 kg | |||
Wheel Base | 8390+1310+1310 (mm) | |||
Twist lock No | 12 | |||
Running Gear | ||||
Tires | specification | 12R22.5-18 | ||
No. of tires | 8/12/16 | |||
Spare tire carriers | 1 or 2 | |||
Axles
| Brand | FUWA (BPW optional) | ||
No. of axles: | 2/3/4 | |||
Axle-load | 13000kg | |||
Wheel rim | 7.50-20 rim or 8.00 | |||
Suspension | rigid suspension,10 pcs leaf-spring | |||
Brakes | brand | TKL brand | ||
Brake chamber | double air chamber | |||
System | Dual line braking system /ABS | |||
Under Frame | ||||
Departure Angle | 16 | |||
Front/Rear Overhang | 1890mm | |||
Main Beam | material | I beam ,Q345B, automatic submerged arc welded | ||
specification | Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm | |||
Cross Beam material | Q235B | |||
Side beam | Channel steel | |||
Plate form | Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm) | |||
King Pin | 50# or 90# | |||
Landing gear | 28Ton | |||
Accessory | One tooling box with a set of standard trailer tool | |||
Electrical | ||||
Voltage | 24V | |||
Receptacle | 7 ways (7 wire harness) | |||
Lights | Front corner marker lamp :red ;reflector lamp :white | |||
Side marker :orange | ||||
Rear lamp :red; rear reflector :white; turn single lamp :orange | ||||
Painting ,marking and side guard can according to the customer’s requirement | ||||
Any question, please feel free to contact with us!
