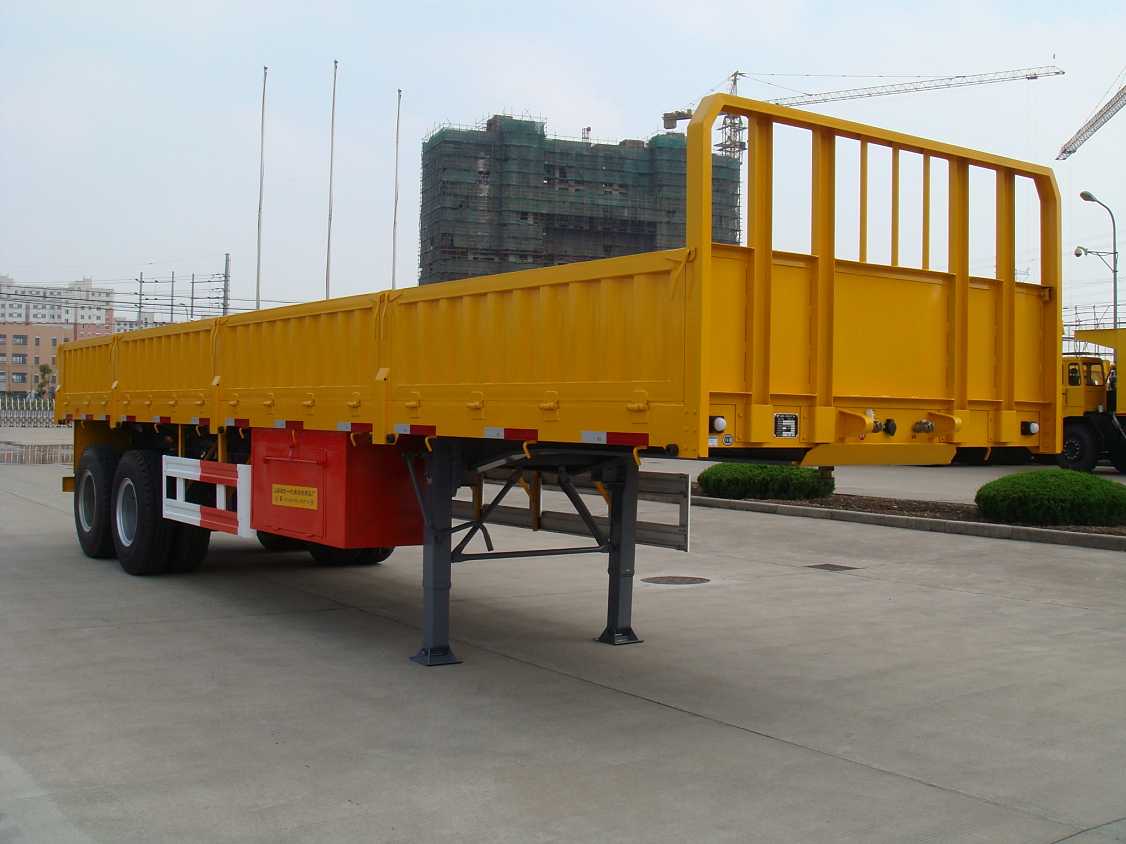

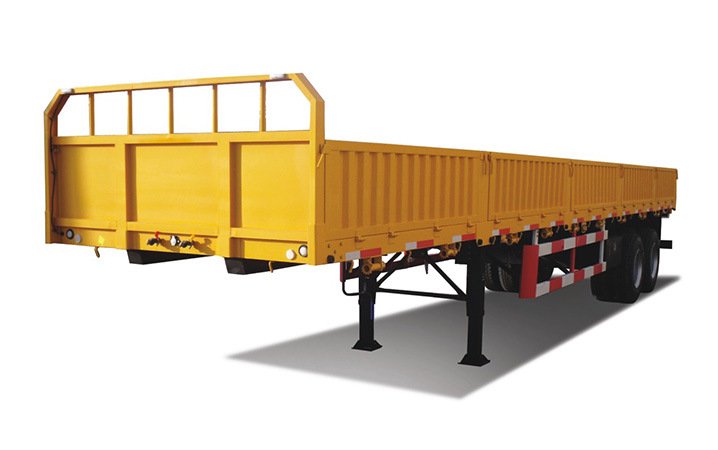

CLW Brand 50 tons cargo semi trailer for logistics
We always understand your requirement: Maximize every space, means extra profit for your business. No matter what you are transporting - large volume, combined goods or heavy load, our Cargo Semitrailer always wise choice for you. Flexible transport solution for wide range of products that will benefit every single kilometre you travel.
We offer range of customisations on Cargo Semitrailer, from your material requirement to operating features. Your requirements will be handling in details and we always ready for listening on what you say.
The design of Cargo Semitrailer also accommodate to rigid truck.
| Specifications | |
| Tare Weight | (Semi Trailer)About 7.1T |
| Dimension | 12450×2490×1575mm( outside dimension,The exact size depends on the final design.) |
| Loading Capacity | less than 45 tons |
| Bottom Plate | Thickness: 3mm checkered plate /Q235 steel |
| Axle | 13 T/16T, FUWA /BPW /Huajing Brand two or three axles |
| Rim | 9.00-22.5, 13pcs |
| Tire | 12.00R22.5/ 315 80R22.5, 13pcs |
| Suspension | Mechanical suspension (German or American type) or air suspension (Chinese brand or BPW brand ) |
| Spring leaf | 90(W)mm×13(Thickness)mm×10 layers or 100mm×12mm×12 layers |
| King pin | JOST brand 2.0 or 3.5inch (bolted or welded type) |
| Support leg | JOST brand C200T or Chinese brand 28Tons (Double speed) |
| Main beam | Height: 500mm Top plate: 14mm Middle Plate: 8mm; Bottom Plate is 16mm; Material: Q345B Steel |
| Side beam | 16mm or 18mm steel channel (Material: Q235steel ). |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); 45L air tanks |
| Twist lock | 4, 8, or 12 sets (lifting or screw Type) |
| ABS | Optional |
| Valve | WABCO valve |
| Light | LED light (specially intended for oversea market ) |
| Voltage | 24V |
| Receptacle | 7-pin Socket (for 7 wire harness) |
| Tool box | 1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.) |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
| Shipping Terms | By bulk cargo carrier, RORO or 40HQ container. |
Any question, please feel free to contact with us!
