CLW
CLW
Cabin | HOWO 76 Standard Cab | |||
With two bunks, 70° hydraulically tillable to the front as attached photo for ref. | ||||
Vehicle Main Dimensions | (L x W x H)mm | 8545x2500x3200 | ||
Wheel base (mm) | 3825+1350 | |||
Wheel track (front/rear) (mm) | 2022/1830 | |||
Approach/Departure angle(°) | 19/23 | |||
Weight in KGS | Tare Weight | 12270 KG | ||
Loading Capacity | 12600 | |||
Front axles loading capacity | 1x9000 | |||
Rear axles loading capacity | 2x16000 | |||
Max. driving speed(km/h) | 75 | |||
Engine | Brand | Sinotruk | ||
Model | WD615.69 | |||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
Horse Power(HP) | 336hp | |||
Emission standard | Euor II | |||
Gear box | HW19710, 10 Forwards gear & 1 reverse | |||
Clutch | Reinforced diaphragm clutch, diameter 430mm | |||
Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |||
Fuel tank (L) | 300 | |||
Tire | 12.00R20 All steel radial tire is available | |||
Brakes | Service brake: dual circuit compressed air brake | |||
air operating on rear wheels | ||||
Auxiliary brake: engine exhaust valve brake | ||||
Back crane | Max. Capacity (at Min. arm length ) | 3186KGS | ||
Min. Capacity (at Max. arm length) | 800 KGS | |||
Working Diameter | 5700 mm | |||
Max. arm length | 7000 mm | |||
Lifting diameter | 800 mm |
Cabin | HOWO 76 Standard Cab | |||
With two bunks, 70° hydraulically tillable to the front as attached photo for ref. | ||||
Vehicle Main Dimensions | (L x W x H)mm | 8545x2500x3200 | ||
Wheel base (mm) | 3825+1350 | |||
Wheel track (front/rear) (mm) | 2022/1830 | |||
Approach/Departure angle(°) | 19/23 | |||
Weight in KGS | Tare Weight | 12270 KG | ||
Loading Capacity | 12600 | |||
Front axles loading capacity | 1x9000 | |||
Rear axles loading capacity | 2x16000 | |||
Max. driving speed(km/h) | 75 | |||
Engine | Brand | Sinotruk | ||
Model | WD615.69 | |||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
Horse Power(HP) | 336hp | |||
Emission standard | Euor II | |||
Gear box | HW19710, 10 Forwards gear & 1 reverse | |||
Clutch | Reinforced diaphragm clutch, diameter 430mm | |||
Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |||
Fuel tank (L) | 300 | |||
Tire | 12.00R20 All steel radial tire is available | |||
Brakes | Service brake: dual circuit compressed air brake | |||
air operating on rear wheels | ||||
Auxiliary brake: engine exhaust valve brake | ||||
Back crane | Max. Capacity (at Min. arm length ) | 3186KGS | ||
Min. Capacity (at Max. arm length) | 800 KGS | |||
Working Diameter | 5700 mm | |||
Max. arm length | 7000 mm | |||
Lifting diameter | 800 mm |

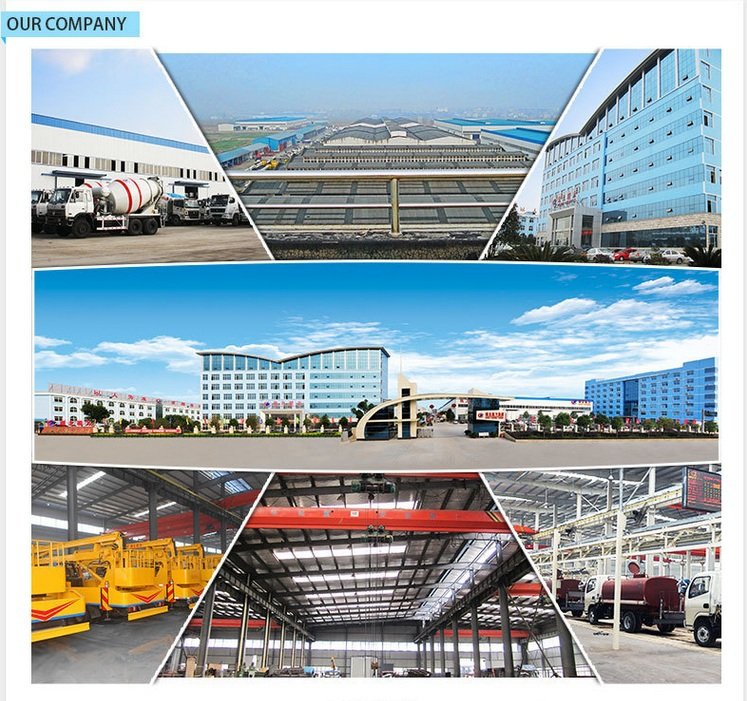

ChengLi Special Automobile Corporation Limited, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
· Established from 2004.
· 12 independents workshops.
· 1000 sets of equipment, 25 assemble lines.
· 300 senior engineers and technicians. About 8000 workers.
· 380kinds of trucks and semi-trailers.
· 20 years wholesale experience
· Turnover 250 million and Export 20million annually
· Turnover 2 billion trucks and semi-trailers annually.
· Truck Sold to 80 countries
· Cooperates with DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
We promise that all the products that are adapted and sold by us can get one-year services and maintenance for the life. What's more, the service can be dealt with in 48 hours. ChengLi is willing to serve for you, and is looking forward to your coming to visit our company.
ChengLi Special Automobile Corporation Limited, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
· Established from 2004.
· 12 independents workshops.
· 1000 sets of equipment, 25 assemble lines.
· 300 senior engineers and technicians. About 8000 workers.
· 380kinds of trucks and semi-trailers.
· 20 years wholesale experience
· Turnover 250 million and Export 20million annually
· Turnover 2 billion trucks and semi-trailers annually.
· Truck Sold to 80 countries
· Cooperates with DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
We promise that all the products that are adapted and sold by us can get one-year services and maintenance for the life. What's more, the service can be dealt with in 48 hours. ChengLi is willing to serve for you, and is looking forward to your coming to visit our company.
Q1. What is your terms of packing?
A: Waxed before shipping
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance. or L/C or CASH or paypal.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q8. What's your after-sale service?
A: Oversea engineers are available. 1 year waranty.
Q1. What is your terms of packing?
A: Waxed before shipping
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance. or L/C or CASH or paypal.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q8. What's your after-sale service?
A: Oversea engineers are available. 1 year waranty.
