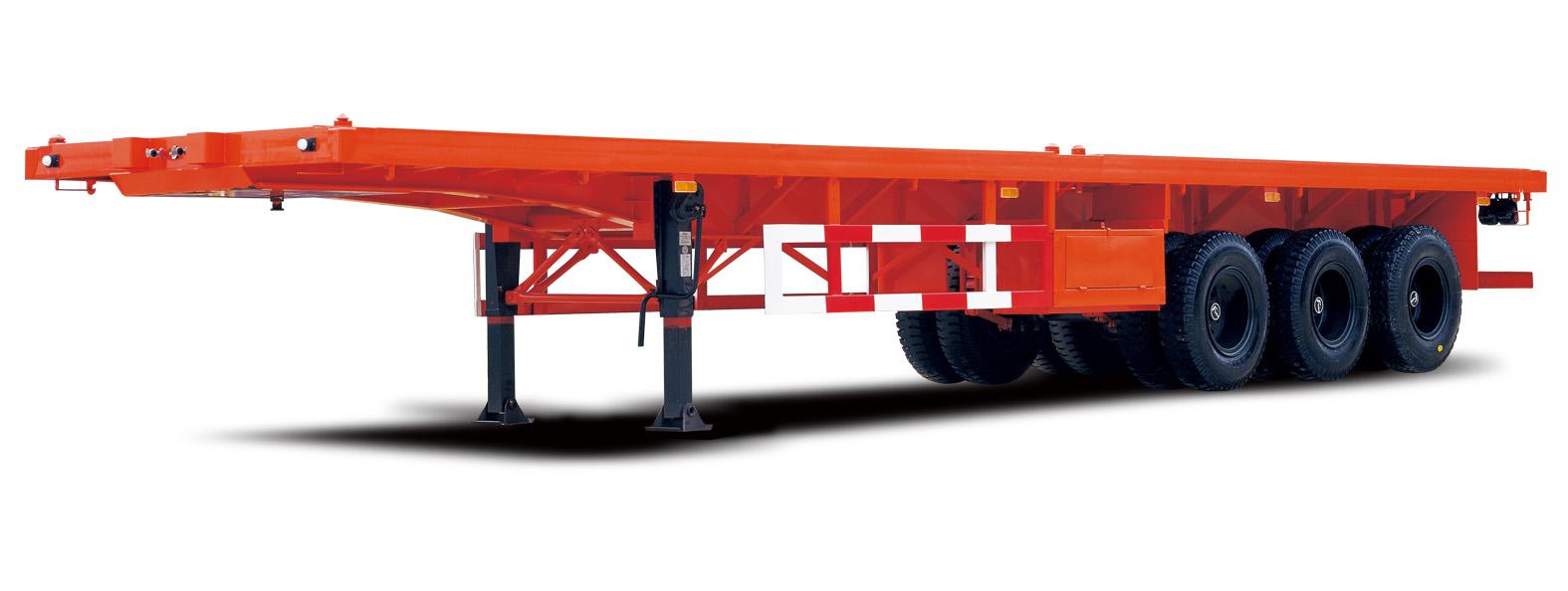

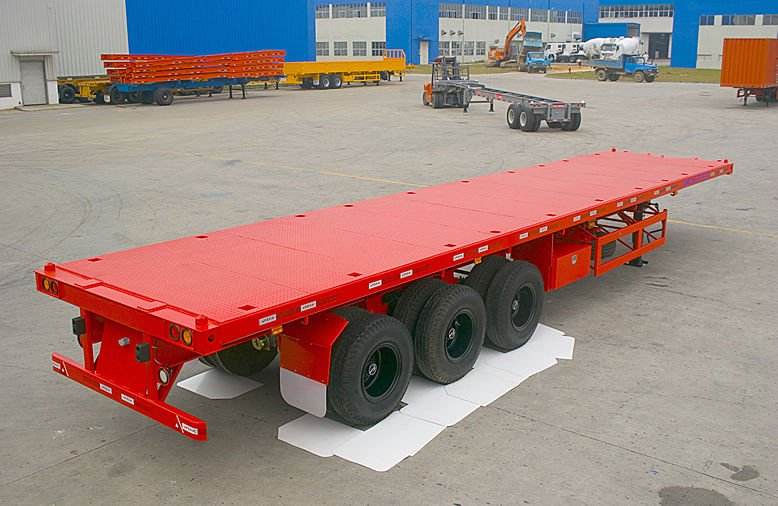

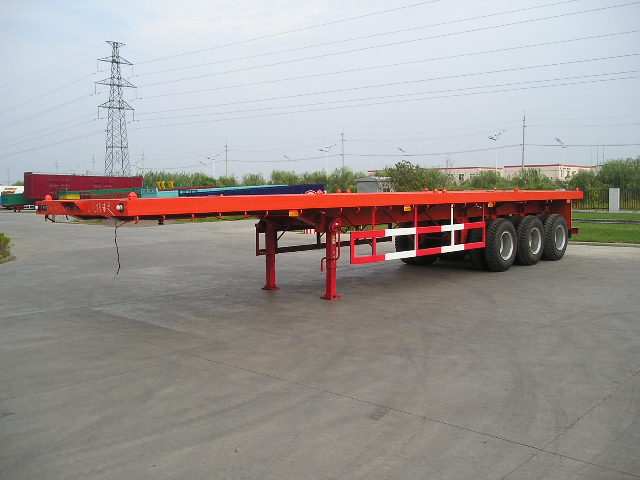

Cheap price ISO 20ft 40ft container trailer truck
Looking for simple and easy-to-operate skeleton semitrailer? We manufacture Skeleton Container Semitrailer for carrying 20’, 40’ AND 45’ ISO container that suitable for short or long distance travel.

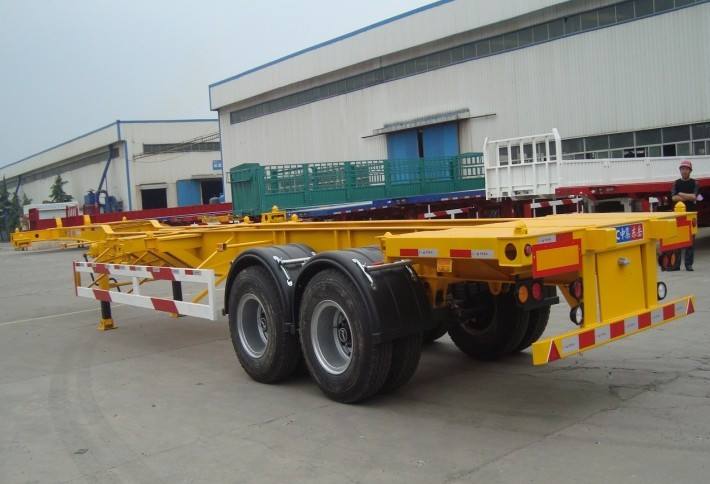

• 20Ft Skeleton Container Semitrailer
Design to cater for fast delivery of 20’ containers in the short travel distance. Shorter overall wheelbase enables easy manoeuvrability in the narrow road.
• 40Ft Skeleton Container Semitrailer
Semitrailer provides the capacity to carry one unit 40’ container or two unit 20’ container. It’s offer flexibility to the operator to take on both size of the container.
• 45Ft Skeleton Container Semitrailer
Ideal semitrailer design length to accommodate most common container size, 20’, 40’ and 45’. Commonly used for long travel time, such as cross border delivery between Thailand, Malaysia and Singapore.
Specification for Cheap price ISO 20ft 40ft container trailer truck
Gross Weight | About 5.5 tons or 3.2 tons |
Outer side dimension (mm) | 12450 × 2490 × 1557 (three or two axles) 40FT 7160 × 2490 × 1557 (two axles) 20FT |
Loading Capacity (Ton) | ≤ 45 T (40FT) ≤30T (20FT) |
AXLES | 13 T /PER , FUWA Brand, BPW Brand, or Huajing Brand |
Tire | 12.00R22.5 or 315/80R22.5 China Brand or According to Customer requirement |
Rim | 9.00-22.5 China Brand |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel . |
Side beam | 16mm or 18mm channel steel ( Material is Q235steel ). |
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); one piece of 45L air tanks |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve | WABCO valve |
ABS | Optional |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | Transport by bulk cargo carrier, RORO or 40HQ container. |
Any question, please feel free to contact with us!
