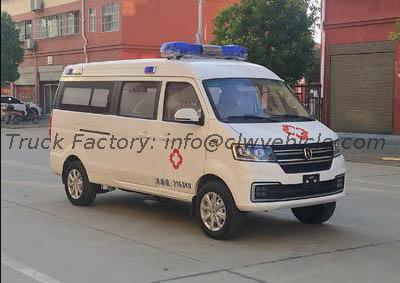

Cheapest Diesel Emergency Rescue Medical Transport Ambulance

width（mm）

1920

height（mm）

2480

seat

5-7

Medical warehouse parameters

length（mm）

3200

width（mm）

1700

height（mm）

1650

engine

model

diesel engine

power system

diesel engine

power(kw/rpm)

100

Chassis configuration

Gearbox

5-speed manual

Service brake

Disc / drum

steering system

Mechanical hydraulic, hydraulic power steering

Antilock

ABS

Suspension system

Independent suspension / leaf spring

Tires

195R15C

Warning, alarm system

1

Strobe light

LED white and blue two

4

Each

2

Siren

Power 100W with speaking function

1

Each

3

Exterior decoration

Contains color bars, cross marks, snake marks, hospital names, etc.

1

set

4

Long row of police lights

LED blue

1

set

Oxygen supply and power supply system

1

oxygen cylinder

10L, nominal pressure 15MPA

2

Each

2

Oxygen terminal

National standard, quick plug-in

2

Each

3

Sine wave inverter

500W sine wave with charging function

1

set

4

Multifunctional socket

200V and 12V multifunctional combination socket, AC / DC dual-purpose socket

2

teams

Lighting and disinfection system

1

flashlight

Two 12V LED lights

2

light

2

Disinfection lamp

UV disinfection lamp with delay function

1

light

Medical and ambulance system

1

Automatic loading stretcher

Made of high-strength aluminum alloy, PVC waterproof foam mattress, adjustable backrest, can bear 250KG

1

Each

3

Intermediate partition wall assembly

Medical PVC light environmental protection material

1

set

4

Oxygen cabinet

Original car interior, one-time molding of whole PVC board, waterproof, antiseptic, antibacterial, easy to clean

1

set

5

Medicine cabinet

6

Locker

7

Medical warehouse interior

8

Medical warehouse floor

PVC floor leather for ambulance

1

set

Air conditioning and ventilation system

1

High power cold and warm air conditioner

Split independent air outlet

1

set

Seats and auxiliary systems

1

Fire extinguisher

Dry powder

1

Each

2

Dirt bucket

stainless steel

1

Each

3

safety hammer

Emergency escape

1

Each

4

Glass window film

3/2 matte film

1

set

5

Seat

Blue skin pack

1

set

GVW(kg)

3499

Curb weight(kg)

2500

Front overhang/ Rear overhang

993/1247mm

Front wheel tread/ Rear wheel tread

1740/1704mm

Seating capacity

5-8

Engine model

BJ

Fuel type

Gasoline

Displacement (L)

2.780

Power (kw)

76

Fuel type

Gasoline

Emission

Euro IV

Max. speed (km/h)

120

Brake system

4 wheels disc brake

Air conditioner and lighting system

1, Vehicle-mounted air conditioner in driver's cab

2, Vehicle-mounted air conditioner in Patient's compartment

3, Ventilation fan mounted on the roof of Patient's compartment

4, Illumination lights in Patient's compartment

5, Spotlight lights in the roof of Patient's compartment

6, Ultraviolet radiation disinfector light

Central power supply distribution system

1, Automatic charging system

2, 10m mobile cable

3, 12V outlets in Patient's compartment

4, 220V outlets in Patient's compartment

5, 230V/16A waterproof outside outlet with protection cover

6, 12V DC power-supply system

7, Intelligent inverted power supply system(12V -220V)

8, Central control system

Emergency alarm system

1, Control plate of siren and alarm lamp mounted in driver's cab

2, 100W loud speaker

3, Blue Flashing alarm light bar mounted on the front roof of vehicle

4, 2 Blue Flashing alarm lights mounted on left and right side of vehicle

5, Round cylinder alarm lights on the rear roof of vehicle
