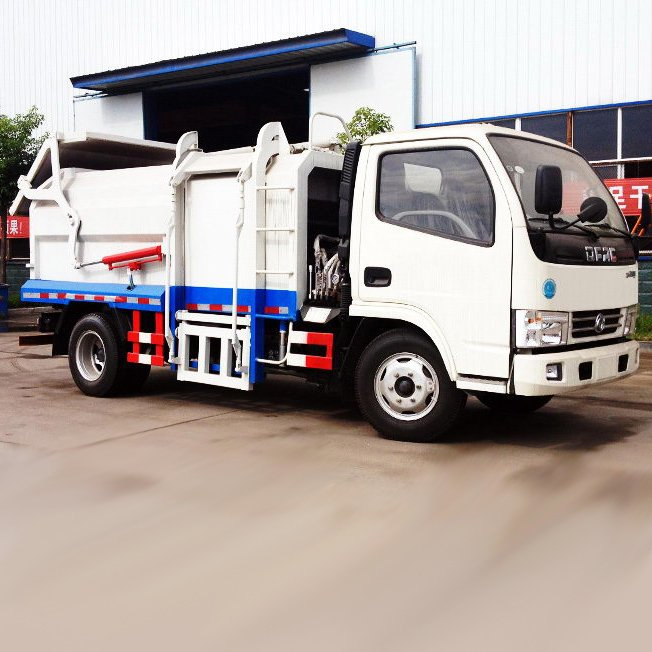

DONGFENG 120hp 4X2 6CBM Side Loading Garbage Compactor Truck

This compression garbage truck is our company independent research and development of patented
products , the environmental protection, light, brake, axial load distribution, side impact are carried on the
strict examination in the manufacture and inspection stage, its also passed 47 technology parameters and
5000 km road test detection.

The vehicle body is arc-shaped, featuring simplicity and good appearance. A slide guide moving cover
is installed at the back to keep the complete closure of the dustbin. The body is made of high strength
(4 mm) weathering resistant steel, featuring light weight, good reliability, erosion resistance and high
compression ratio.

Quantity:
  • CLW
  • CLW

Condition

New condition/Left and Right hand drive/4x2

Chassis

Brand

Dongfeng

Curb weight(kg)

7595 kg

Wheelbase(mm)

3800 mm

Dimensions(mm)

7435*2340*3000 mm

Front/Rear axle loading(kg)

4280/8850 kg

Front/Rear overhang(mm)

1230/2405 mm

Wheel track (front/rear) (mm)

1836/1680 mm

Approach/Departure angle(°)

28/14

Max. driving speed(km/h)

90 km/h

Clutch

Reinforced diaphragm clutch

Brakes

Service brake: dual circuit compressed air brake                                                                                     Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Quantity

6pcs with one spare tire

Specifications

8.25-16

Transmission

Manual type, 5 Forwards and 1 reverse

Cab

Single row seat, Tiltable. It can accommodate three people. With air conditioner.

Engine

Brand

Dongfeng ChaoYang

Fuel type

Diesel

Displacement(ml)

3856 ml

Power(kw)

88 kw

Horsepower(HP)

120 HP

Cylinder number

4 pcs

Emission standard

Euro 3

Upper

Garbage Tank

Tank material

Q235 Carbon steel

Tank capacity(cbm)

6.0 CBM

Ways of Loading

Side Loading

Dispensing System

1. Equipped with air-tight dustbin, hydraulic system and operating system.

2. Automatic loading, compressing and discharging, all handled by 1 person

3. Sewage water collection tank to avoid any pollution during handling.

4. Large Pressure, Good Leakage Proof, Convenient Operation and Dependable Security

5. Electrical Control Panel for compacting system.

Remarks

Color is optional


factory air scape(1)

Chengli Special Automobile Co., Ltd. is a big enterprises production of various types of specialized vehicles which is appointed the Ministry of Industry and Information Technology of China. It is located in the southern suburbs of Suizhou City, Hubei Province, China. It is founded in September 16th, 2004. It now covers 530 acres, the existing building area is 23000m2.



We have roundly passed ISO9001-2008 quality management system, ISO14001 environmental management system, ISO18001 Occupational Health and Safety Management System, the National military standard certification GJB9001B-2009 and 3C (China Compulsory Certification), with independent trade import and export rights. We also get ADR certificate and ASME certificate. Our company is one fo China top 500 enterprise and Hubei top 100 enterprice.



Our products have exported to Africa, South America, Middle East etc. and other countries.

chengli CLW factory
