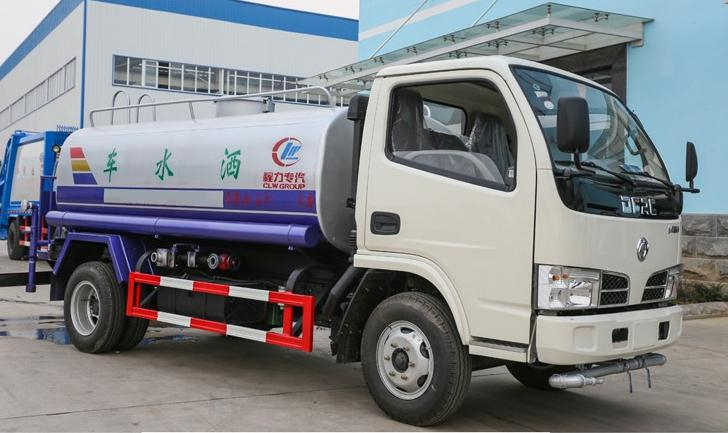

Dongfeng 5tons LHD 4*2 water tank truck
Specification of Dongfeng 5cbm 6 forwards LHD 4*2 water tank truck | |||||
Condition | Driving Mode | 4×2,LHD | |||
Chassis | Brand | Dongfeng | |||
Dimension(mm) | 5995*1980*2255 | ||||
Wheelbase(mm) | 3300 | ||||
Curb weight(kg) | 2900 | ||||
Approach/departure angle(°) | 19/18 | ||||
Front /rear overhang(mm) | 1032/1663 | ||||
Wheel track(front /rear)(mm) | 1580/1595 | ||||
Axle load(front /rear)(kg) | 1795/2695 | ||||
Number of springs | 8/9+5 | ||||
Max driving speed(km/h) | 90 | ||||
Tire | Quantity | 6pcs+1 | |||
Specification | 7.00-16 | ||||
Cab | 2 passengers | ||||
Model | CY4102BQ | ||||
Maximum horsepower(HP) | 96 | ||||
Max output power | 70.6kw | ||||
Displacement | 3.856L | ||||
Intake form | inhale naturally | ||||
Cylinder number | 4 | ||||
Fuel type | Diesel | ||||
Cylinder arrangement | inline | ||||
Maximum torque | 245N.m | ||||
Rated speed | 3200rpm | ||||
Maximum torque speed | 2200rpm | ||||
Engine size | 921*651*751mm | ||||
Bore diameter x stroke | 102*118mm | ||||
Engine net weight | 330kg | ||||
Emission standard | Euro 2 | ||||
Gearbox | 6 forward and 1 backward | ||||
Water Tank | |||||
Tank | Volume | 5000L | |||
Material | Q235A Carbon steel | ||||
Thickness(mm) | 5 | ||||
Shape | Ellispe or Square Round | ||||
compartment | Each Compartment equipped with a manhole and anti-wave plate. | ||||
Standard Equipment | 1. Equipped with front,rear,side sprinkler (sprinkling width>14m )
2.Equipped with rear working platform with water cannon which can be turned all-round (range>28m),can be adjusted into flinging, heavy rain,light rain, drizzle model, with security barrier.
3.Equipped with CLW pump(suction lift>6m)
4.Equipped with fire valve, water valve, and filter gauze | ||||
Optional Equipment | 5. Firefighting pipe 6. Firefighting Pump 7.The painting | ||||
Details:
Advantages:
1) Dongfeng famous brand water spraying truck
2) Volume of tank: 5cbm water spraying truck
3) Low oil consumption with good economic water spraying truck
4) Chinese famous brand pump water spraying truck
5) High-pressured Sprinkler, spraying of water to be possible to adjust columnar and the fog shape water spraying truck
6) Optional fire pump and fire-fighting accessories water spraying truck
7) BV ISO CCC approved, accept customes' OEM customized water spraying truck
Fuctions:
Self suction and self discharge function, front flushes sprinkles, side spurts, post positioned work table.
Applications:
Water sprinkler truck, also known as multifunctional green sprinkler truck, is used for cleaning the city road, large factories, troops, gardens ect. Besides, it can also be used for temporary emergency sprinkler.
CLW GROUP are specialized in manufacturing 5,000L-30,000L water tank truck and exports a large number of trucks abroad every year. Our trucks have a competitive advantage in the market both in price and quality.
