Specification of car carrier truck
Specification | ||
Drive model | 4x2, RHD | |
Max. Driving Speed(km/h) | 109 | |
Cabin | Passengers Allowed in front row | 3 |
Vehicle | Curb Weight(kg) | 9700 |
Overall Dimensions(L x W x H)(mm) | 12000*2550*3830 | |
Approach/Departure angle(°) | 18/8 | |
Wheel Base(mm) | 6900 | |
Overhang (front/rear) (mm) | 1400/3500 | |
Wheel Track (front/rear) (mm) | 1800/1878 | |
Specification | ||
Engine | Model | WP6.240E32 |
Air-in Type | Inline four cylinder, supercharged intercooler | |
Fuel | diesel | |
MAX Power(HP) | 240HP | |
Emission standard | Euro 2 | |
Cylinder Number | 6 | |
Rated Speed(RPM) | 2500 | |
MAX Torque(N.M) | 830 | |
MAX Torque Speed(RPM) | 1400-1600 | |
Displacement(L) | 6.75 | |
Gear Box | Shift | 8， FAST Brand , 8JS118T |
Running system | Leaf Spring | 7/7+6,3/- |
Tire | 6+1 | |
Brake | Oil-Cut | |
Tyre | 10.00R2016, 7 pics | |
Specification | ||
Upper Part | 1. Upper Plate: 12 meters (It can be installed before manual extension 0.5 meters, after manual hydraulic extension 1 meter) | |
2. The length of the lower plate is 9.8 meters, 3. The surface of the lower plate is 0.9 meters above the ground; 4. The whole car is equipped with 10 imported oil cylinders and imported Italian Hyde hydraulic control system; 5.The whole upper part is equipped with alloy and high strength materials. | ||
More pictures for reference

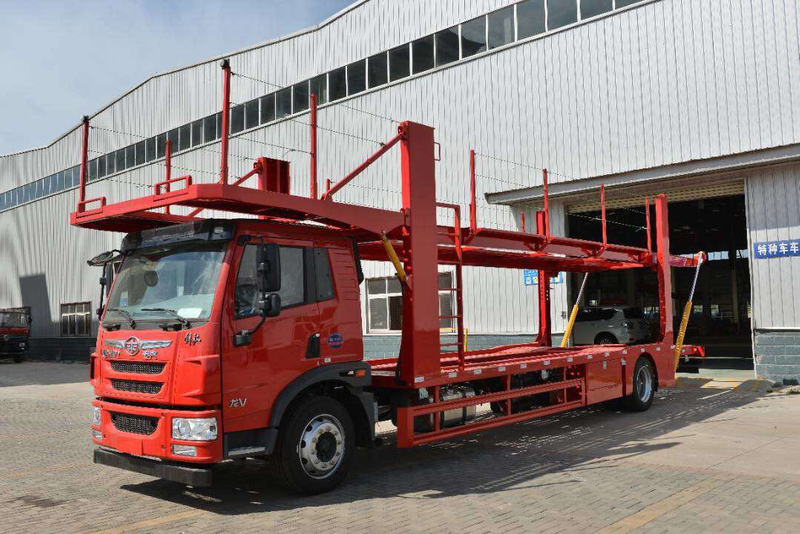

FAW 4X2 Car Carrier Truck （Loading about 5 cars）
FAW 4X2 Car Carrier Truck+2 Axles Semi Trailer（Loading about 10 cars）
Company Introduction:
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.
l More than 12 years' experience as a manufacturer
l Competitive Price and Excellent Quality
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 800 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
l Annual production value topped 1,040,000,000 US dollars per year
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
