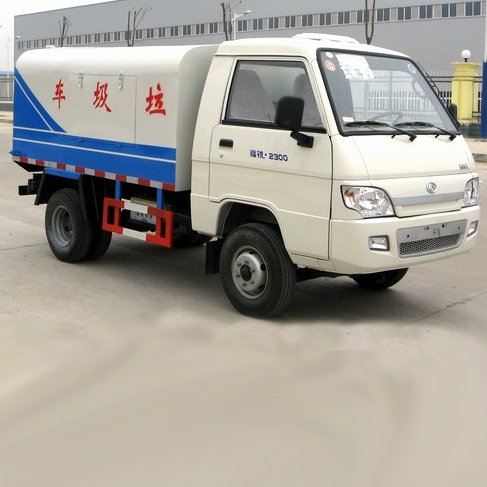

FORLAND Mini 4x2 Dumper Garbage Truck for Sale

The dumper garbage truck is also called dump garbage truck, garbage collection truck, garbage dump truck, etc. It is mainly used to butt with garbage compactor truck to transport compressed garbage block. The butt type garbage truck is with box and the rear door and top of the box can be opened by hydraulic.

Quantity:
  • CLW
  • CLW

Condition

New condition/Left and Right hand drive/4x2

Chassis

Brand

Foton

Curb weight(kg)

1840 kg

Wheelbase(mm)

2700 mm

Dimensions(mm)

5130*1690*2000 kg

Overhang (front/rear) (mm)

1185/1245 mm

Wheel track (front/rear) (mm)

1385/1280 mm

Approach/Departure angle(°)

18/9

Axle Load(kg)

1600/2600 kg

Max. driving speed(km/h)

90 km/h

Clutch

Reinforced diaphragm clutch

Brakes

Service brake: dual circuit compressed air brake                                                                                     Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Number

6pcs with one spare tire

Specifications

6.00-14

Gear box

Manual type, 5 Forwards & 1 Reverse

Cab

It can accommodate three people. With Air conditioner

Engine

Model

4B1-82C40

Displacement(ml)

2156

Fuel type

Diesel

Power(kw)

60

Emission standard

Euro 2

Upper

Box

Tank material

Q235 Carbon steel

Tank volume(cbm)

4 CBM

Max. Loading capacity(tons)

1.5tons

Button thickness(mm)

4.0 mm

Side plate thickness(mm)

3.0 mm
