HOWO 4x2 Hydraulic Wingspan Mobile Stage Truck

1. Right/Left side P4/P6/P8/P10 LED outdoor full colour display screen
2. Left/Right side with advertising rollers
3. Rear LED monochrome screen,size 1280mm *1440 mm
4. Internal and external electrical distribution box
5. Circulating ventilation and cooling systems
6. Omar Silent diesel generator set
7. One set industrial computer with control system,sound system
8. Waterproof box 2pcs, amplifier 1pc, Control Panel 1pc.
* With built-in stage
* Hydraulically Liftable LED Screen

Quantity:
  • CLW
  • HOWO 4x2
  • 5995 * 2520 * 3400mm
  • 3865kg
  • 7000kg
  • 3280mm
  • 19°/18°
  • WD615, 116HP, EURO II
  • Manual Type, 6 Forwards & 1 Reverse
  • 7.00R16 * 6 pcs Radial Steel Tyres with one Spare
  • three Passenger Seats, 70° hydraulically tillable
HOWO 4x2 Hydraulic Wingspan Mobile Stage Truck

 Cabin Driving type 4x2
With A/C ,with three seats, 70°hydraulically tillable to the front.
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 5995*2520*3400
Wheel base  (mm) 3280
Overhang  (front/rear) (mm) 1085/1545
Approach/Departure angle(°) 19/18
Weight in KGS Tare Weight 3865
payload 2000
Front axles loading capacity 1x1790
Rear axles loading capacity 1x2705
Max. driving speedkm/h 95
Engine Model Yunnei Power
Horse PowerHP) 116
Emission standard Euro II
Gearbox Manual type, 6 forwards & 1 reverse
Tire 7.00R16 *6 pcs with one spare
Main Configurations ●   Right/Left side P4/P6/P8/P10 LED outdoor full colour display screen

●   Left/Right side with advertising rollers

●   Rear LED monochrome screen/LED full color screen, size 1280mm *1440 mm

●   Internal and external electrical distribution box

●   Circulating ventilation and cooling systems

●   Omar Silent diesel generator set

●   One set industrial computer with control system,sound system

●   Waterproof box 2pcs, amplifier 1pc, Control Panel 1pc.

※ With built-in stage, 20m3 extensible
※ Hydraulically Liftable LED Screen, 1.5m


Stage Truck



1. DIP LED encapsulation confirm the high brightness even under strong sunlight
2. Good protection level waterproof IP65, anti-corrosion,oxidation resistance,long life span
3. Long viewing distance, High definition, Good uniformity
4. Brightness can be adjusted automatically according to different surroundings,
5. Can be set to open and close the screen automatically
6. Can be fixed on the wall, by pole support on the street, on top of building, or for stage rental hanging to meet the request of concert stage background, event show, live broadcasting, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, animation etc, connect with PC computer or network, also can remote control with asynchronous system, Wifi control, 3G control.
7. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
8. P6 P8 P10 type screen is optional.
9. We can provide Dongfeng, Foton, FAW, JAC, JMC, SINOTRUK HOWO, or any other Chinese truck chassis brand.

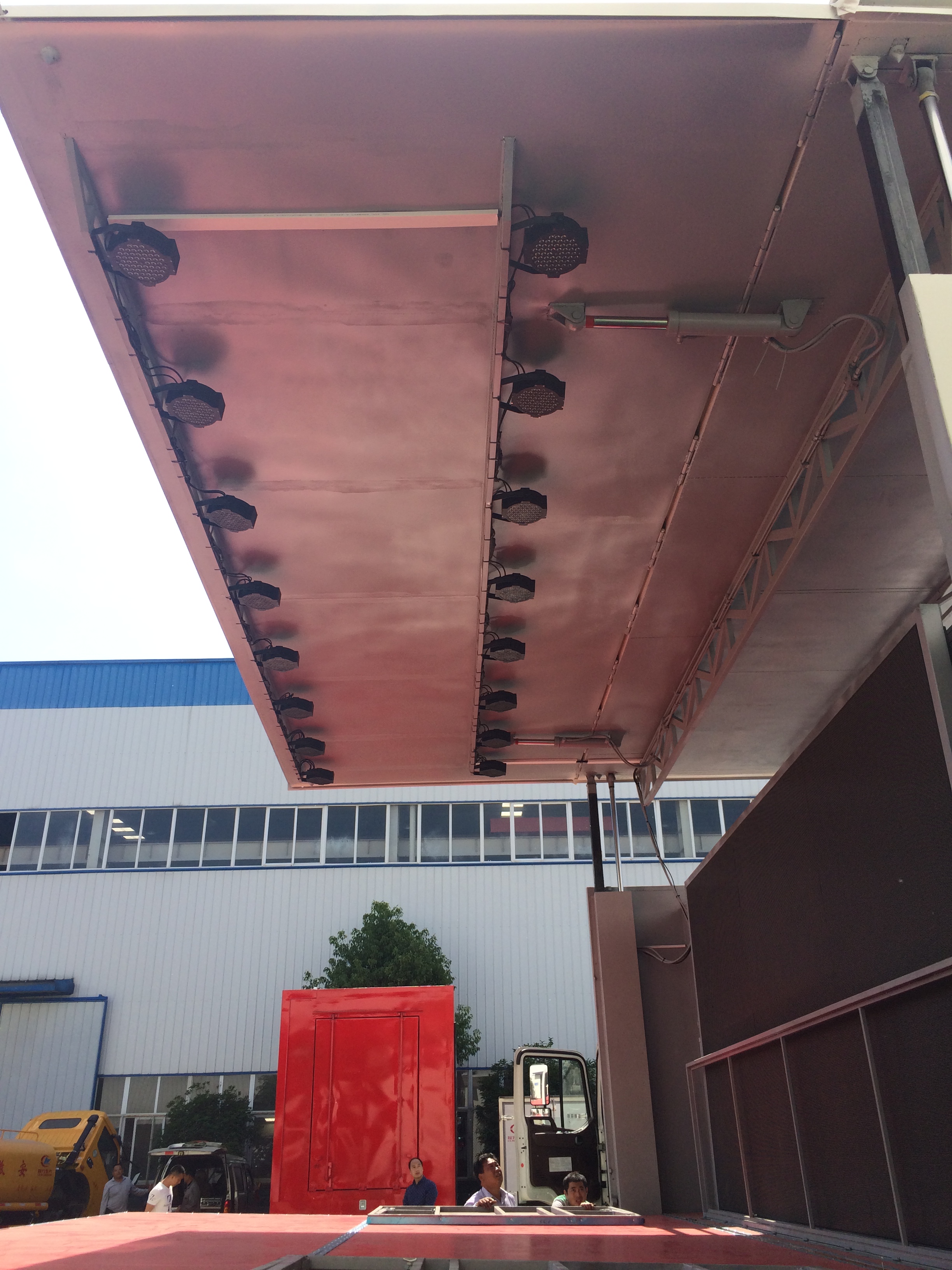

IMG_2668

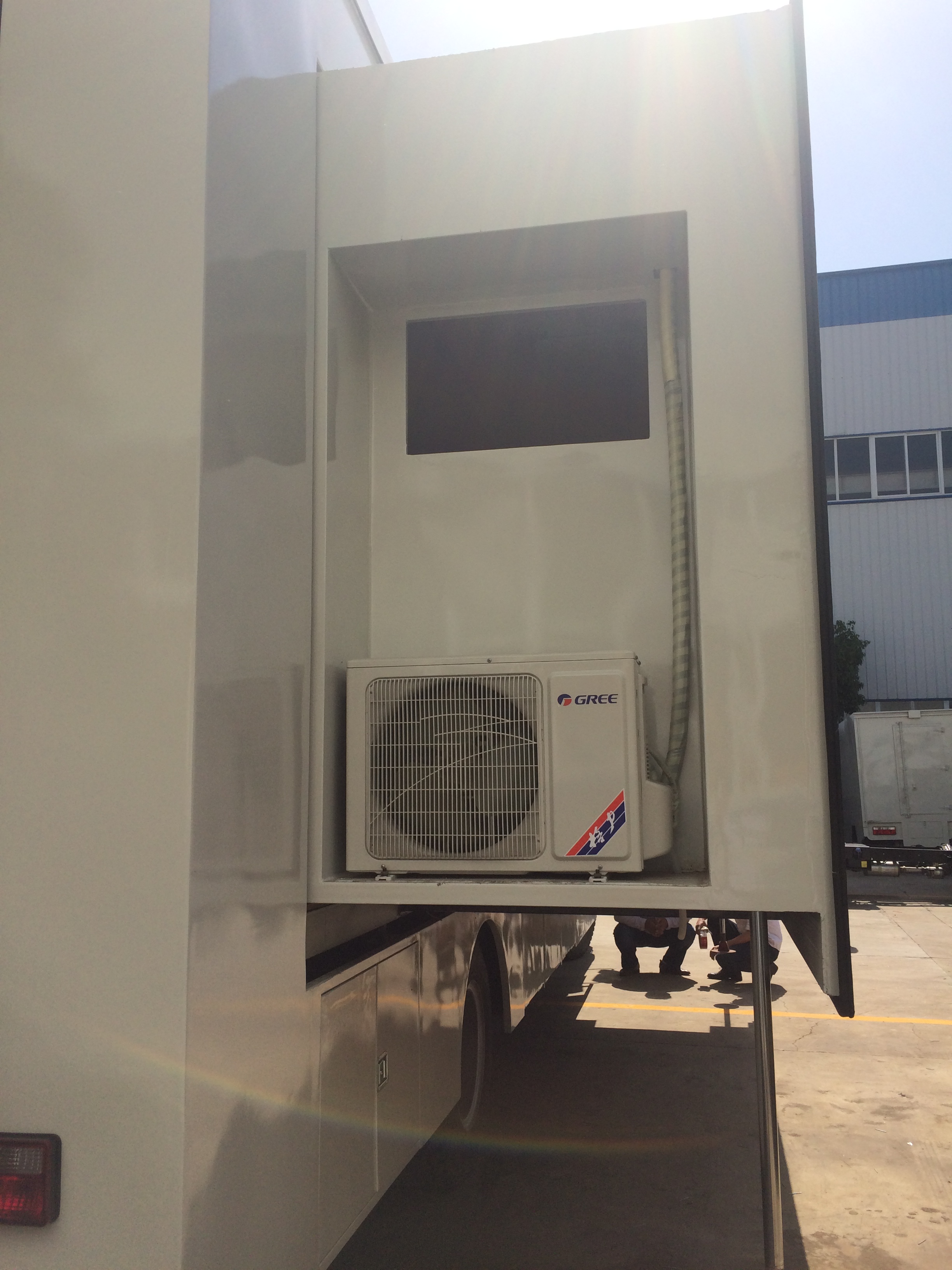

IMG_2667

IMG_2670


1.    Right/Left side P4/P6/P8/P10 LED outdoor full colour display screen
2.    Left/Right side with advertising rollers
3.    Rear LED monochrome screen,size 1280mm *1440 mm
4.    Internal and external electrical distribution box
5.    Circulating ventilation and cooling systems
6.    Omar Silent diesel generator set
7.    One set industrial computer with control system,sound system
8.    Waterproof box 2pcs, amplifier 1pc, Control Panel 1pc.
*      With built-in stage
*      Hydraulically Liftable LED Screen
LED Advertising Trucks for Chinese Famous Mobile Brand OPPO & VIVO

OPPO LED Advertising Truck

OPPO LED Advertising Truck-1

VIVO LED Stage Truck

oppo广告车-1

vivo广告车
1. LED Advertisement Truck

2015120934835313

2. Stage Semi Trailer

timg

3. LED Advertising Trailer

LED Trailer-3

1.Hubei Chengli Special Automobile Co, ltd, whichis appointed by Ministry of Industry and Information technology of China, is a big manufactureeer producing all kinds of special trucks and semi-trailer.It is famous for special trucks for virescence,entironment cleanness,oil,chemical industry and pressure vessel.

2.Our company cooperates with famous chassis manufactureer,such as DongFeng,Faw,Sinotruk, JAC,Shacman, Foton and etc.We can produce more than 300 kinds of special trucks,semi-trailer.

3.Chengli take customer's  satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place.

4.We serve the best service for every client.

Chengli Special Automobile Co., Ltd can provide products as follows:

1. Dump Truck / Tipper Truck/Side Tipper/End Tipper

2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine

3. Truck with crane / Truck mounted crane

4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck

5. Water truck / Water Tank Truck / Water Sprinkler Truck

6. Concrete Mixer Truck

7. Van truck / Insulated truck/ Refrigeration truck

8. Fecal suction truck / Sewage suction truck,

9. Cement Powder Tank truck/ Bulk cement truck

10. High-altitude operation truck,

11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,

12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

CHENGLI SPECIAL AUTOMOBILE CO., LTD . is looking forward to your visiting. The reliant quality, excellent service and reasonable price are the promise we keep.
