3 Axle 25CBM 60Ton U Shape Tipping Dump Tipper Semi Trailer
Main Dimensions | ||||||
Overall Length | 12800MM | |||||
Overall Height | 3800MM | |||||
Tare Weight | 13700KGS | |||||
Total Volume | 45CBM or 30/40/50/60/70 cbm can be customized. | |||||
Pay Load | 66Tons | |||||
Tanker Body | ||||||
Inner Fluidized Bed | Air bag | Rated work Pressure | 0.2MPa | |||
Tanker Body | Q235A/ 6mm steel sheet | Compartment | Single | |||
End plate | Q235A/6mm, ball shape | Shape | V type | |||
Chassis | ||||||
Axles | 3 axles, BPW 13 ton, FUWA, L1 brand are optional | |||||
Suspension | Mechanical suspension with 8-pcs leaf spring | |||||
Braking System | WABCO Emergency Relay Valve; T30/30+T30 air chamber | |||||
Rim & Tire | 11R22.5 tubeless tire with one spare tire with 8.25R22.5 wheel rim, 13 pieces | |||||
Key Accessories | ||||||
Air compressor | 45KW, 0.2Mpa, 1000r/Min | |||||
Engine | Diesel engine, Chinese famous brand | |||||
Manhole Cover | 500mm manhole cover, 3 sets | |||||
Air-charging system | 2” main hole, 2”check valve, 1.5” safe valve, 0.4Mpa gauge | |||||
Discharge Pipe | 4” seamless steel tube | |||||
Quadratic blow | 1” diameter check valve | |||||
Discharge valve | 4”disc valve | |||||
Outlet discharging pipe | 4” rubber hose, 6m | |||||

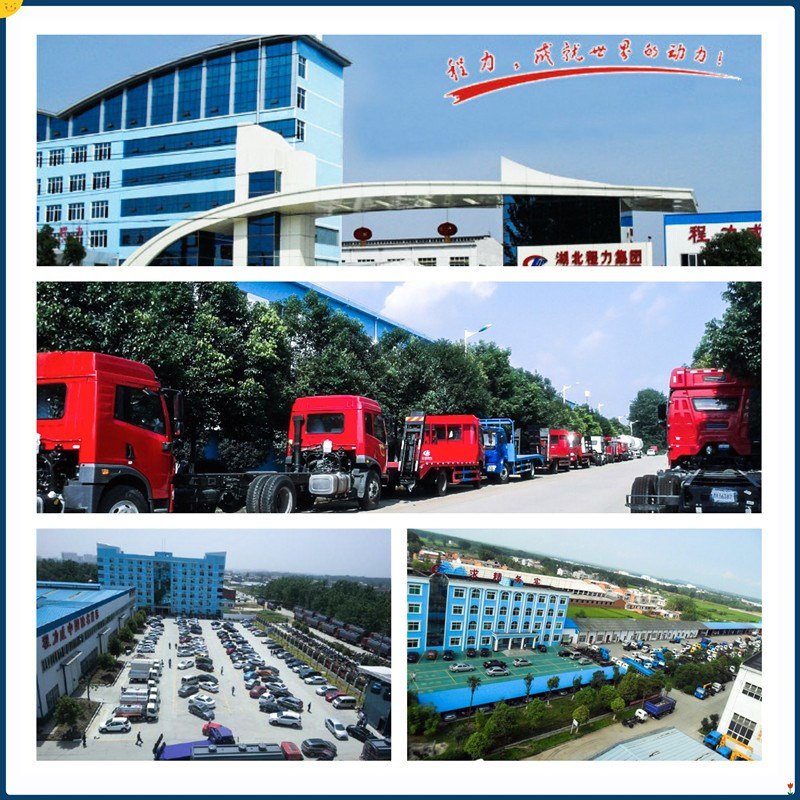

Company Introduction
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.
l More than 15 years' experience as a manufacturer
l Competitive Price and Excellent Quality
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 800 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
l Annual production value topped 240,000,000 US dollars per year
Customized Truck & Trailer Solutions to Meet Your Requirements
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,

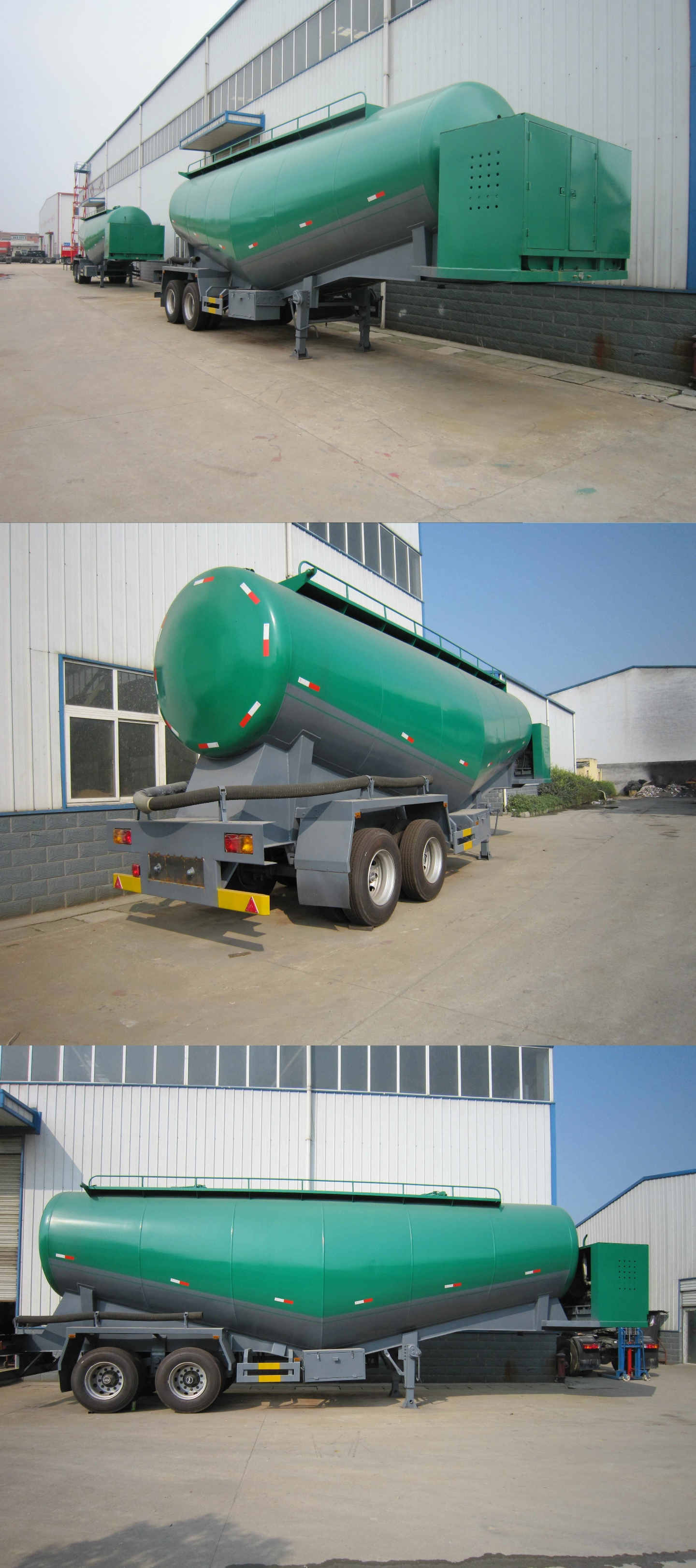

9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
