HW Fuel tank truck
Sinotruck howo
CLW Fuel
Howo 21.5cbm fuel tank truck 6*4 RHD with fueling system
Specification of Howo 21.5cbm fuel tank truck 6*4 RHD with fueling system | |||||
Condition | Driving Mode | 6×4,RHD | |||
Truck Purpose | Oil Delivery, Oil Dispensing | ||||
Chassis | Brand | Howo | |||
Dimension(mm) | 9300x2500x3563 | ||||
Wheelbase(mm) | 4325+1350 | ||||
Curb weight(kg) | 12500 | ||||
Approach/departure angle(°) | 14/18 | ||||
Front /rear overhang(mm) | 1500/2125 | ||||
Wheel track(front /rear)(mm) | 1825/1796 | ||||
Axle load(front /rear)(kg) | 2041/1830 | ||||
Max driving speed(km/h) | 80 | ||||
Tire | Quantity | 10pcs+1 | |||
Specification | 80R22.5 | ||||
Cab | 2 persons | ||||
Engine | Model | WD615 47 | |||
Maximum horsepower(HP) | 371 | ||||
Max output power | 273kw | ||||
Displacement | 9.726L | ||||
Intake form | Turbocharged | ||||
Cylinder number | 6 | ||||
Fuel type | Diesel | ||||
Cylinder arrangement | inline | ||||
Maximum torque | 1500N.m | ||||
Rated speed | 2200rpm | ||||
Maximum torque speed | 1100-1600rpm | ||||
Engine form | Inline six-cylinder, water-cooled, four-stroke, supercharged intercooled, direct injection | ||||
Compression ratio | 17:1 | ||||
Bore diameter x stroke | 126x130mm | ||||
Number of valves per cylinder | 2 | ||||
Ignition order | 1-5-3-6-2-4 | ||||
Minimum fuel consumption at full load | ≤193g/kW.h | ||||
Engine net weight | 850kg | ||||
Noise outside one meter | 98dB | ||||
Emission standard | Europe 2 | ||||
Gearbox | HW19710CL， 10forward and 2 backward | ||||
Fuel Tank | |||||
Tank | Volume | 21500L | |||
Material | Carbon Steel Q235B | ||||
Oil Type | Diesel, Petrol, Kerosene,Crude Oil & Aviation Oil | ||||
Paint | Anti-corrosive | ||||
Compartment | 1 compartment, with one manhole , one breather valve, one bottom valve, one discharge vale | ||||

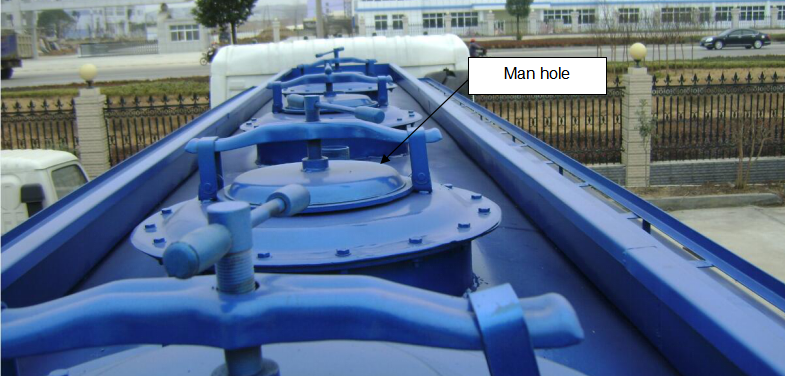

Manhole | Euro Standard Manhole (API manhole) | ||||
Ladder | 1 set | ||||
Fire extinguisher | 1 set | ||||
Tool Box | 2 sets | ||||
Discharge hose storage | 2 sets, one for each side | ||||
Oil pump | 1 set | ||||
Fueling System | |||||
Oil Dispenser | 1 set | ||||
Oil Filling Hose & Gun | 1 set | ||||
Fuel filling meter | 1 set | ||||
Details:
Company Introduction
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.
l More than 15 years' experience as a manufacturer
l Competitive Price and Excellent Quality
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 800 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
l Annual production value topped 240,000,000 US dollars per year
Customized Truck & Trailer Solutions to Meet Your Requirements
Products Catalog:

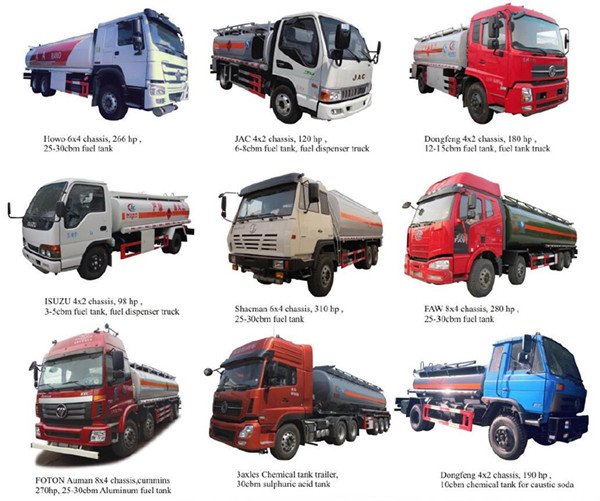

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
