CLW5090GFXF
Howo Dry Powder Rescue Fire Truck 4X4 3000L Water 1000Liters foam 500L Dry Powder
Product Description
1. Dry Powder Rescue Fire Truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.
2) To ensure good performance of Dry Powder Rescue Fire Truck,Dry Powder Rescue Fire Truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).
3) Dry Powder Rescue Fire Trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.
4) Loading capacity range of Dry Powder Rescue Fire Trucks:2ton,2t,3ton,5ton,6tons,8ton,10tons,12ton,14ton,16ton
Spec. of Howo Dry Powder Rescue Fire Truck 4X4 3000L Water 1000Liters foam 500L Dry Powder
Model | Parameters | others |
Overall Dimension | 8470*2500*3640mm | |
GVW | 16000kg | |
Engine Model | WD615.87 | |
Engine Power | 213kW | |
Wheelbase | 4600mm | |
Driving Type | 4X4 | |
Max.speed | 102km/h | |
Emission Standard | 9726ml/kW | Euro2 |
Fire pump rated flow | 60L/s@1.0Mpa, 30L/s@2.0Mpa | Vacuum pump |
water monitor rated flow | 48-64L/s@1.0-1.2Mpa (ajustable) | Straight stream/spray/mist spray |
Water monitor range | Water range≥65m,Foam≥60m | |
Passengers | 2+4 | |
Approach angle | ≥16° | |
Departure angle | ≥19° |
Item Parameters | Parameters | others | |||
1 | Tank capacity | water | 3000㎏ | ||
Foam | 1000㎏ | ||||
Dry powder | 500kg | ||||
2 | Fire pump model | CB20.10/30.60 | Shanghai rongshen | ||
3 | Fire pump performance | Pressure 1:1.0Mpa flow:60L/S Pressure 2: 2.0Mpa flow:30L/S | Use vacuum pump to priming water | ||
4 | the installation site of fire pump | rear | |||
5 | The quantity of fire pump water outlet | 6 | |||
Dry powder tank pressure | 0.5Mpa~1.7Mpa | ||||
6 | Pressure gauge | 0-2.5 MPa | 2.6 level | ||
7 | Vacuum gauge | -0.1- -1 MPa | 2.6 level | ||
8
| Water monitor (PL48-64) | Injection pressure | water:≥65m Foam: ≥60m | Zhangqiu | |
1.0~1.2Mpa | |||||
Depression/Elevation angle | -15-+75° | ||||
Turning angle 340° | |||||
9 | Foam proportioner | 3%-5% | |||
10 | PTO Model | YTQ800F type full power sandwich , pneumatic | Sinotruk |
Item | Item | parameters | unit | quantity |
1 | sucking hose(DN135) | Φ135×2m | piece | 4 |
2 | water filter(FLF135) | Φ135 | piece | 1 |
3 | Water collector | FJ135 | piece | 1 |
4 | Adapter | kJ65/80 | piece | 2 |
5 | Adapter (KT135) | 135 to 100mm | piece | 1 |
6 | sucking pipe wrench | FS135 | piece | 2 |
7 | fire hydrant wrench | FB400 | piece | 1 |
8 | underground fire hydrantwrench | FBA1000 | piece | 1 |
9 | water hose | 20-65-20m | disc | 8 |
10 | water hose | 20-80-20m | disc | 4 |
11 | straight stream nozzle | QZG19 | piece | 1 |
12 | diversion spray nozzle | QZH19 | piece | 1 |
13 | Foam nozzle | PQ8 | Piece | 1 |
14 | Foam nozzle | PQ16 | piecec | 1 |
15 | Water distributor | FFS80 | piece | 1 |
16 | hose protector | HQ600(wooden) | pair | 2 |
17 | Fire spade | Piece | 1 | |
18 | Fire crowbar | piece | 1 | |
19 | hose hook | FG600 | piece | 2 |
20 | hose gaiter | FP470 | piece | 4 |
21 | fire axe | 817mm | piece | 1 |
22 | pickax | piece | 1 |

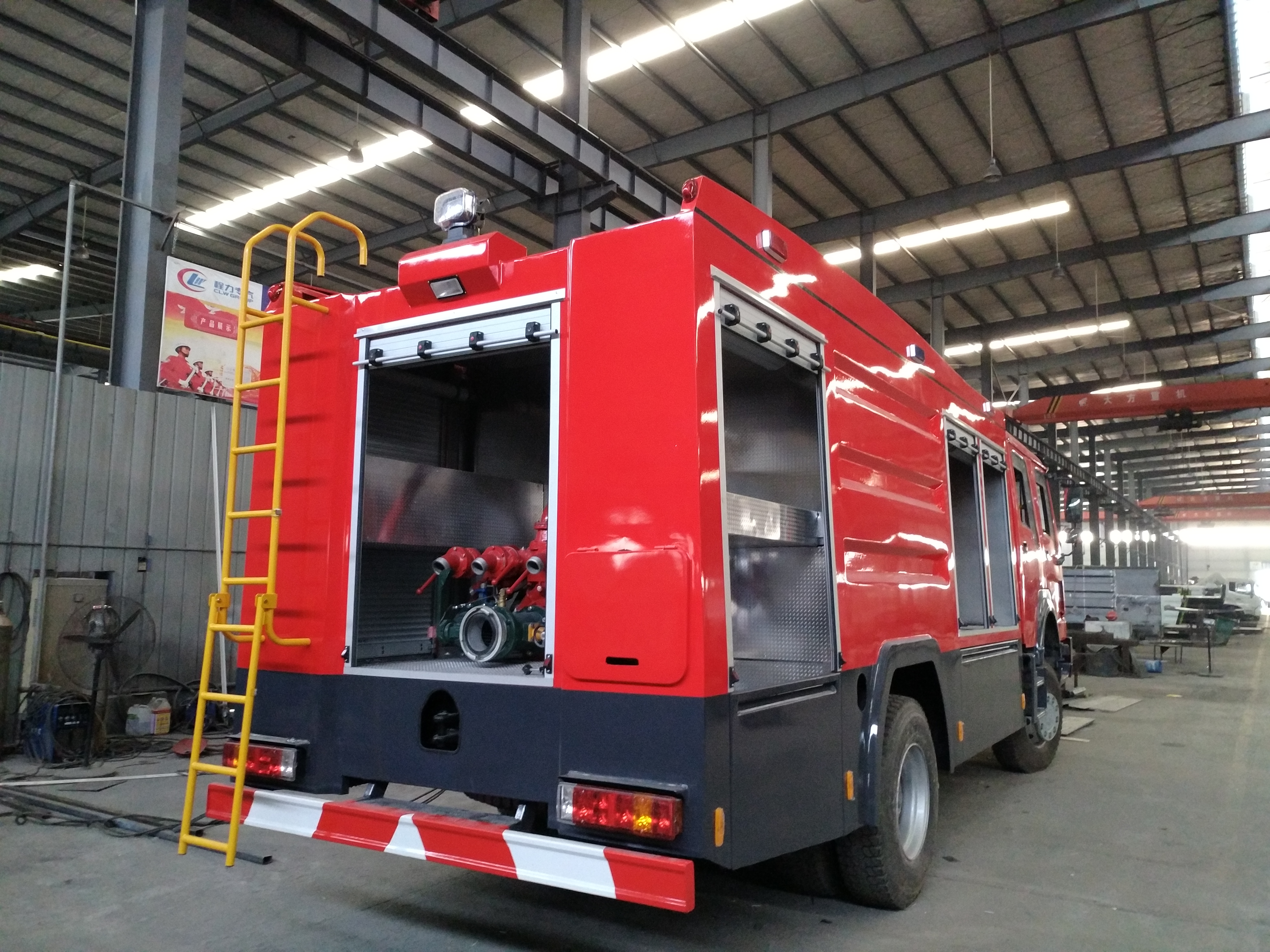

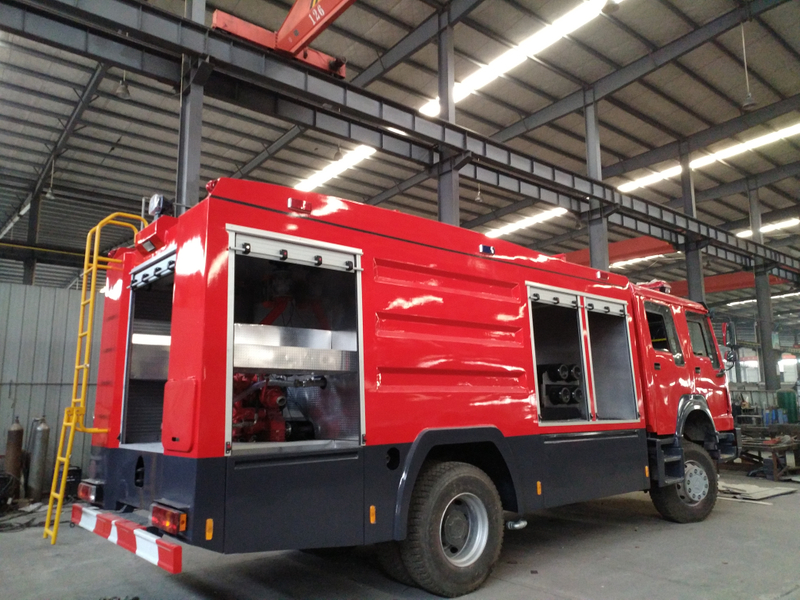

Products Show
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of Dry Powder Rescue Fire Truck I can order from your company?
A: There are various sizes and types of Dry Powder Rescue Fire Trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied Dry Powder Rescue Fire Trucks to any overseas companies?
A: Yes,with need of government project,we offered Dry Powder Rescue Fire Trucks to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Howo Dry Powder Rescue Fire Truck 4X4 3000L Water 1000Liters foam 500L Dry Powder
Product Description
1. Dry Powder Rescue Fire Truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.
2) To ensure good performance of Dry Powder Rescue Fire Truck,Dry Powder Rescue Fire Truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).
3) Dry Powder Rescue Fire Trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.
4) Loading capacity range of Dry Powder Rescue Fire Trucks:2ton,2t,3ton,5ton,6tons,8ton,10tons,12ton,14ton,16ton
Spec. of Howo Dry Powder Rescue Fire Truck 4X4 3000L Water 1000Liters foam 500L Dry Powder
Model | Parameters | others |
Overall Dimension | 8470*2500*3640mm | |
GVW | 16000kg | |
Engine Model | WD615.87 | |
Engine Power | 213kW | |
Wheelbase | 4600mm | |
Driving Type | 4X4 | |
Max.speed | 102km/h | |
Emission Standard | 9726ml/kW | Euro2 |
Fire pump rated flow | 60L/s@1.0Mpa, 30L/s@2.0Mpa | Vacuum pump |
water monitor rated flow | 48-64L/s@1.0-1.2Mpa (ajustable) | Straight stream/spray/mist spray |
Water monitor range | Water range≥65m,Foam≥60m | |
Passengers | 2+4 | |
Approach angle | ≥16° | |
Departure angle | ≥19° |
Item Parameters | Parameters | others | |||
1 | Tank capacity | water | 3000㎏ | ||
Foam | 1000㎏ | ||||
Dry powder | 500kg | ||||
2 | Fire pump model | CB20.10/30.60 | Shanghai rongshen | ||
3 | Fire pump performance | Pressure 1:1.0Mpa flow:60L/S Pressure 2: 2.0Mpa flow:30L/S | Use vacuum pump to priming water | ||
4 | the installation site of fire pump | rear | |||
5 | The quantity of fire pump water outlet | 6 | |||
Dry powder tank pressure | 0.5Mpa~1.7Mpa | ||||
6 | Pressure gauge | 0-2.5 MPa | 2.6 level | ||
7 | Vacuum gauge | -0.1- -1 MPa | 2.6 level | ||
8
| Water monitor (PL48-64) | Injection pressure | water:≥65m Foam: ≥60m | Zhangqiu | |
1.0~1.2Mpa | |||||
Depression/Elevation angle | -15-+75° | ||||
Turning angle 340° | |||||
9 | Foam proportioner | 3%-5% | |||
10 | PTO Model | YTQ800F type full power sandwich , pneumatic | Sinotruk |
Item | Item | parameters | unit | quantity |
1 | sucking hose(DN135) | Φ135×2m | piece | 4 |
2 | water filter(FLF135) | Φ135 | piece | 1 |
3 | Water collector | FJ135 | piece | 1 |
4 | Adapter | kJ65/80 | piece | 2 |
5 | Adapter (KT135) | 135 to 100mm | piece | 1 |
6 | sucking pipe wrench | FS135 | piece | 2 |
7 | fire hydrant wrench | FB400 | piece | 1 |
8 | underground fire hydrantwrench | FBA1000 | piece | 1 |
9 | water hose | 20-65-20m | disc | 8 |
10 | water hose | 20-80-20m | disc | 4 |
11 | straight stream nozzle | QZG19 | piece | 1 |
12 | diversion spray nozzle | QZH19 | piece | 1 |
13 | Foam nozzle | PQ8 | Piece | 1 |
14 | Foam nozzle | PQ16 | piecec | 1 |
15 | Water distributor | FFS80 | piece | 1 |
16 | hose protector | HQ600(wooden) | pair | 2 |
17 | Fire spade | Piece | 1 | |
18 | Fire crowbar | piece | 1 | |
19 | hose hook | FG600 | piece | 2 |
20 | hose gaiter | FP470 | piece | 4 |
21 | fire axe | 817mm | piece | 1 |
22 | pickax | piece | 1 |
Products Show
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of Dry Powder Rescue Fire Truck I can order from your company?
A: There are various sizes and types of Dry Powder Rescue Fire Trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied Dry Powder Rescue Fire Trucks to any overseas companies?
A: Yes,with need of government project,we offered Dry Powder Rescue Fire Trucks to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
For different function, Water Tanker Fire Truck. Foam Fire Truck. Powder Fire Truck. Universal Fire Truck. Carbon Dioxide Fire Truck. elevating fire truck (Water Tower Fire Truck. Elevating Platform Fire Truck. Aerial Ladder Fire Truck), Emergency Rescue Fire Vehicle.
Except for the fire pump and equipment, water tank fire truck is equipped with a large-capacity water storage tank, water gun, and water cannon. Water and firefighters can be transported to the fire to independently fight the fire. It can also be used directly from the water source to save water, or to other fire trucks and fire-fighting spray devices. It can also be used as a water supply and water transport vehicle in water-deficient areas. It is suitable for fighting general fires. It is a fire-fighting vehicle that is reserved by the public security fire brigade and the full-time fire brigade of enterprises and enterprises.
Foam fire trucks are mainly equipped with fire pumps, water tanks, foam tanks, foam mixing systems, foam guns, guns and other fire equipment, which can save fires independently. It is especially suitable for oil fires such as oil and its products. It can also supply water and foam mixture to the fire. It is a necessary fire-fighting vehicle for petrochemical enterprises, oil terminals, airports, and urban professional fire brigades.
A fire with a high-pressure gas storage cylinder with carbon dioxide fire extinguishing agent and its complete set of spraying devices and some also have a fire pump. It is mainly used to save fires such as valuable equipment, precision instruments, important cultural relics and books, and archives, and can also save general material fires.
Dry powder fire trucks are mainly equipped with dry powder fire extinguishing agent tanks and complete dry powder spraying devices, fire pumps and fire fighting equipment, etc.
It mainly uses dry powder to save flammable and flammable liquids, flammable gas fires, fires from live equipment, and fires that can cause general substances. For large chemical pipeline fires, the effectiveness of the rescue is particularly significant. It is a fire truck kept by petrochemical companies.
Foam-dry powder combined with fire trucks The equipment and fire extinguishing agent is a combination of a foam fire truck and a dry powder fire truck. It can spray different fire extinguishing agents at the same time or can be used alone. Suitable for fighting flammable gases, flammable liquids, organic solvents, and electrical equipment as well as general material fires.
For different function, Water Tanker Fire Truck. Foam Fire Truck. Powder Fire Truck. Universal Fire Truck. Carbon Dioxide Fire Truck. elevating fire truck (Water Tower Fire Truck. Elevating Platform Fire Truck. Aerial Ladder Fire Truck), Emergency Rescue Fire Vehicle.
Except for the fire pump and equipment, water tank fire truck is equipped with a large-capacity water storage tank, water gun, and water cannon. Water and firefighters can be transported to the fire to independently fight the fire. It can also be used directly from the water source to save water, or to other fire trucks and fire-fighting spray devices. It can also be used as a water supply and water transport vehicle in water-deficient areas. It is suitable for fighting general fires. It is a fire-fighting vehicle that is reserved by the public security fire brigade and the full-time fire brigade of enterprises and enterprises.
Foam fire trucks are mainly equipped with fire pumps, water tanks, foam tanks, foam mixing systems, foam guns, guns and other fire equipment, which can save fires independently. It is especially suitable for oil fires such as oil and its products. It can also supply water and foam mixture to the fire. It is a necessary fire-fighting vehicle for petrochemical enterprises, oil terminals, airports, and urban professional fire brigades.
A fire with a high-pressure gas storage cylinder with carbon dioxide fire extinguishing agent and its complete set of spraying devices and some also have a fire pump. It is mainly used to save fires such as valuable equipment, precision instruments, important cultural relics and books, and archives, and can also save general material fires.
Dry powder fire trucks are mainly equipped with dry powder fire extinguishing agent tanks and complete dry powder spraying devices, fire pumps and fire fighting equipment, etc.
It mainly uses dry powder to save flammable and flammable liquids, flammable gas fires, fires from live equipment, and fires that can cause general substances. For large chemical pipeline fires, the effectiveness of the rescue is particularly significant. It is a fire truck kept by petrochemical companies.
Foam-dry powder combined with fire trucks The equipment and fire extinguishing agent is a combination of a foam fire truck and a dry powder fire truck. It can spray different fire extinguishing agents at the same time or can be used alone. Suitable for fighting flammable gases, flammable liquids, organic solvents, and electrical equipment as well as general material fires.
