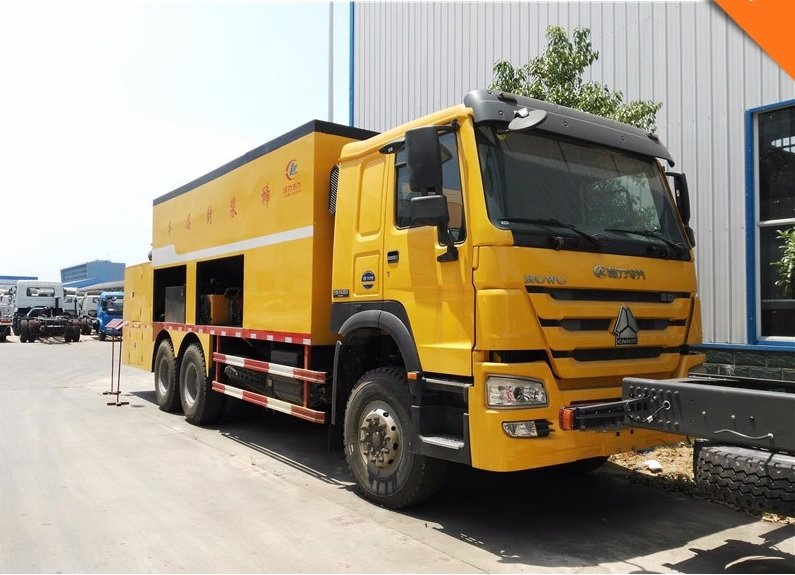

SINOTRUK HOWO 3 Axles 12CBM Asphalt Slurry Seal Coat Truck

howo 6x4 12cbm asphalt slurry seal truck is also known as a micro-surfacing paving truck, is a road maintenance truck. It is mainly used for new asphalt pavement’s functional layer construction (up-sealing layer and sub-seal coat), and all grades old asphalt pavement’s maintenance construction (slurry seal, micrometer) and wheel ruts repair. By pouring durable asphalt mixture (asphalt + water + aggregate + padding + additives) to pavement, can provide a thin layer mask to road surface, effectively close road, separate surface cracks from water and air, prevent pavement aging. After repairing with slurry, road is smooth and easy to drive.

Quantity:
  • CLW
  • CLW

SINOTRUK HOWO 3 Axles 12CBM Asphalt Slurry Seal Coat Truck


1. Independent high power engine to provide strong power for micro surfacing construction.

2. Touch screen operation and automatic execution according to inputted parameters.

3. Automatic control technology and the calculation system have no need to be reset if the mix proportion is changed.

4. High-precision imported monitor and measure units are adopted for the system of aggregate, powder, water, asphalt and additive.

5. Spreading system with four extension type spirals with two heads and major diameter for high quality of spreading.

6. The spiral angle and speed can be adjusted to avoid the dead angle, separation spreading, and second mixing.

7. All operation can be finished by one person on the rear control platform.

8. Two sets of blending system and automatic or manual blending can be carried out.

9. The spreading width and spreading thickness can be adjusted.


Item No.

Parameters

Chassis

Gross Vehicle Weight

25000 kg

Curb Weight

17000 kg

Loading Weight

7870Kg

Wheel Base

4300+1400 mm

Front/rear Tread

2041/1830 mm

Approach/Departure Angle

16/13 degree

Engine

D10.34-40

Engine horsepower

340HP EURO IV

Displacement

9726L/249KW (Diesel)

Max Driving Speed

90 km/h

Tire

12.00r20 (10 pieces+1piece spare tire)

Top Loading Parameter

Herb Wright

20Tons

Overall Dimensions

10200x2500x3730mm

Spreading thickness

5-15cm

Spreading width

2.4m-4.2m

Asphalt Tank

5500liters

Water Tank

6000liters

Aggregate Tank

18000liters

Additive Tank

260liters

Filler Tank

1000liters

Additive Control

Adopting the hydrodynamic force and labor force together

Spreading Box Control

Adopting hydraulic power to control the angle of the mixer to suit different slopes

Usage Scope

Micro surfacing , Slurry Sealing . PCA road Color Road .etc.



CHENGLI SPECIAL AUTOMOBILE CO., LTD , which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing many kinds of special trucks. Our leading productions contain more than 300 types of trucks such as water truck, sewage suction truck, garbage truck, road sweeper, fuel tanker, chemical liquid truck, concrete mixer truck, LPG tanker, dump truck, refrigerated truck, etc.We have registered trademark "CHENLIWEI" and the products code is “CLW”. We have solid technology, flawless inspection, advanced equipments, reliable quality and flexible modes of operation. What's more, we have roundly passed the certification of ASME, ISO 9001:2008, ISO 14001:2004, OHSAS 18001:2007 and the China 3C Certification (China Compulsory Certification), etc.

 CHENGLI SPECIAL AUTOMOBILE CO., LTD is the most important partner of DONGFENG, FAW, JAC, FOTON, SINOTRUK and other Automobile Company. It not only design, manufacture and test all kinds of special automobiles and fittings accurately as per the customer’s request ,but also provide all spare parts.

 CHENGLI SPECIAL AUTOMOBILE CO., LTD is located in SUIZHOU City, HUBEI province, China, the native place of YANDI SHENNONG, and the Capital of Special Truck. Welcome the friends from all over the world to SUIZHOU! To our factory, you will be received the most enthusiastic reception.


1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )






1. Q: Are you manufacturer or trading company?

 A: We are direct manufacturer and are the well-known Special Purpose Truck manufacturer in China, our factory is located in South Suburb ChengLi Automobile Industry Park, Suizhou City, Hubei Province, it is very close to Wuhan City.



2. Q:How many is your min Order Quantity?

A: One unit or one sets;



3.Q:what is your payment term?

A: 30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;



4. Q: How long is the specified delivery date from the date of order?

A: Usually it is 7-30 days, specified delivery date will depend on the detailed request.



5. Q: Contact Information?



A: For any question or request, please contact with me freely according to the following information:
