Sinotruk 10000L Intelligentized Rubber Asphalt Synchronous Chip Sealer Truck

Synchronous chip sealer is widely-utilized in road construction, specially in the high speed way and freeway.
Our company has manufactured synchronous chip sealer for many year, our synchronous chip sealers have been tested in Africa market for years and Ghana government once purchased 5 units of synchronous chip sealer from our company at one time.
Our synchronous chip sealer are all high automatic type and easy to operation, better price compared with other companies and high quality confirmed.
The synchronous chip sealer can also be called chip sealer, Bitumen and Aggregate chip sealer, Asphalt and Gravel chip sealer and chip sealing truck.

Quantity:
  • CLW
  • CLW

1. Introduction of synchronous chip sealer


Synchronous chip sealer is widely-utilized in road construction, specially in the high speed way and freeway.

Our company has manufactured synchronous chip sealer for many year, our synchronous chip sealers have been tested in Africa market for years and Ghana government once purchased 5 units of synchronous chip sealer from our company at one time.

Our synchronous chip sealer are all high automatic type and easy to operation, better price compared with other companies and high quality confirmed.

The synchronous chip sealer can also be called chip sealer, Bitumen and Aggregate chip sealer, Asphalt and Gravel chip sealer and chip sealing truck.


2. Advantages of our synchronous chip sealer



Famous brand chassis——our synchronous chip sealer are all made up of Dongfeng, SINOTRUK, FAW, FOTON, JAC, Japan brands and many world-famous brands

Low price——our synchronous chip sealer have very competitive price, we believe that you will find the satisfied truck in our factory!

  1. Asphalt, fiber and aggregate could be applied synchronously in one machine.

  2. It can spread aggregate without lifting the hopper, which is convenient to the constructions in culverts, under bridges and at the curves.

  3. It is completely controlled by electrical system of high-level automation. The spreader’s expansion and spray bar width can be flexibly controlled automatically. It can accurately calculate the asphalt spray volume in construction.

  4. Double-screw charger conveys aggregates to the discharging unit of 3800mm wide, then aggregates fall down by roller friction and self gravity over distribution plate to keep uniform spreading effects.

  5. It reduces the work intensity of construction, saves labor power, decreases the construction costs and improves working efficiency and quality.

  6. The whole machine runs stably and makes uniform spray and spreading. It can flexibly regulate asphalt spray width, fiber spray width and aggregates spreading width.

  7. Sound and durable corrosion-resistant insulation layer keeps heat preservation index no more than 20℃/8h.



3. Specification of synchronous chip sealer


Item No.

Parameters

Chassis

Overall Dimension

10200x2500x3563mm

Driving Model

Left hand drive

Gross Vehicle Weight

25000 kg

Curb Weight

17370 kg

Loading Weight

7500 Kg

Wheel Base

4600+1350 mm

Front/rear Tread

1260/1340 mm

Approach/Departure Angle

16/14 degree

Front Axle

7000kg

Rear Axle

18000kg

Engine

WD615.95,Weichai Diesel Engine,

watering cooling, four stroke, 6 cylinder in line

Engine horsepower

336HP EURO II

Displacement

9.726L (Diesel)

Max Driving Speed

90 km/h

Cabin

HW76,2~3 Passenger allowed, Left Hand Driving, with Air Conditioner

Tire

12R22.5 (7 pieces)

Asphalt Tank

8cbm

Outside Material

Stainless plate

Insulation layer

20/8h

Rubble Tank

12cbm

Rubble

S3~S24mm

Asphalt pump

QGB950,980L/min

Hydraulic System

Hydraulic pump

BRY50-20-16

Driving Motor

 05-130-BD31

Proportional Valve

EFBG-03-160-HF/Taiwan brand

Shuttle Valve

Shanxi Yuci brand

Overflow Valve

Shanxi Yuci brand

Control System

Control System

CLW-32-01/Germany Siemens

Control Method

Computer control

Smart asphalt nozzle

32 pcs

Heating System

Heating method

Automatic heating by oil

Burner

G20/Italy brand

Radiator

Risheng brand

Heat transfer oil pump

40-25-160

Gasoline Engine

5.5kw

Spreading Width

4m

Spreading Speed

0.2~3.5L/min

Spreading Precision

±2%

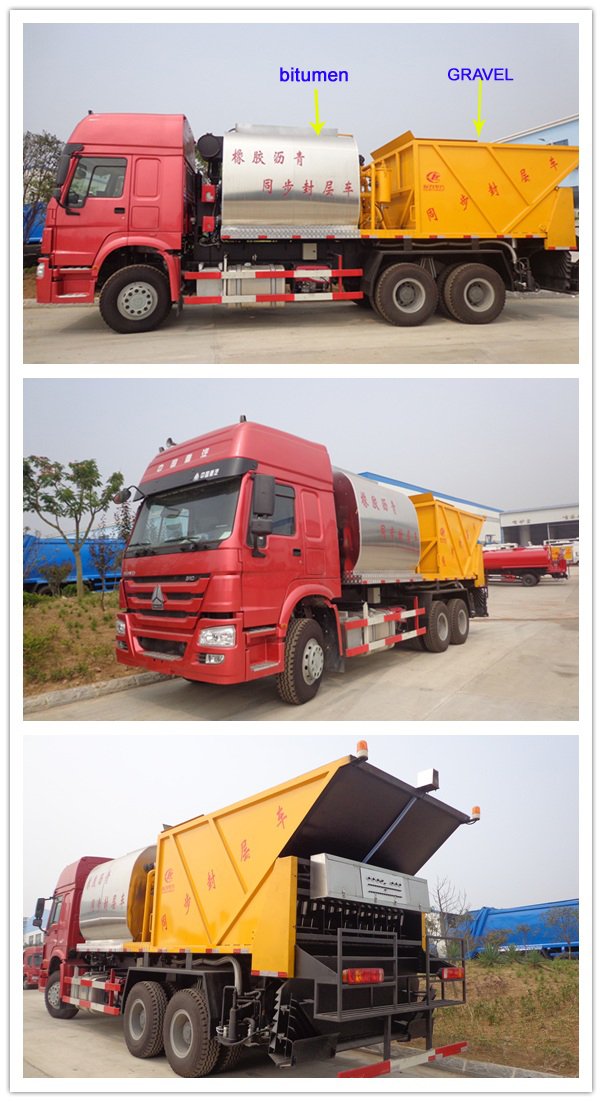

gravel synchronous seal truck.jpg
