| Quantity: | |
|---|---|
CLW
2 sets, 3840mm * 1728mm
960mm * 960mm
7800mm * 1800mm * 2940mm
5300kg
2800mm
380V/220V
16kW
Hydraulic Brake
360°
≥16m
| CLW P6 LED TRAILER | |||
| Item No. | Parameters | ||
| Dot Pixel | P6 | ||
| Display Size | 2 sets, 3840mm*1728mm | ||
| Module Size | 192mm*192mm | ||
| Pixel Configuration | 1R1G1B | ||
| Module Resolution | 32*32(dots) | ||
| Density | 27777dot/m2 | ||
| LED Type | SMD2727 | ||
| Brightness | ≥5500CD/m2 | ||

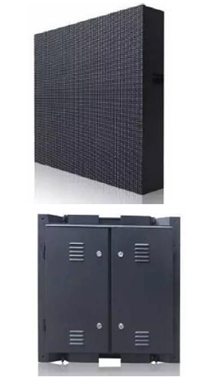

| Cabinet | ![WT@J0FZY3NY][}X006HHI](http://5irorwxhqkrjrij.leadongcdn.com/cloud/inBqoKinRijSjikprnin/WT-J0FZY3N.png "WT@J0FZY3NY][}X006HHI") | ||
| Cabinet Size（W*H） | 960mm*960mm | ||
| Cabinet resolution | 160*160(dot) | ||
| Viewing angle | H:140°/ V:140° | ||
| Protective Grade | IP65 | ||
| Average Power consumption | 550 Watt/cabinet | ||
| Max Power consumption | 900 Watt/cabinet | ||
| Best View distance | 6-80m | ||
| Weight(kg/pc) | ≤ 55 kg/cabinet (Including power supply/cabinet/LED module etc) | ||
| Material | Iron | ||
| Components | 1. Power Modules | ||
| 2. Fans | |||
| 3. External Power cables & connectors | |||
| 4. Mounting/locking plates between cabinets | |||
| 5. Inter-connecting cables & ribbons (both power and signal) | |||
| TRAILER PART | |||

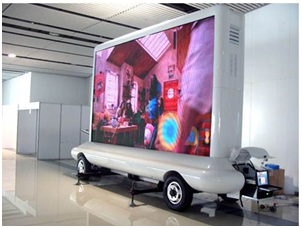

| External Dimension | 7800mm×1800mm×2940mm | ![Q`IT_AKPQD@TFA]_)%@IZYT](http://5irorwxhqkrjrij.leadongcdn.com/cloud/iqBqoKinRijSjikpioin/Q-IT_AKPQD.png "Q`IT_AKPQD@TFA]_)%@IZYT") | |
| Min turning radius | >=16m | ||
| Total weight | 5300kg | ||
| Tire size | 16 inch | ||
| Color | Customized | ||
| Wind resistant system | Using hydraulic support led support,when the screen rises,the highest wind resistent index can reach 8 grade. | ||
| Hydraulic lifting | Max 1.5m | ||
| Rotation | 360° all around | ||
| Electrical System | |||
| input voltage | 380V | ||
| output voltage | 220V | ||
| electricity | 50A | ||
| average power consumption | 0.5wh/㎡ | ||
| Import generators | 16kw | ||
| Multimedia System | |
| power amplifier | 200W |
| speakers | 200W |
| video processor | can support USB/DVD/HDMI/DVI/VGA |
| surface paint | Customized |
| brake | hydraulic brake |
| metal plate structure | cold rolled board |
| Control system and LED | |
| Adopted Control System | PCTV Board + DVI Board + Control Board + Network cable Transmission |
| Video Signal | RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION etc |
| LED parameter | R: (620-623nm) G: (519-522nm) B: (466-467 nm) R: IV(800-1200mcd) G: IV(1800-2300mcd) B: IV(450-520mcd) |
| Brightness Level | Manual adjustment: 256 levels for R, G, B Automatic adjustment: 8 grades for each color |

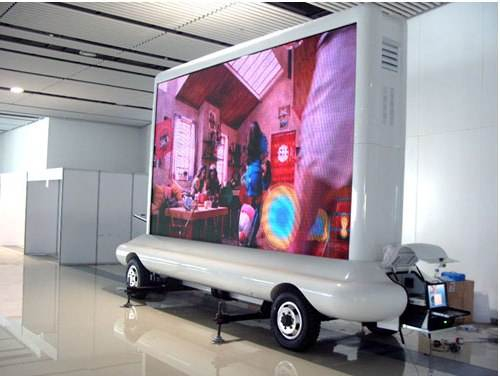

LED Advertising Trailer
1. DIP LED encapsulation confirm the high brightness even under strong sunlight
2. Good protection level waterproof IP65, anti-corrosion,oxidation resistance,long life span
3. Long viewing distance, High definition, Good uniformity
4. Brightness can be adjusted automatically according to different surroundings,
5. Can be set to open and close the screen automatically
6. Can be fixed on the wall, by pole support on the street, on top of building, or for stage rental hanging to meet the request of concert stage background, event show, live broadcasting, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, animation etc, connect with PC computer or network, also can remote control with asynchronous system, Wifi control, 3G control.
7. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
8. P6 P8 P10 type screen is optional.

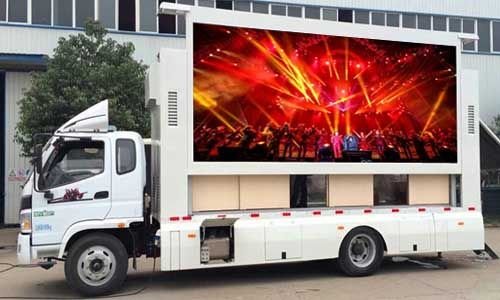

9. We can provide Dongfeng, Foton, FAW, JAC, JMC, SINOTRUK HOWO, or any other Chinese truck chassis brand.
| CLW P6 LED TRAILER | |||
| Item No. | Parameters | ||
| Dot Pixel | P6 | ||
| Display Size | 2 sets, 3840mm*1728mm | ||
| Module Size | 192mm*192mm | ||
| Pixel Configuration | 1R1G1B | ||
| Module Resolution | 32*32(dots) | ||
| Density | 27777dot/m2 | ||
| LED Type | SMD2727 | ||
| Brightness | ≥5500CD/m2 | ||
| Cabinet | | ||
| Cabinet Size（W*H） | 960mm*960mm | ||
| Cabinet resolution | 160*160(dot) | ||
| Viewing angle | H:140°/ V:140° | ||
| Protective Grade | IP65 | ||
| Average Power consumption | 550 Watt/cabinet | ||
| Max Power consumption | 900 Watt/cabinet | ||
| Best View distance | 6-80m | ||
| Weight(kg/pc) | ≤ 55 kg/cabinet (Including power supply/cabinet/LED module etc) | ||
| Material | Iron | ||
| Components | 1. Power Modules | ||
| 2. Fans | |||
| 3. External Power cables & connectors | |||
| 4. Mounting/locking plates between cabinets | |||
| 5. Inter-connecting cables & ribbons (both power and signal) | |||
| TRAILER PART | |||
| External Dimension | 7800mm×1800mm×2940mm | | |
| Min turning radius | >=16m | ||
| Total weight | 5300kg | ||
| Tire size | 16 inch | ||
| Color | Customized | ||
| Wind resistant system | Using hydraulic support led support,when the screen rises,the highest wind resistent index can reach 8 grade. | ||
| Hydraulic lifting | Max 1.5m | ||
| Rotation | 360° all around | ||
| Electrical System | |||
| input voltage | 380V | ||
| output voltage | 220V | ||
| electricity | 50A | ||
| average power consumption | 0.5wh/㎡ | ||
| Import generators | 16kw | ||
| Multimedia System | |
| power amplifier | 200W |
| speakers | 200W |
| video processor | can support USB/DVD/HDMI/DVI/VGA |
| surface paint | Customized |
| brake | hydraulic brake |
| metal plate structure | cold rolled board |
| Control system and LED | |
| Adopted Control System | PCTV Board + DVI Board + Control Board + Network cable Transmission |
| Video Signal | RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION etc |
| LED parameter | R: (620-623nm) G: (519-522nm) B: (466-467 nm) R: IV(800-1200mcd) G: IV(1800-2300mcd) B: IV(450-520mcd) |
| Brightness Level | Manual adjustment: 256 levels for R, G, B Automatic adjustment: 8 grades for each color |
LED Advertising Trailer
1. DIP LED encapsulation confirm the high brightness even under strong sunlight
2. Good protection level waterproof IP65, anti-corrosion,oxidation resistance,long life span
3. Long viewing distance, High definition, Good uniformity
4. Brightness can be adjusted automatically according to different surroundings,
5. Can be set to open and close the screen automatically
6. Can be fixed on the wall, by pole support on the street, on top of building, or for stage rental hanging to meet the request of concert stage background, event show, live broadcasting, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, animation etc, connect with PC computer or network, also can remote control with asynchronous system, Wifi control, 3G control.
7. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
8. P6 P8 P10 type screen is optional.
9. We can provide Dongfeng, Foton, FAW, JAC, JMC, SINOTRUK HOWO, or any other Chinese truck chassis brand.
