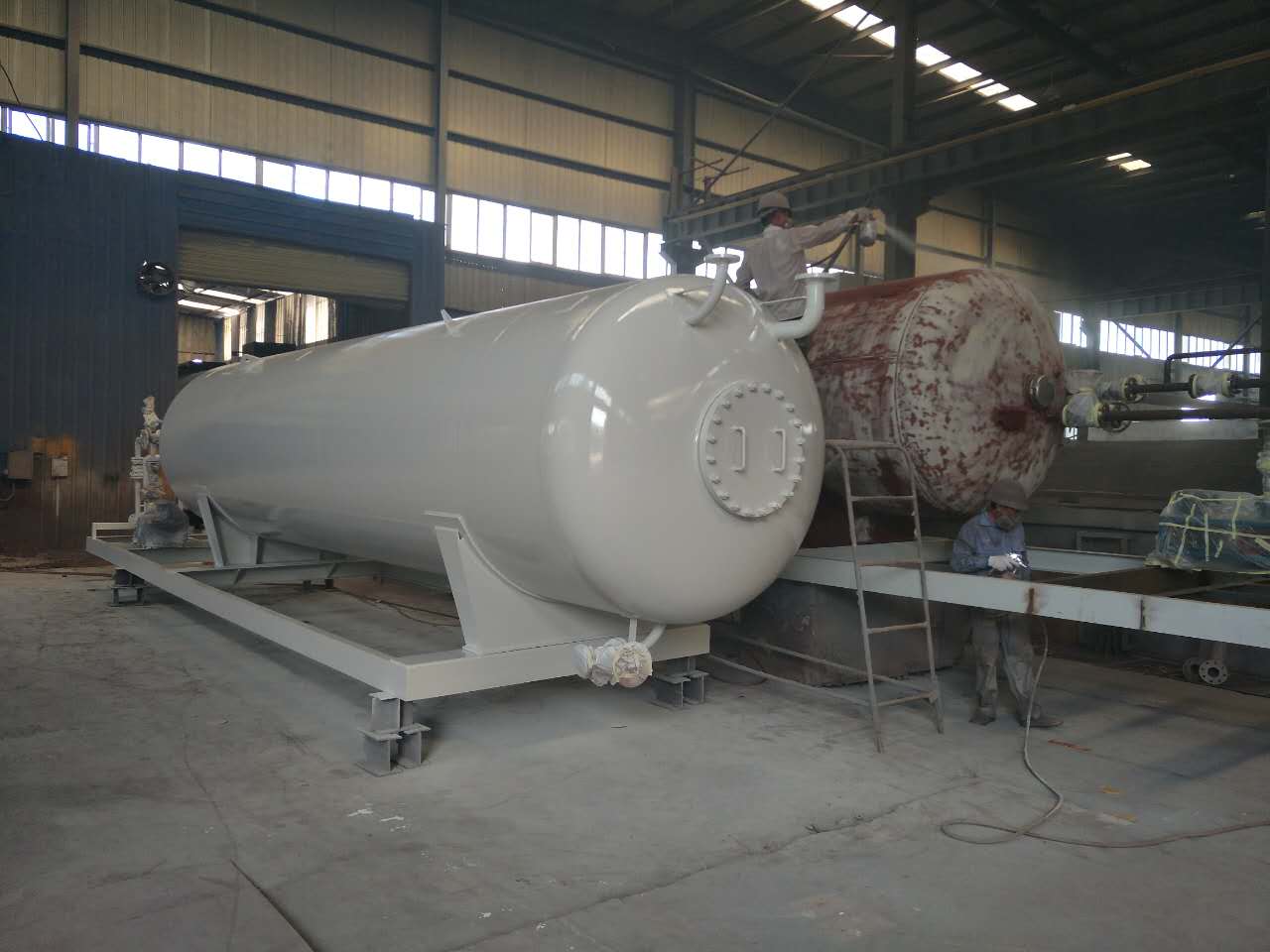

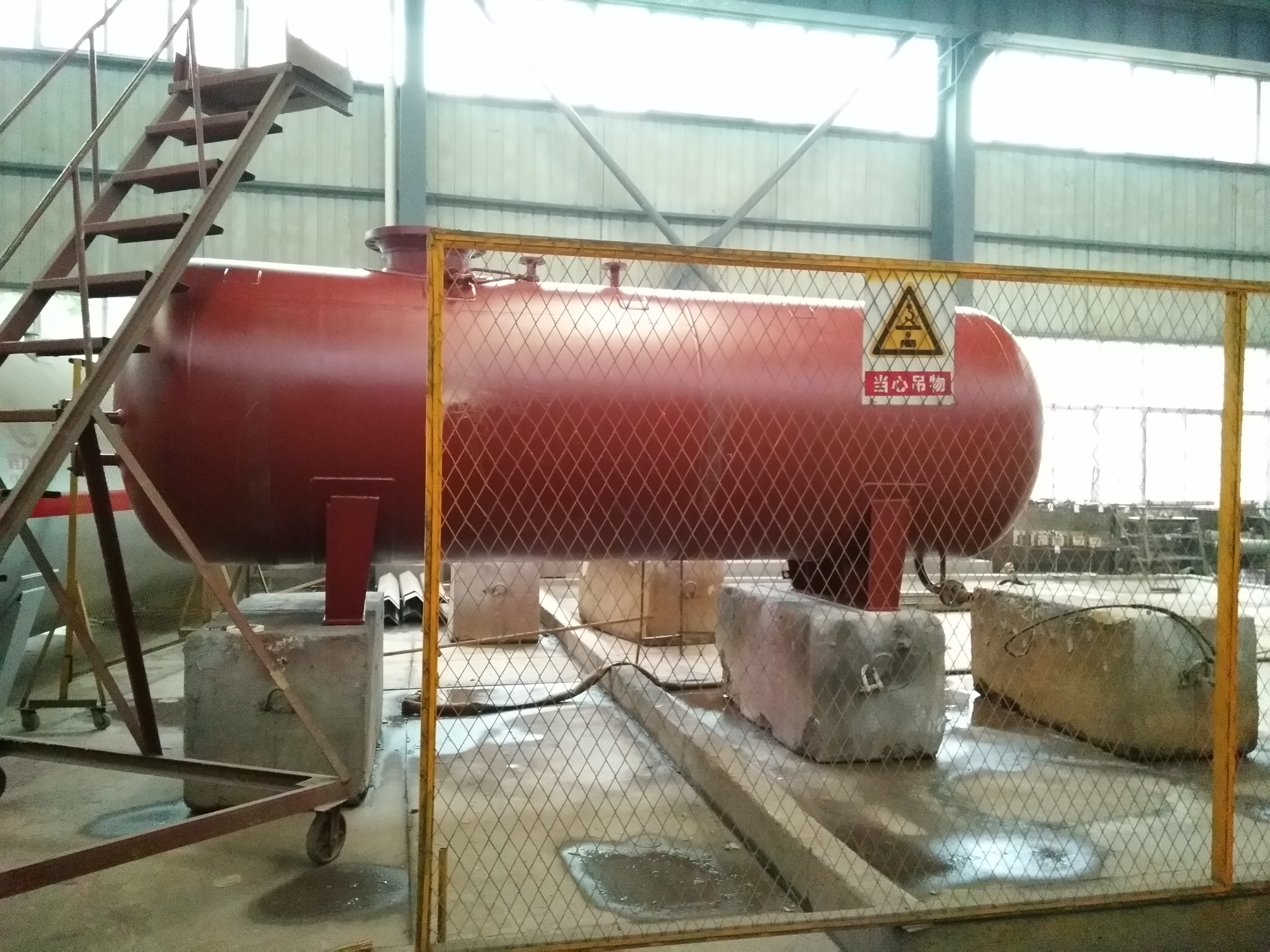

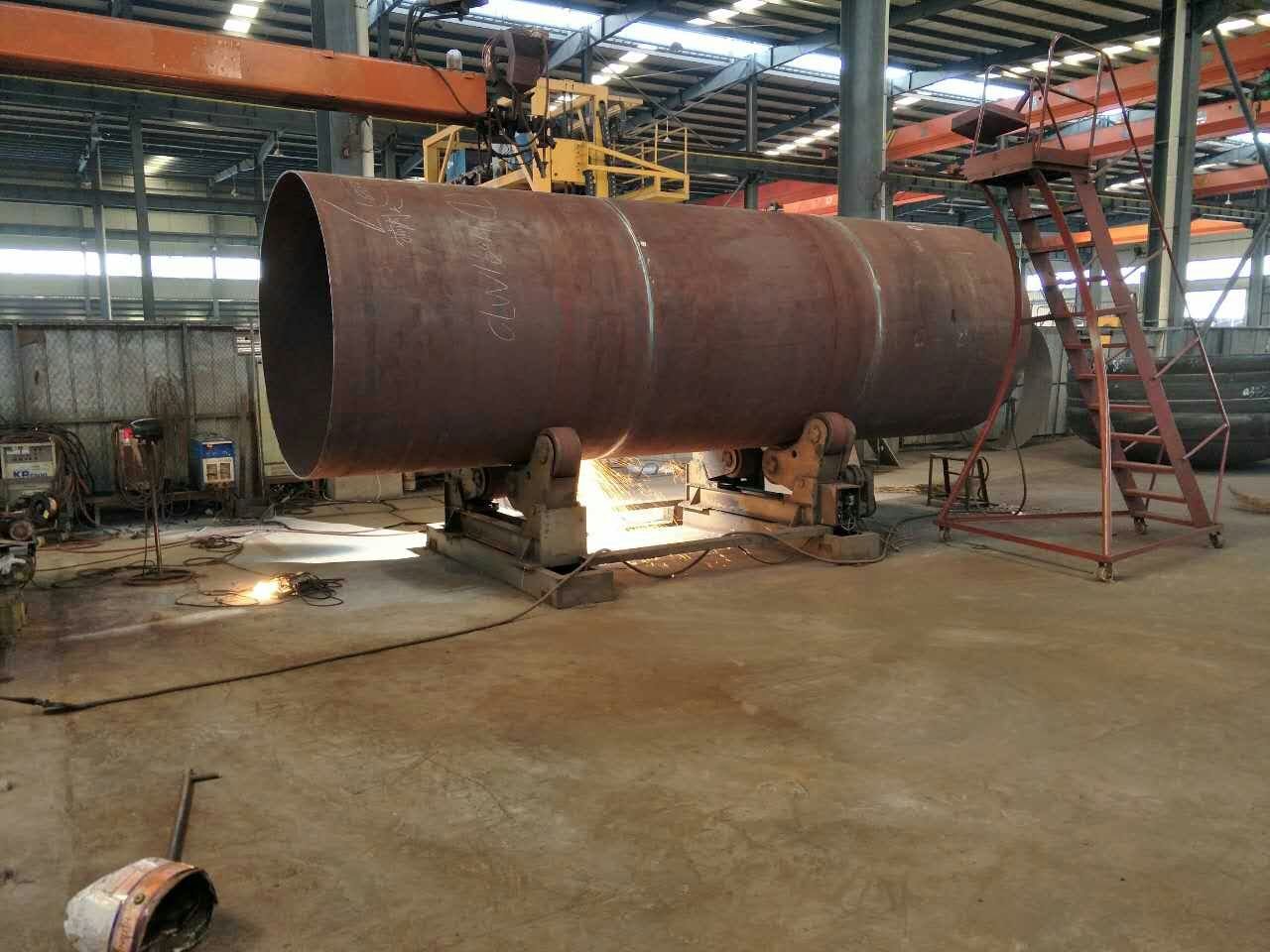

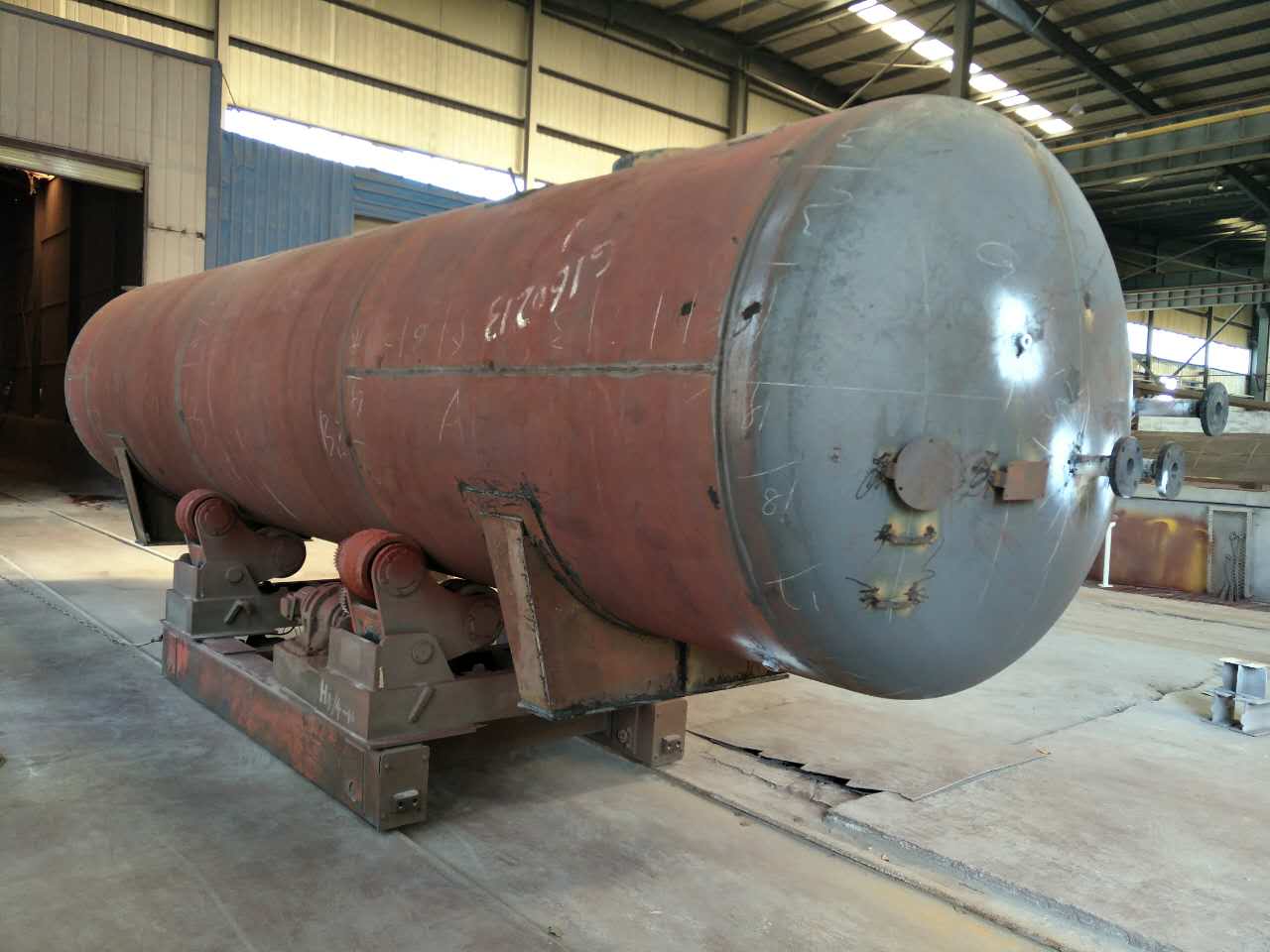

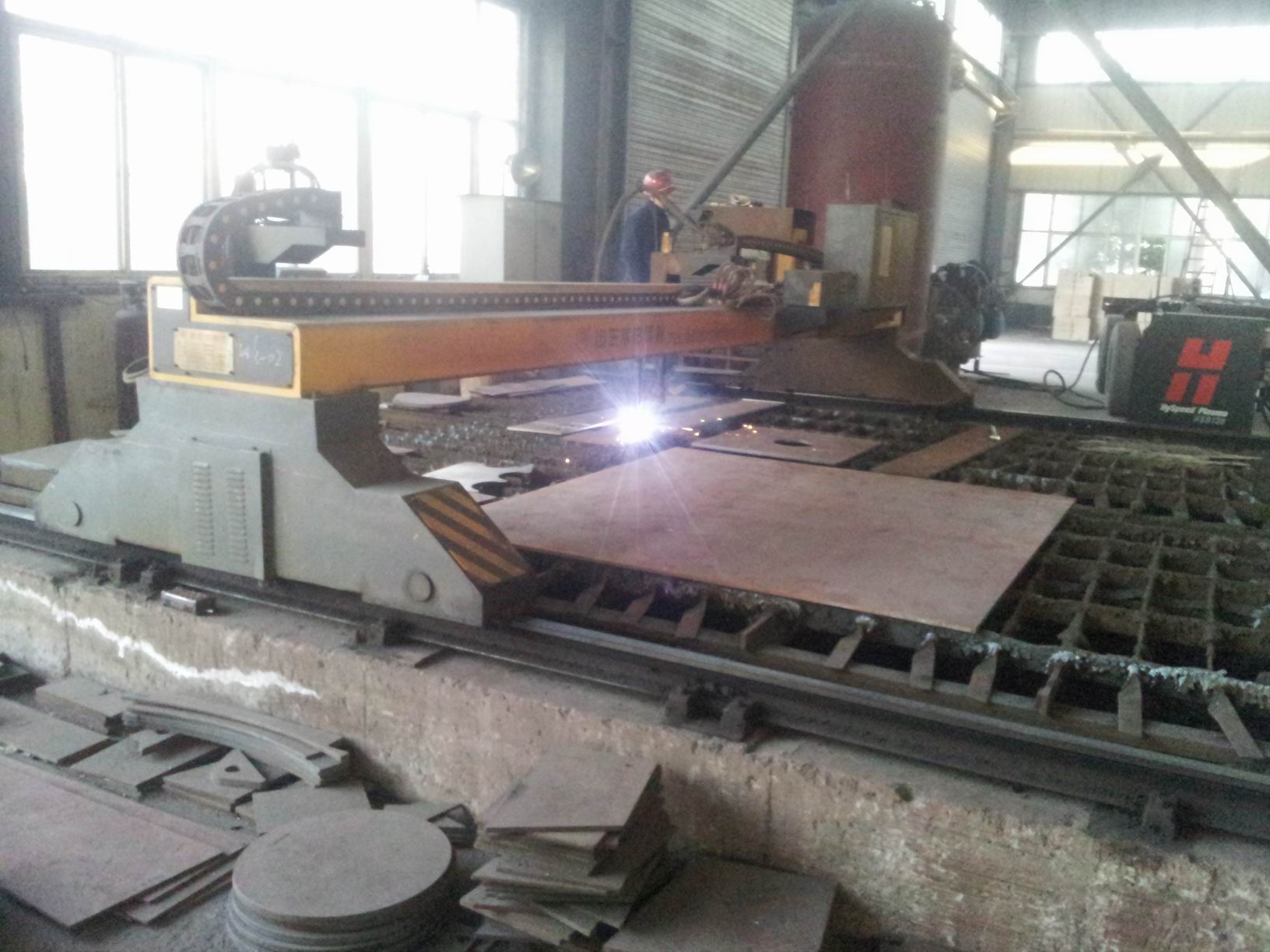

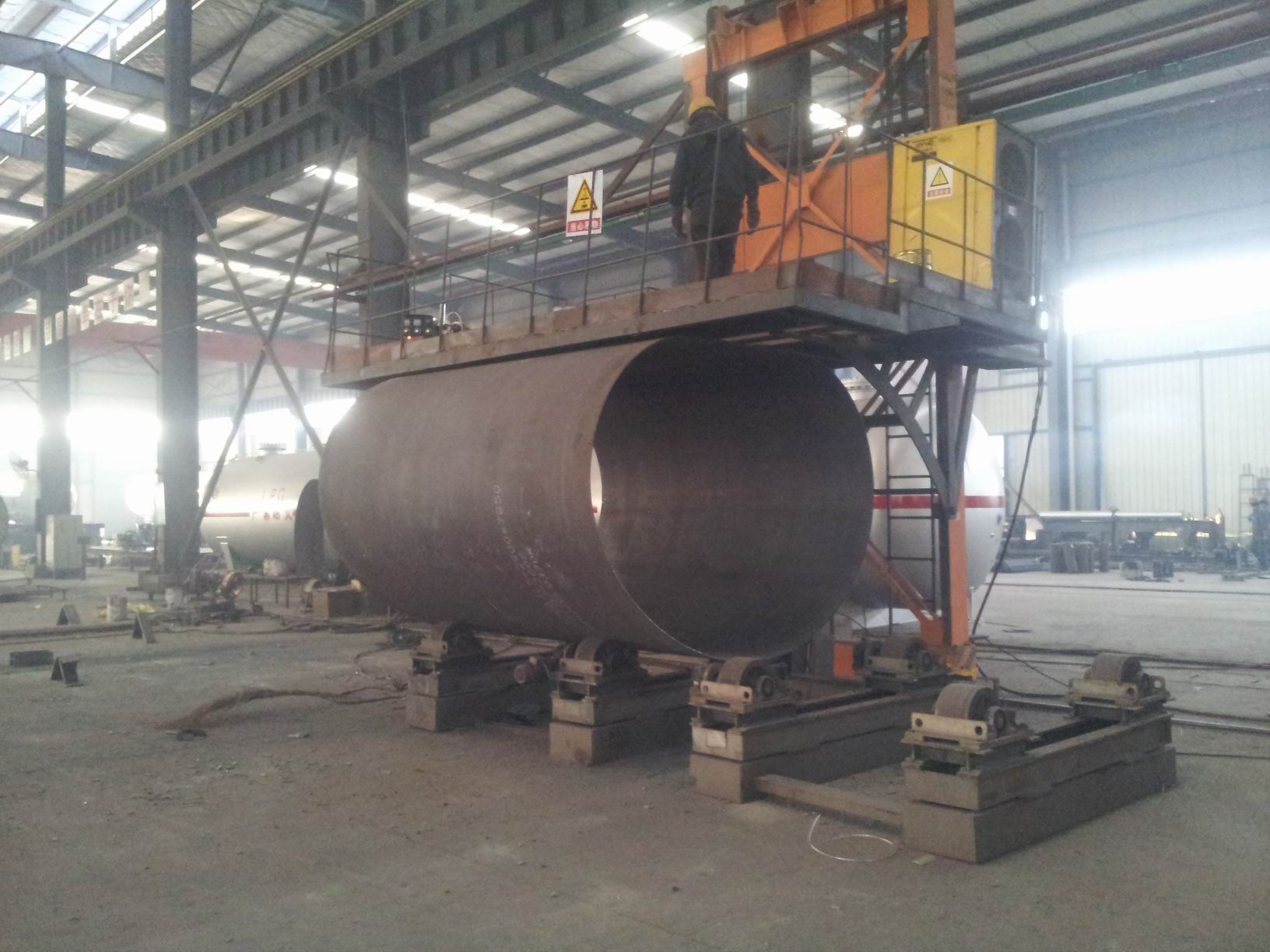

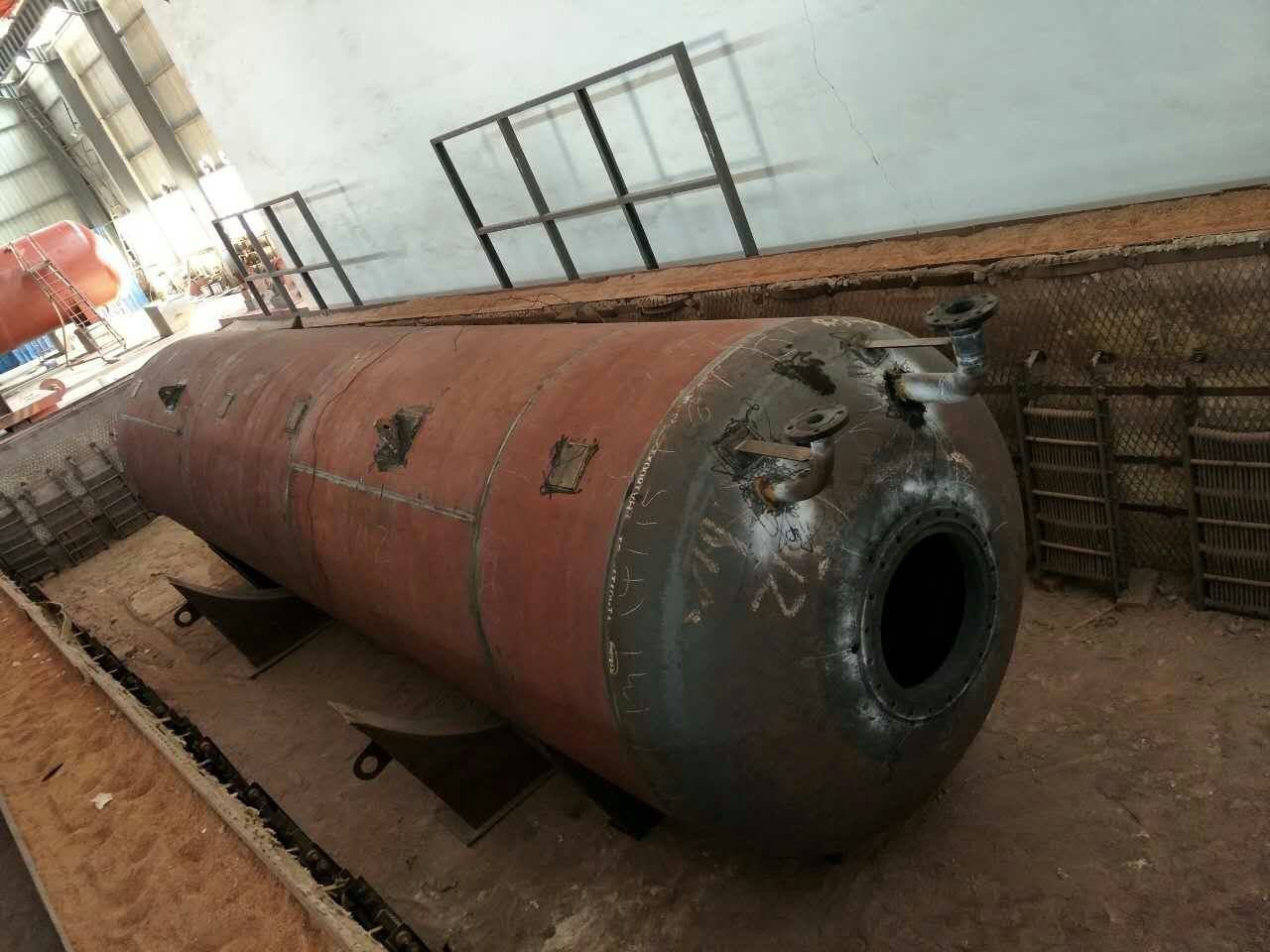

10 CBM LPG TANK DIMENSIONS | |||
Volume of Tank | 10 CBM | ||
Filling Weight | 5000kg | ||
Tank Weight | 2950 kg | ||
Thickness of Shell (mm) | 10 mm | ||
Thickness of Endplate (mm) | 10 mm | ||
Tank Diameter (mm) | 1600 mm | ||
Tank Dimensions (mm) (length x width x height) | 5260 x1620x2210 mm | ||
External Dimensions (mm) (length x width x height) | As designed to Load in a 40’HQ Container | ||
Material of Tank | Carbon Steel Q345R | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Design Pressure | 1.77 MPa | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 420-590 kg/ cbm | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification/ mm | Quantity | |
Discharge Pipe | DN50 | 1 | |
Inflow Pipe | DN50 | 1 | |
Outlet | DN50 | 1 | |
Gas phase balance pipes | DN50 | 2 | |
Manhole | DN450 | 1 | |
Drain Hole | DN50 | 1 | |
Other accessories：Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||

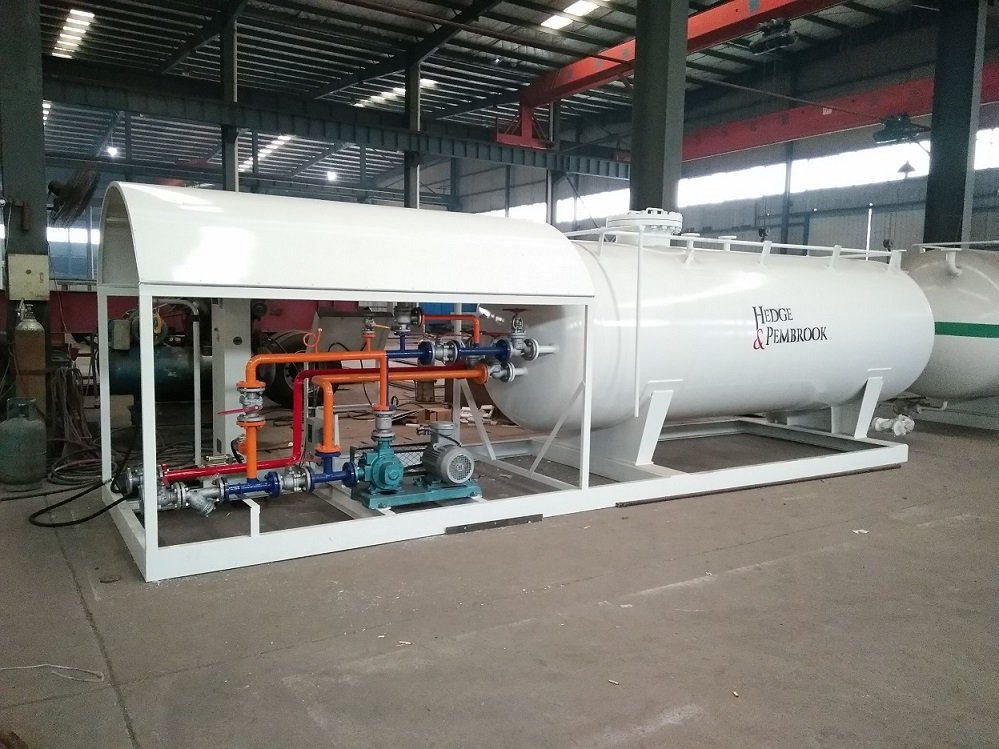

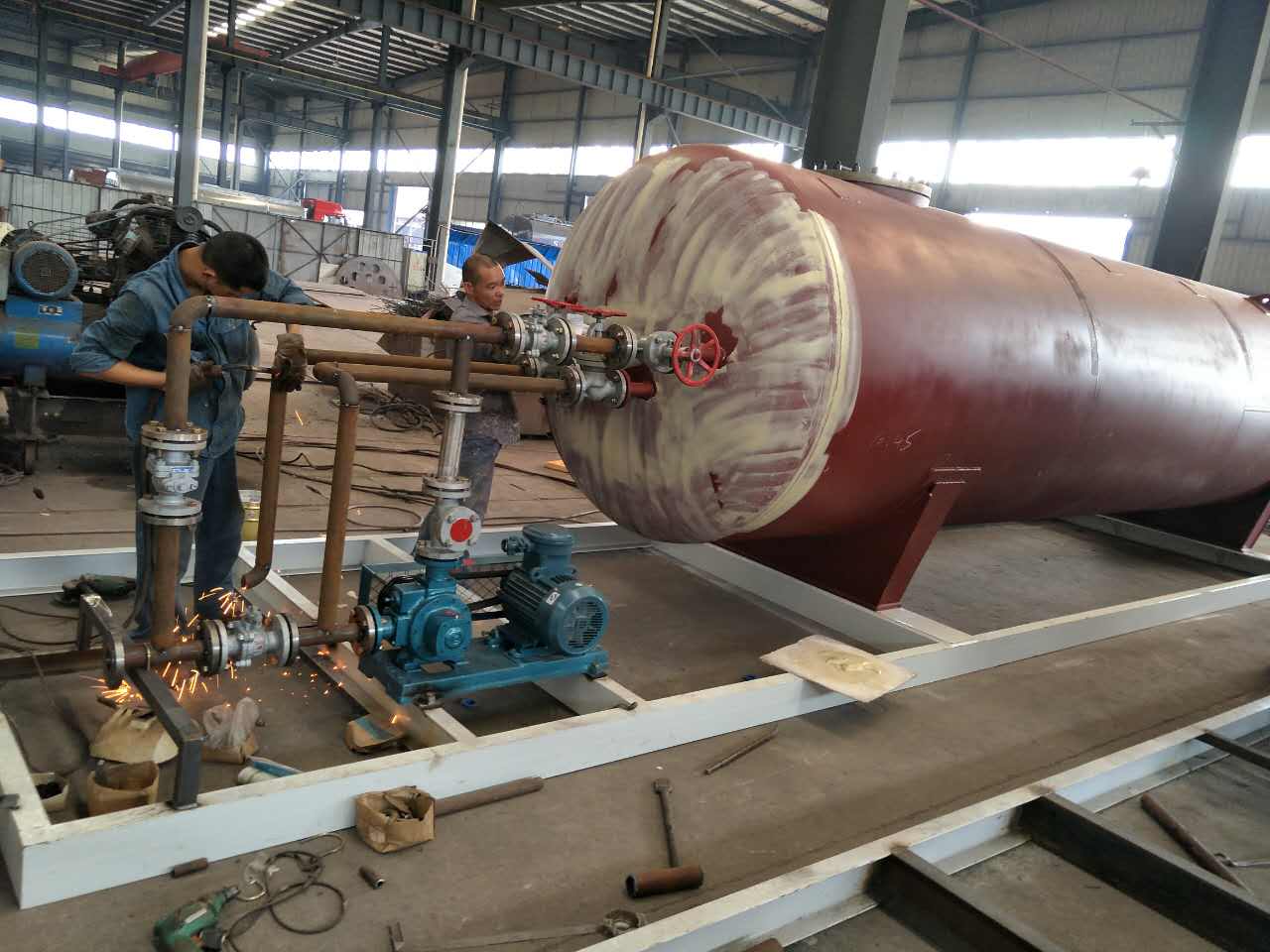

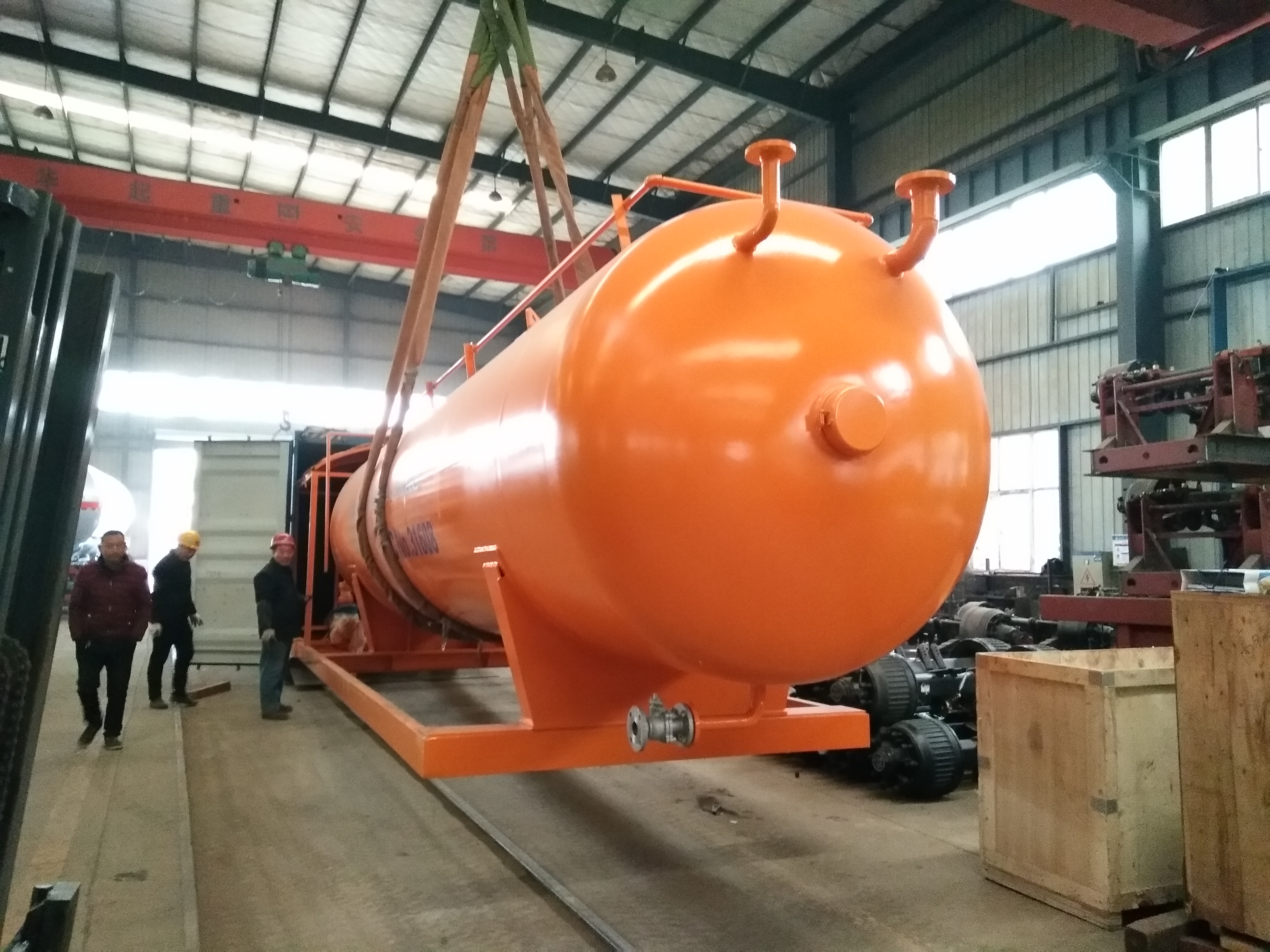

LPG Skid Part list | ||||
Item | Model Number | Quantity | ||
LPG Tanker | 10 cbm | 1 piece | ||
Pump | 2" inlet & 2" outlet | 1 Piece | ||
Explosive-proof Motor | 380V with 220V adapter | 1 Piece | ||
Weighting Scale | Can fill 0.5kg to 150kg LPG cylinder | 1 Piece | ||
Pipes | / | 1 Sets | ||
J41N-40 DN50 | ||||
J41N-40 DN15 | 10 Pieces | |||
Safety Valve | A42F-25 DN50 | |||
Pipe Safety Valve | A21F-25 DN15 | 1 Piece | ||
Level Gauge | Float ball type | 1 Unit | ||
Discharging pipe | L=4M DN50/DN25 | 1 Piece | ||
Shock-absorbing Tube | L=500mm DN50 | 2 Pieces | ||
Flange | 2.5MPaDN15 | 20 Pieces | ||

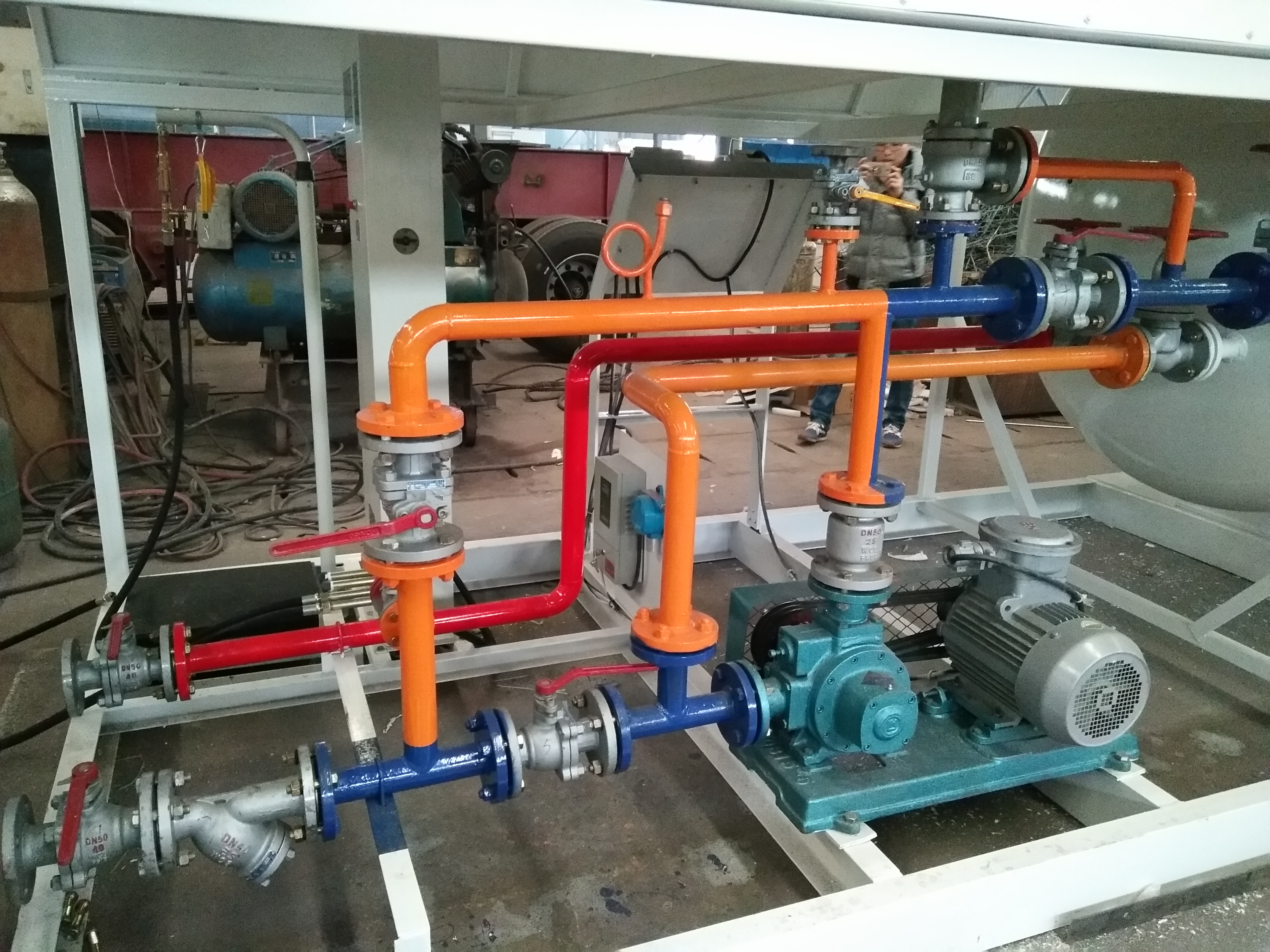

LPG Pump & Motor Specification | ||||
| Pump Brand | Chinese brand | ||
Model | YQB15-5 | |||
Medium | Liquid petroleum gas | |||
Working pressure differential | ≤0.5Mpa | |||
Flow Speed | 15.5M3/H | |||
Applied Power | 5.5kw | |||
Inlet & Outlet Flange | 2”NPT / 2" NPT | |||
Motor | Chinese brand | |||
Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable | |||

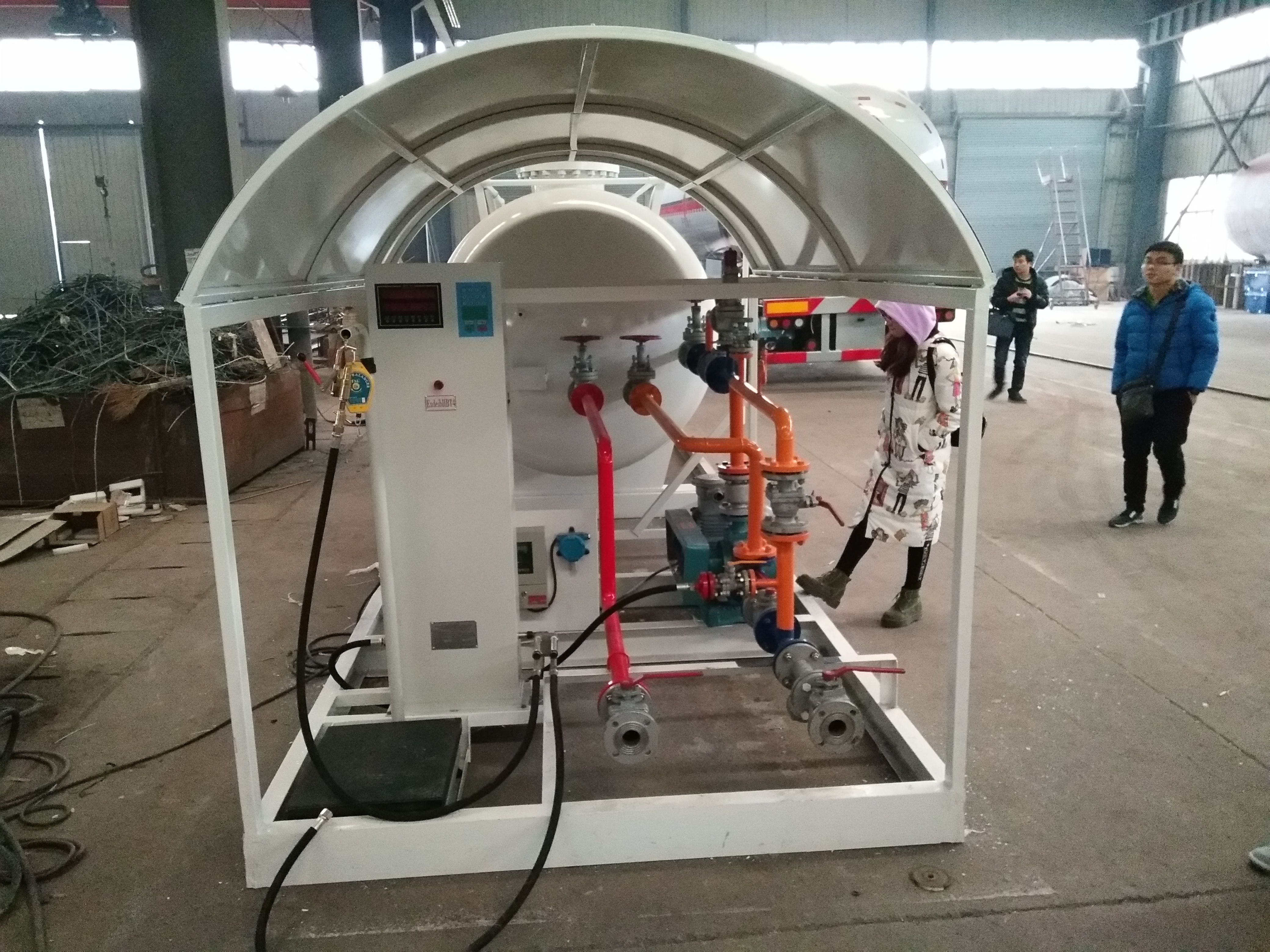

LPG Cylinder Filling Machine Specification | ||||
| Brand | Kaiyuan | ||
Model | BCS-150 | |||
Electricity Voltage | AC220V | |||
Power | 40W | |||
Maximum Weighing | 150kg | |||
Measurement Precision | ±0.5% | |||
Rated Working Pressure | 1.6Mpa | |||
Working Temperature | -40℃~+40℃ | |||
Anti-explosion Rate | Exhibit II BT4 | |||
