10 CBM LPG TANK DIMENSIONS | |||
Volume of Tank | 10 CBM | ||
Filling Weight | 5000kg | ||
Tank Weight | 2950 kg | ||
Thickness of Shell (mm) | 10 mm | ||
Thickness of Endplate (mm) | 10 mm | ||
Tank Diameter (mm) | 1600 mm | ||
Tank Dimensions (mm) (length x width x height) | 5260 x1620x2210 mm | ||
External Dimensions (mm) (length x width x height) | As designed to Load in a 40’HQ Container | ||
Material of Tank | Carbon Steel Q345R | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Design Pressure | 1.77 MPa | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 420-590 kg/ cbm | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification/ mm | Quantity | |
Discharge Pipe | DN50 | 1 | |
Inflow Pipe | DN50 | 1 | |
Outlet | DN50 | 1 | |
Gas phase balance pipes | DN50 | 2 | |
Manhole | DN450 | 1 | |
Drain Hole | DN50 | 1 | |
Other accessories：Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||

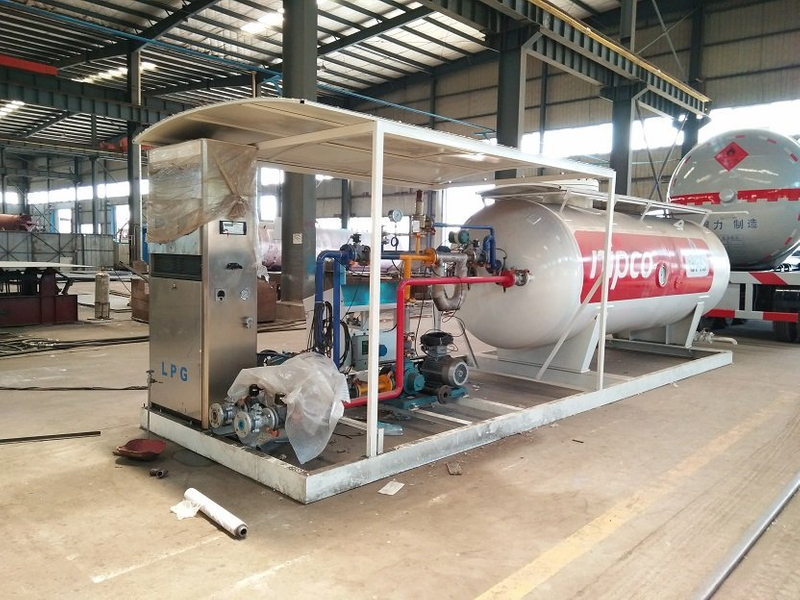

LPG Skid Part list | |||
Item | Model Number | Quantity | |
LPG Tanker | 10 cbm | 1 piece | |
Pump | 2" inlet & 2" outlet | 1 Piece | |
Explosive-proof Motor | 380V with 220V adapter | 1 Piece | |
Filling machine | Can fill cylinder and car cylinder,double nozzles | 1 Piece | |
Pipes | / | 1 Sets | |
Cut-off Valve | J41N-40 DN50 | 25 Pieces | |
J41N-40 DN15 | 10 Pieces | ||
Safety Valve | A42F-25 DN50 | 1 Piece | |
Pipe Safety Valve | A21F-25 DN25 | 1 Piece | |
Level Gauge | Float ball type | 1 Unit | |
Discharging pipe | L=4M DN50/DN25 | 1 Piece | |
Shock-absorbing Tube | L=500mm DN50 | 2 Pieces | |
Flange | 2.5MPaDN15 | 20 Pieces | |
LPG Pump & Motor Specification | |||
| Pump Brand | Chinese brand | |
Model | YQB15-5 | ||
Medium | Liquid petroleum gas | ||
Working pressure differential | ≤0.5Mpa | ||
Flow Speed | 15.5M3/H | ||
Applied Power | 5.5kw | ||
Inlet & Outlet Flange | 2”NPT / 2" NPT | ||
Motor | Chinese brand | ||
Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable | ||
LPG Filling Machine Specification | |||
2XFlow meter;2XFilling Nozzles;4XDisplay Screens;2XKeyboard; External Dimension:1000X500X2050mm Power supply:AC220V±20%（50±1HZ; Power cable:RVV3X2.5PVC Communication Cable:RVVP 4X0.5PVC shield cable; Flow Rate:1~45L/min; Rated working voltage:2.2Mpa; Gas filling preset range:0.3~9000 liters Density preset range:0.5000~0.6999; The digits numbers shown on display screen Automatic Temperature Compensation function; | |||
