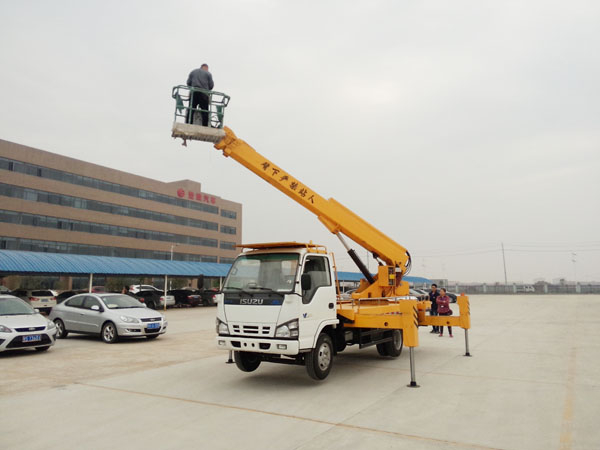

16 Meters Telescopic Type Aerial Platform Truck

Aerial platform operation truck have two main products: Telescopic type and folding type. The folding type is the main basic products. The height can be from 10 meters to 28 meters. The Telescopic boom type aerial platform truck are hottest used in power line repairing and other high altitude operation. That is also why the Aerial platform truck called high atitude operation trucks.

Quantity:
  • CLW50160GKC
  • CLW



Aerial platform truck(14 meters)

Description

CLW ISUZU 14 M Aerial Platform Truck

Manufacturer

CLW Group,China

Drive Model

4x2 , Right hand drive

Condition

New condition

Country origin

CHINA

Vehicle--Truck chassis

Manufacturer of chassis

ISUZU  700P

Country origin of chassis

CHINA

Status

Good, new condition

Gear box

Manual type

Air conditioning

include

Platform crane height

14 meters

Delivery time

60 days after receiving the deposit.

Validity

90 days from the quoted date.

Warranty

12 months for the three key parts (Engine, gearbox and axle)

Vehicle Main Dimensions

Dimensions(L x W x H)(mm)

7240*2200*3350

Wheel base (mm)

3360 mm

Overhang (front/rear) (mm)

1015/1975 mm

Wheel track (front/rear) (mm)

1504/1425mm

Approach/Departure angle(°)

24/13

Weight in KGS

Curb Weight

7 000 kg

GVW

5105 kg

Max. driving speed(km/h)

90

Engine

Model

4HK1-TCG40 ,190HP, Diesel type

Brand

ISUZU engine

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

190 HP,   Euro 4

Transmission

MSB, 5 forwards & 1 reverse

Clutch

Reinforced diaphragm clutch

Suspension

Mechanical suspension

Steering Gear

Power steering, hydraulic steering with power assistance

Brake system

Dual circuit compressed air brake

Electric system

12/24VDC

Cab

DONGFENG Standard cabin

Tire

7.00-16 , 6pcs + 1 spare



Ltem

Unit

Parameter

Max. Working radius最大工作幅度

m

9.4

Max. Working height最大工作高度

m

16

Working turning radius工作斗回转角度

360° full turning

Width of the outriggers支腿跨距

mm

4000*4000

Max. Flow speed of hydraulic system液压系统最大流量

L/Min

30

Rater pressure of hydraulic system液压额定系统压力

MPa

20

Operation manuals操作方式

-

Rate control +Manual operation 全遥控+手动应急操作

Working temperature使用环境温度

-20~+60


Rated loading capacity 工作斗额定载荷

Kg

200

Dimension of working 工作斗尺寸(长**高)

mm

1000*650*1200

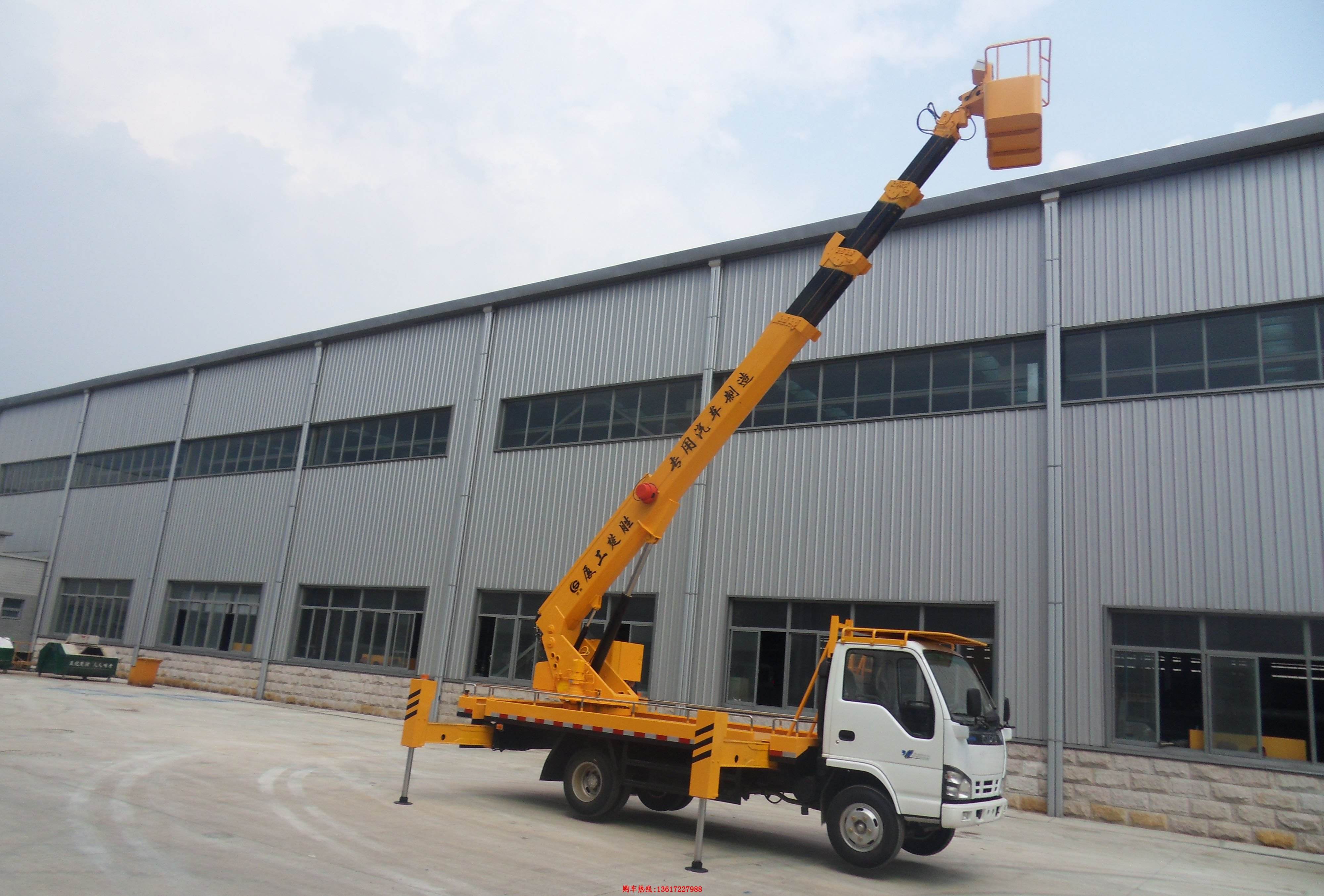

 Aerial platform truck .jpg
