Tipper Semi Trailer
CLW
CLW5310Dumper Semi Trailer
3 Axle 25CBM 60Ton U Shape Tipping Dump Tipper Semi Trailer
DIMENSIONS | |
Tare Weight | 11500kgs |
Payload | 35000kgs |
Overall Length | 8500mm |
Overall Width | 2465mm |
Dump body size | 6600mmx2300mmx1200mm |

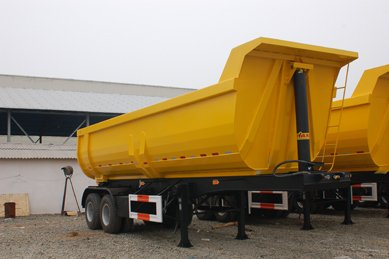

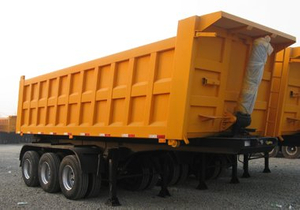

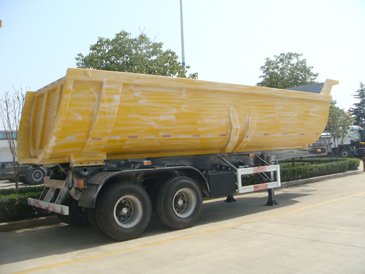

Photo for reference, final produce can be made according to exact requirements | |
DUMPER BODY | |
Volume | 18 m3 |
Side Wall | 4mm thickness |
Front Wall and floor | 6 mm thickness |
SPECIFICATION | |
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. |
Axle | 2 axles |
BPW brand 13 Ton, FUWA brand is optional | |
Hydraulic System | One set of HVYA cylinder |
Suspension | German design mechanical suspension |
Leaf Spring | 8-piece leaf spring. 11x100 |
King Pin | JOST brand 2” Bolt-in King Pin |
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear |
Wheel Rim | 8.25R22.5 wheel rim, 9 pieces including one spare |
Tyre | 11R22.5 tubeless tire, 9 pieces including one spare |
Spare Tire | One set of spare tire including a carrier |
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Company Introduction
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.
l More than 15 years' experience as a manufacturer
l Competitive Price and Excellent Quality
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 800 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
l Annual production value topped 240,000,000 US dollars per year
Customized Truck & Trailer Solutions to Meet Your Requirements
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
