Tipper Semi Trailer
CLW
CLW5310Dumper Semi Trailer
3 Axle 24CBM 40 Ton Tipping Dump Tipper Semi Trailer
DIMENSIONS | |
Tare Weight | 12500kgs |
Payload | 45000kgs |
Overall Length | 8500mm |
Overall Width | 2465mm |
Dump body size | 7000mmx2300mmx1500mm |

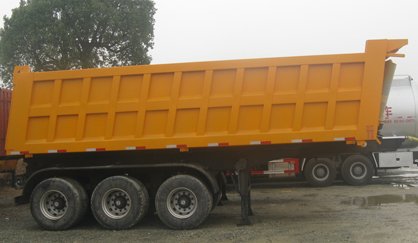

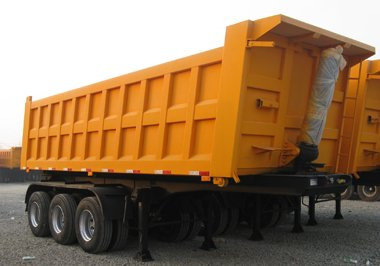

Photo for reference, final produce can be made according to exact requirements | |
DUMPER BODY | |
Volume | 24 m3 |
Side Wall | 6mm thickness |
Front Wall and floor | 8mm thickness |
Loading condition | Sand or earth |
SPECIFICATION | |
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. |
Axle | 3 axles |
BPW 13T , FUWA 13T , L1 13 T are optional (BPW is German brand) | |
Hydraulic System | One set of HYVA cylinder |
Suspension | German design mechanical suspension |
Leaf Spring | 13-piece leaf spring. 11x100 |
King Pin | JOST brand 2” Bolt-in King Pin |
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear |
Wheel Rim | 9.00R22.5 wheel rim, 13 pieces including one spare |
Tyre | 12R22.5 tubeless tire, 13 pieces including one spare |
Spare Tire | One set of spare tire including a carrier |
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks |
Painting | Complete Chassis sand blasting to clean rust, 1 coat anticorrosive prime, 2 coats final paint |
Accessories | One standard tool box |
Company Introduction
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.
l More than 15 years' experience as a manufacturer
l Competitive Price and Excellent Quality
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 800 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
l Annual production value topped 240,000,000 US dollars per year
Customized Truck & Trailer Solutions to Meet Your Requirements
