CLW-1050
CLW
Speical description:
1. Fecal suction pipe can rotate 360,There are two ways of disvharge: pressure discharge and artesian emissions.
2.Time to suction manure for full tank ≤5min, suction lift≥7m ,the rotate speed of pump is 1400r/min.
3.Vacuum suction can self-load and self-discharge.
4.Suction truck dedicated in part by the PTO, shaft, vacuum sewage pumps, high pressure molding tank, water and gas separator, oil separation, multi-valve, boom, put manure valve, fecal suction gun, pipe network system components, and is equipped with a vacuum gauge, depending on dirty window (tube), hand-washing device.
5.Quipped with imported antioverflow system to prevent manure.sewage floe back to vacuum pump system when it is full of tank.
Technique Parameters:

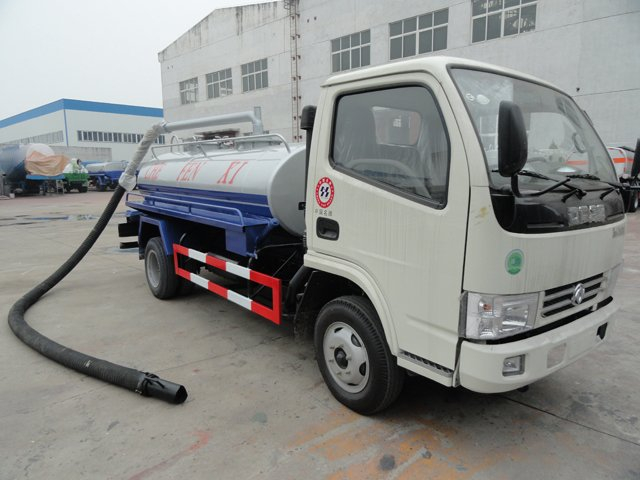

| 2WD 6 Wheels 5tons Dongfeng 4x2 Vacuum Fecal suction truck | ||||
| Model No. | EQ1040 | Axles | 2 | |
| G.V.W(Kg) | 4495 | Tank effective volume(m3) | 5 | |
| Curb weight(Kg) | 2875 | Overall dimension (mm) | 5995×2000×2350 | |
| Cab | 2 or 3 passengers,without A/C | Axles Load(Kg) | 2030/2465 | |
| Emission Standard | Euro II/III/IV/IIV | Front/rear suspension (mm) | 1032/1663 | |
| Approach/departure angle (°) | 19/13 | Front/rear Tread(mm) | 1585/1530 | |
| Wheelbase(mm) | 3300 | Max speed(Km/h) | 90 | |
| Leaf of springs | 8/9+5,6/8+4 | Tire | 7.00-16 | |
| Gear box | 5 forwarders&1 reverse , 2T front axle,3T rear axle | |||
| Braking system | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |||
| Engine Model | Manufacture | Displacement(ML) | Rated Power(Lw) | |
| CY4102 | Chaochai | 3856 | 70 | |
| Other data | Effective tank volumn(m3) | 5 | Side protective device material | Q235 carbon steel |
| Vacuum(mmHg) | 500 | Time for full suction(min) | <5 | |
