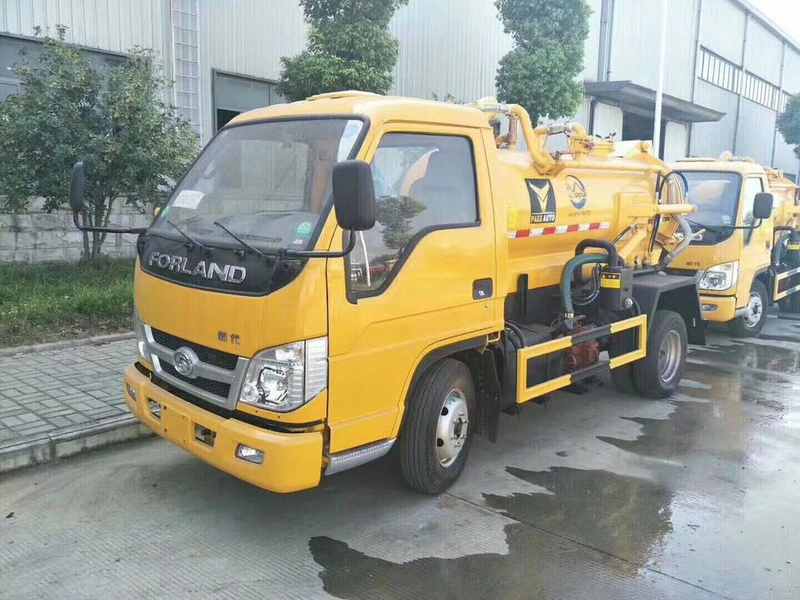

Foton 4x2 3m3 Small Fecal Suction Cleaning Tank Truck

1. Drive model: 4x2; 2WD
2. Fecal tanker volume: 3CBM
3. Vacuum pump: China local brand

Quantity:
  • CLW-1050
  • CLW

Speical description:
1. Fecal suction pipe can rotate 360,There are two ways of disvharge: pressure discharge and artesian emissions.
2.Time to suction manure for full tank ≤5min, suction lift≥7m ,the rotate speed of pump is 1400r/min.
3.Vacuum suction can self-load and self-discharge.
4.Suction truck dedicated in part by the PTO, shaft, vacuum sewage pumps, high pressure molding tank, water and gas separator, oil separation, multi-valve, boom, put manure valve, fecal suction gun, pipe network system components, and is equipped with a vacuum gauge, depending on dirty window (tube), hand-washing device.
5.Quipped with imported antioverflow system to prevent manure.sewage floe back to vacuum pump system when it is full of tank.


Technique Parameters:

General Vehicle Brand GLS
Chassis Brand Forland
Overall Dimension 5670x1900x2340 mm
GVW / Kerb Weight 6,300 kg / 3,160 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is optional
Chassis Drive Type 4x2 right hand drive, power assisted steering
Fuel Type Diesel
Engine Make & Model Foton Engine
Power 108 Hp (80 KW)
Displacement 3500 ml
Emission Standard Euro II
Transmission 5 front and 1 reverse
Wheelbase/No. of axle 3360 mm / 2
Tyre Specification 7.00-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Tank Capacity 3,000 Litres
Tank Material Carbon Steel
Vacuum Pump Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.
Hose High quality, wire strengthened hose
Rear door can be hydraulic opened for complete discharge of solid stuff.
All necessary accessories: anti-fill valve, level indicator, inlet, discharge, high quality suction hose, etc.
Optional ** Tank material could be carbon steel, stainless steel.
** Vacuum pump could be imported brand.

Details pictures:

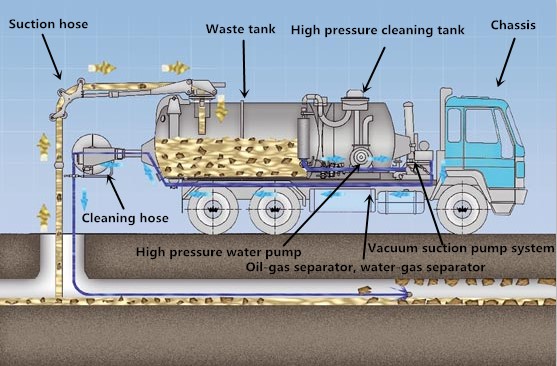

Schematic diagram 清洗吸污车



Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

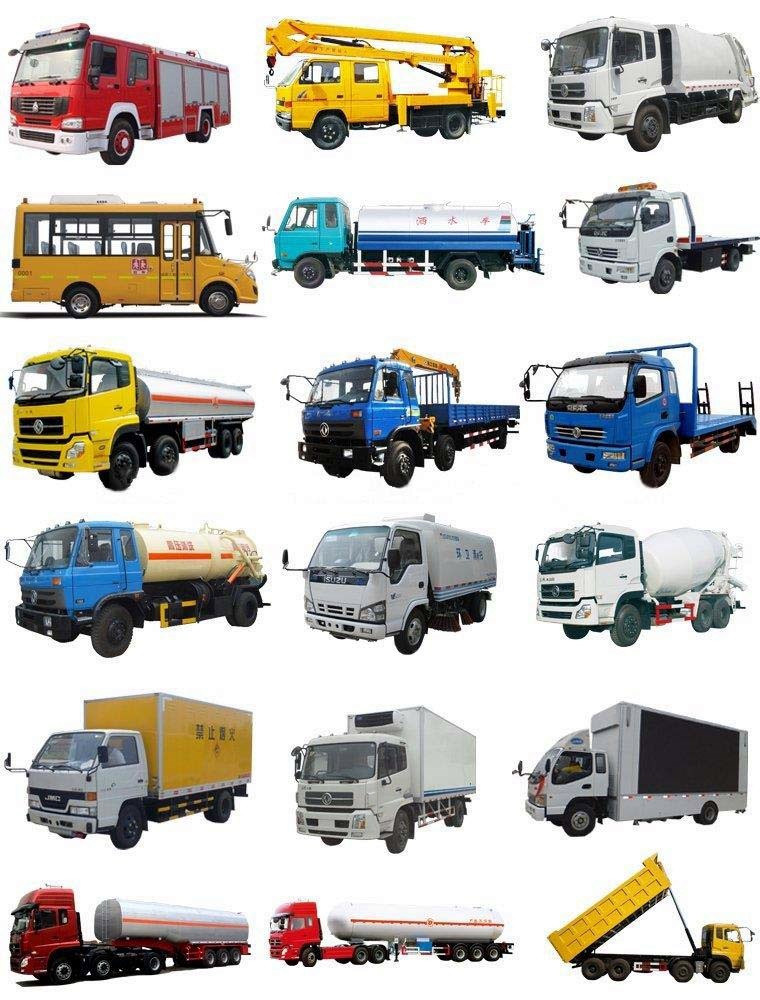

related products
