CLW5109LPG
10000liters LPG Gas Filling Plant 5mt Completed Propane Bottling Plant for AARANO
Product Description
LPG gas filling station/plant is the main product of clw groupexporting for Nigeria market. Chengli special automobile co.,ltd had experienced 6 years for LPG storage tank, filling station and tanker trailer/trucks' exporting. Which is well known brand in Nigeria and othe LPG iinternational market.
1. Storage medium of LPG Gas Filling Plant : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of LPG Gas Filling Plant : 5000liters,10000liters,12000liters,20000liters,25000lliters,32000liters...
3. Manufacturing standards of LPG Gas Filling Plant : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Optional parts of LPG Gas Filling Plant :corken or blackmer pump and abb motor,lpg dispenser,lpg cylinder filling scale,Rochester level gauge,volume flow meter...

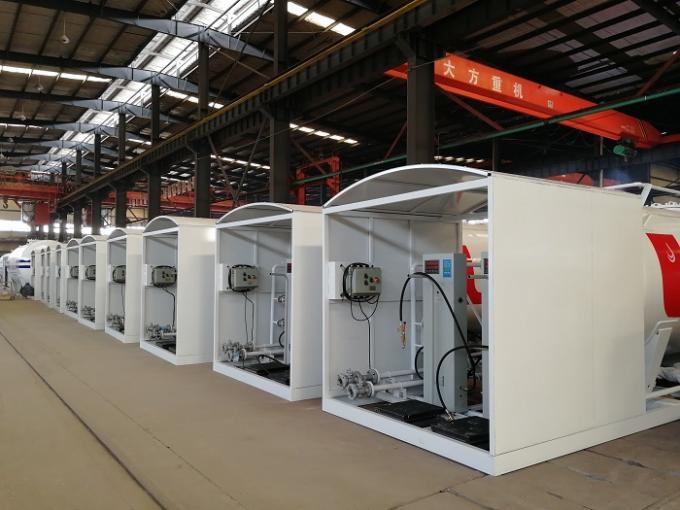

Specification of 10000liters LPG Gas Filling Plant 5mt Completed Propane Bottling Plant for AARANO
| 10 CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 10 CBM | ||
| Filling Weight | 5000kg | ||
| Tank Weight | 2950 kg | ||
| Thickness of Shell (mm) | 10 mm | ||
| Thickness of Endplate (mm) | 10 mm | ||
| Tank Diameter (mm) | 1600 mm | ||
| Tank Dimensions (mm) (length x width x height) | 5260 x1620x2210 mm | ||
| External Dimensions (mm) (length x width x height) | As designed to Load in a 40’HQ Container | ||
| Material of Tank | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-590 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification/ mm | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
| LPG Skid Part list --info@clwvehicle.com | |||
| Item | Model Number | Quantity | |
| LPG Tanker | 10 cbm | 1 piece | |
| Pump | 2" inlet & 2" outlet | 1 Piece | |
| Explosive-proof Motor | 380V with 220V adapter | 1 Piece | |
| filling scales | Can fill cylinder and car cylinder,double nozzles | 2 Pieces | |
| Pipes | / | 1 Sets | |
| Cut-off Valve | J41N-40 DN50 | 25 Pieces | |
| J41N-40 DN15 | 10 Pieces | ||
| Safety Valve | A42F-25 DN50 | 1 Piece | |
| Pipe Safety Valve | A21F-25 DN25 | 1 Piece | |
| Level Gauge | Float ball type | 1 Unit | |
| Discharging pipe | L=4M DN50/DN25 | 1 Piece | |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces | |
| Flange | 2.5MPaDN15 | 20 Pieces | |
| LPG Pump & Motor Specification | |||
| Pump Brand | Chinese brand | ||
| Model | YQB15-5 | ||
| Medium | Liquid petroleum gas | ||
| Working pressure differential | ≤0.5Mpa | ||
| Flow Speed | 15.5M3/H | ||
| Applied Power | 5.5kw | ||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | ||
| Motor | Chinese brand | ||
| Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable | ||
| LPG Filling Machine Specification (Can chosen the LPG filling scales or LPG dispenser as need) | |||
2XFlow meter;2XFilling Nozzles;4XDisplay Screens;2XKeyboard; External Dimension:1000X500X2050mm Power supply:AC220V±20%(50±1HZ; Power cable:RVV3X2.5PVC Communication Cable:RVVP 4X0.5PVC shield cable; Flow Rate:1~45L/min; Rated working voltage:2.2Mpa; Gas filling preset range:0.3~9000 liters Density preset range:0.5000~0.6999; The digits numbers shown on display screen Automatic Temperature Compensation function; | |||
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of LPG Gas Filling Plant I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG Gas Filling Plant? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
