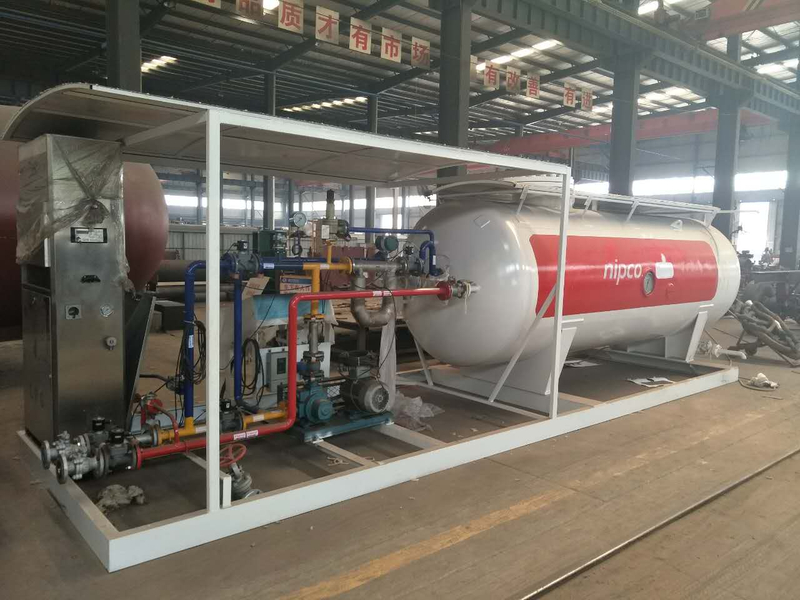

25m3 LPG Cylinder Filling Gas Plant Unit for Sale
Technical parameter
Item No. | Parameters |
Tare Weight (kg) | 5050 kg |
Filling Capacity (kg) | 7980 kg |
Thickness of Shell (mm) | 12 |
Thickness of Endplate (mm) | 12 |
tank cylinder diameter (mm) | 2100 |
External Dimensions (mm) (length×width×height) | 7594*2124*2714 |
Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
Filling Medium | Liquefied Petroleum Gas |
Design Pressure | 1.77MPa ( 256.65 Psi) |
Corrosion Allowance | 1 mm |
Medium Density | 500 kg/ cbm |
Accessory list for lpg tank skid
Item | Model Number | Quantity |
LPG Tanker | 20cbm/ 20liters | 1 piece |
Electronic cylinder Filling machine | BCS-150 | 1 unit |
Filling Pump | YQB15-5 | 1 Piece |
Motor | 5.5KW | 1 Piece |
Dispenser | LPG Dispenser RT-LPG112B | 1 Piece |
Pipes | / | 1 sets |
Cut-off Valve | J41N-40 DN50 | 8 Pieces |
Safety Valve | A42F-25 DN50 | 1 Piece |
Pipe Safety Valve | A21F-25 DN15 | 1 Piece |
Ball floating level gauge | UZFAL-2.5RF2640-0.50 | 1 Piece |
Discharging pipe | L=4M DN50/DN25 | 1 Piece |
Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
Flange | 2.5MPaDN15 | 14 Pieces |
About us
Chengli special automobile Co., Ltd is an automobile manufacturer, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.Quality control: our company truck pass ISO,CCC,BV certification.
2.Design capacity :Our factory have over 200 technicians and designers.
3. Exhibition: our factory attend Canton Fair every year.
4. Export market: Africa, Southeast Asia, Central Asia, South America , Oceania and so on.
5.Our company cooperate with famous chassis manufacturers, such as DongFeng, HOWO,Foton,FAW.
Chengli Special automobile Co.,Ltd also provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
