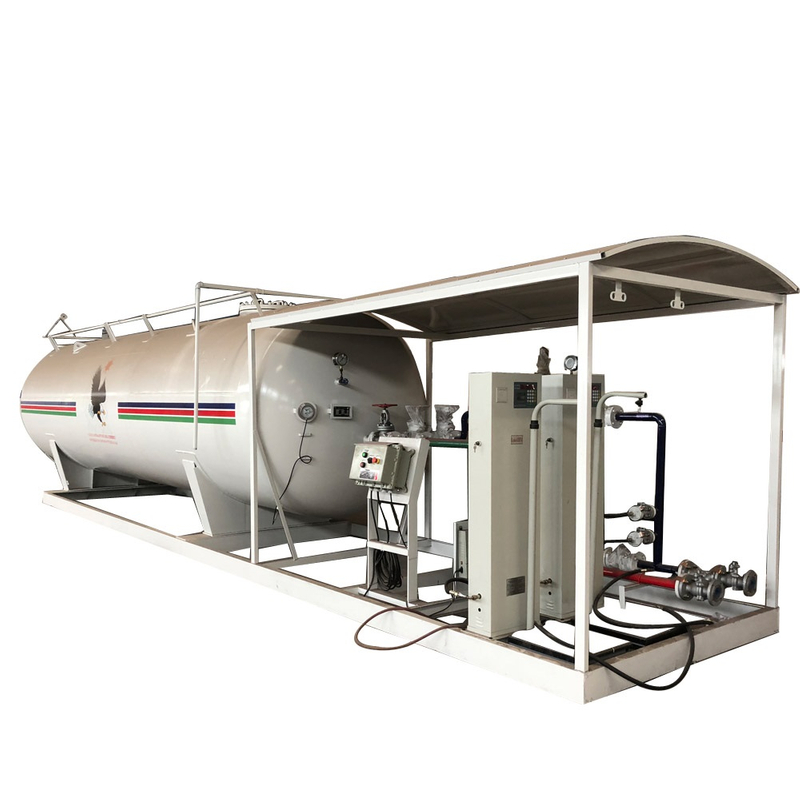

50000 Liters LPG Cylinder Filling Station for Africa Market
Technical parameter
| Design parameter | Volume (m³) | Nomidal Diameter | Thickness | Weight | External Dimensions (Length×Width×Height) | ||
| Shell | Head | Tank | Filling | ||||
| Filling Medium:Liquefied Petroleum Gas Design Pressure:1.77MPa | 50 | 2300 | 12 | 14 | 10190 | 19950 | 12508×2324×2914 |
| 50 | 2400 | 14 | 14 | 11140 | 19950 | 11508×2428×3018 | |
| 50 | 2600 | 14 | 16 | 10910 | 19950 | 9912×2628×3218 | |
| 50 | 2700 | 14 | 16 | 10640 | 19950 | 9182×2728×3318 | |
| 50 | 2800 | 16 | 16 | 11470 | 19950 | 8612×2832×3422 | |
| Main part of Tank | Item | Specification | Quantity(pc) | ||||
| Drain hole | DN50 | 1 | |||||
| Liquid outlet | DN50 | 1 | |||||
| Liquid inlet | DN50 | 1 | |||||
| Manhole | DN450 | 1 | |||||
| Empty valve | DN50 | 1 | |||||
| Gas phase balance pipes | DN50 | 2 | |||||
| Safe valve | DN80 | 2 | |||||
| Thermometer | M33x2 | 2 | |||||
| Level meter | DN25 | 2 | |||||
| Pressure gauge | M20x1.5 | 2 | |||||
| Equipment | 1, Explosion-proof Motor 2, Compactor(ZW0.8/10-16) 3, Hydraulic Pump 4, Filling machine(JQ-060L-A-1G single filling gun /JQ-060L-B-2G double filling gun) | ||||||
| Material of Tank and Main Pressure Parts | Q345R/Q370R | ||||||
| Carried Standard | Pressure vessels,Supervision Regulation on Safety Technology for Stationary Vessels | ||||||
| Safety Valve of Selection Fitting | Safety valve,Column magnetic reversible level meter,Pressure gauge,Thermometer,Cut-off valve | ||||||
About us
Chengli special automobile Co., Ltd is an automobile manufacturer, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.Quality control: our company truck pass ISO,CCC,BV certification.
2.Design capacity :Our factory have over 200 technicians and designers.
3. Exhibition: our factory attend Canton Fair every year.
4. Export market: Africa, Southeast Asia, Central Asia, South America , Oceania and so on.
5.Our company cooperate with famous chassis manufacturers, such as DongFeng, HOWO,Foton,FAW.
Chengli Special automobile Co.,Ltd also provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
