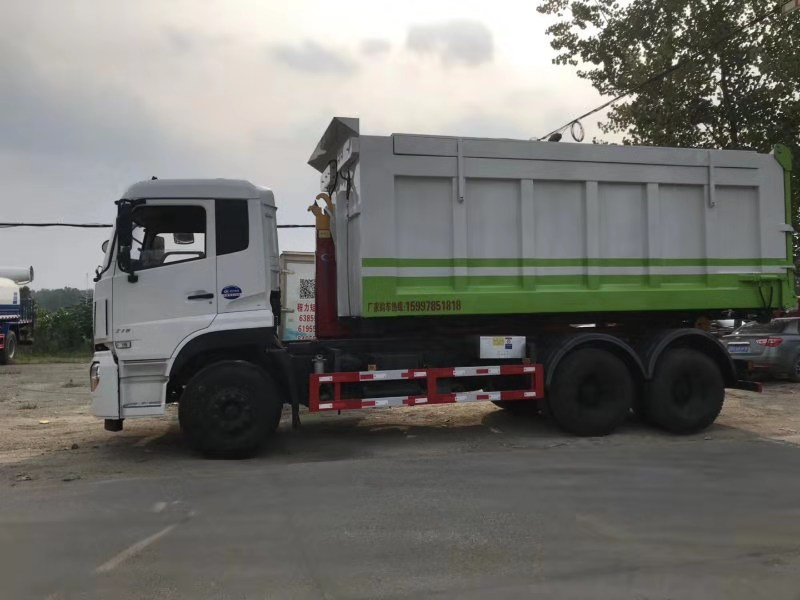

Dongfeng 24cbm 6*4 LHD Hook Lift Garbage Truck

Hook lift truck--The garbage tank of the truck can be lifted upwards and turned over by the chains and the hydraulic hydro-cylinder. By this way, it can collect the garbage at different places into the tank and dump them out at one time.
Availability:
Quantity:
  • CLW

  • CLW


Specification of Dongfeng 24cbm 6*4 LHD hook arm garbage truck


Description

 Dongfeng 24cbm 6*4 LHD hook arm garbage truck

Drive Model

6*4, Left Hand Drive

Cab

2 person,D310 cab

Vehicle Main Dimensions

Dimensions(L x W x H)mm

8170*2500*3230

Wheel base (mm)

4350+1350

Axle load(front /rear)(ton)

7/10/10

Suspension

8/9

Fuel tank

350L steel

Max. driving speed(km/h)

90

               Engine

Model

C260 33

MAX Power(HP)

260

Displacement(L)

8.3

Maximum output power

191kW

Fuel

Diesel

Engine form

Mechanical

Intake form

Turbocharged

Cylinder Number

6

Engine size

1127*825*1055mm

Cylinder x stroke(mm)

114*135

Engine net weight

617kg

Maximum torque(N.m)

1025

Rated speed

2200rpm

Maximum torque speed

1300rpm

Emission standard

Euro 3

Gearbox

9JS119T-B, 9 Forwarder+1 Reverse

Tire

10.00-20 , 10+1 Spare tire

Steering Gear

power steering

Clutch

Clutch assist

Brakes

Spring brake,exhaust brake

24 cbm upper part of hook arm Garbage truck

Loading Capacity(Garbage)

24 CBM

Type

Sliding type

Operating pressure

20-25 mpa 200-250 bar

Duping and loading time

Approx. 40-50 Sec

Tipping angle

50°+/- 5° hydraulic pump

Type

Piston type

Max. Pressure

 250 Bar

Displacement

  2 L/min

Placement of valve

Front left corner of box

Control method

Hydraulic manual valve control on outside( Driver seat on air control type system)

Garbage box dimension

6000*2200*1800 mm

Thickness of the

Side 4mm,bottom 5mm, carbon steel

Specification

Equipped with good performance hook lifting main cylinders and structure. Hyva Brand.

Multi-way valves;

The garbage truck can equipped with several garbage truck;

Equipment

Equipped with hermetic dustbin, hydraulic system and operating system.

Control system and operate system.

Mark

Each hook lift garbage truck are equipped with one garbage box as standard. Clients can choose as need.


  Chengli Special Automobile Co., Ltd which is appointed by Ministry of Industry and Information Technology of China, is a manufacturer producing all kinds of special trucks and semi-trailer.

    1.Our company cooperates with famous chassis manufacturers, such as DONGFENG, FAW, SINOTRUK, FORLAND and etc.

    2.We can produce more than 300 kinds of special trucks, semi-trailer and storage tanks. Chengli take customer's satisfaction as the top requirement.

    3.All of the trucks and semi-trailer sell to Africa, South-east Asia, Australia and other place. And receive good reputation.

    We serve the best service for each client.


    We have customers from  worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria,  middle-east,African, South-african, Australian and so forth.  We serve the best service for our customers.Welcome all friends come to visit our factory. The series products of our trucks are ideal versions instead of imported ones. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
