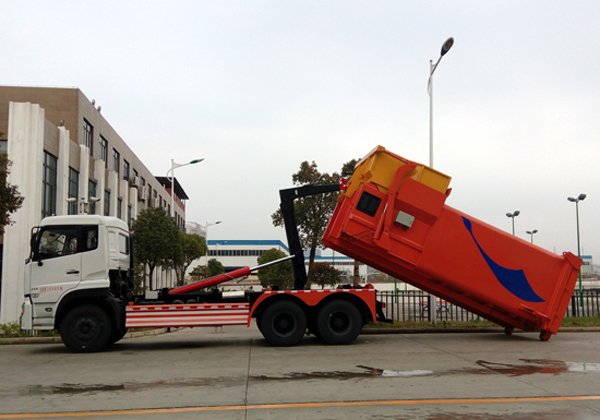

Waste Collection Truck Trash Container Bin Lifter Garbage Truck Trash Compactor Box

Top Design 4CBM Compression Garbage Truck Compactor Garbage Truck with Bin The compactor garbage truck is composed by sealed garbage van, hydraulic system, operating system. The vehicle is fully sealed type, compression and dumping by self. When it working, the sewage is all into the sewage box, so that thoroughly solved the problem of secondary pollution in the process of garbage transport, to avoid the inconvenience to people. The key parts adopt imported parts, it has great pressure, good sealing, convenient operation and safety etc. Rear hanging garbage barrel and overturned garbage bucket are optional. The capacity of the garbage box ranges from 3cbm to 30cbm. Truck brand Dongfeng, Sinotruk Howo, JAC, ISUZU, etc.
Color:
Size:
Availability:
Quantity:
  • Compactor Garbage Box

  • Dongfeng

Waste Collection Truck Trash Container Bin Lifter Garbage Truck Trash Compactor Box

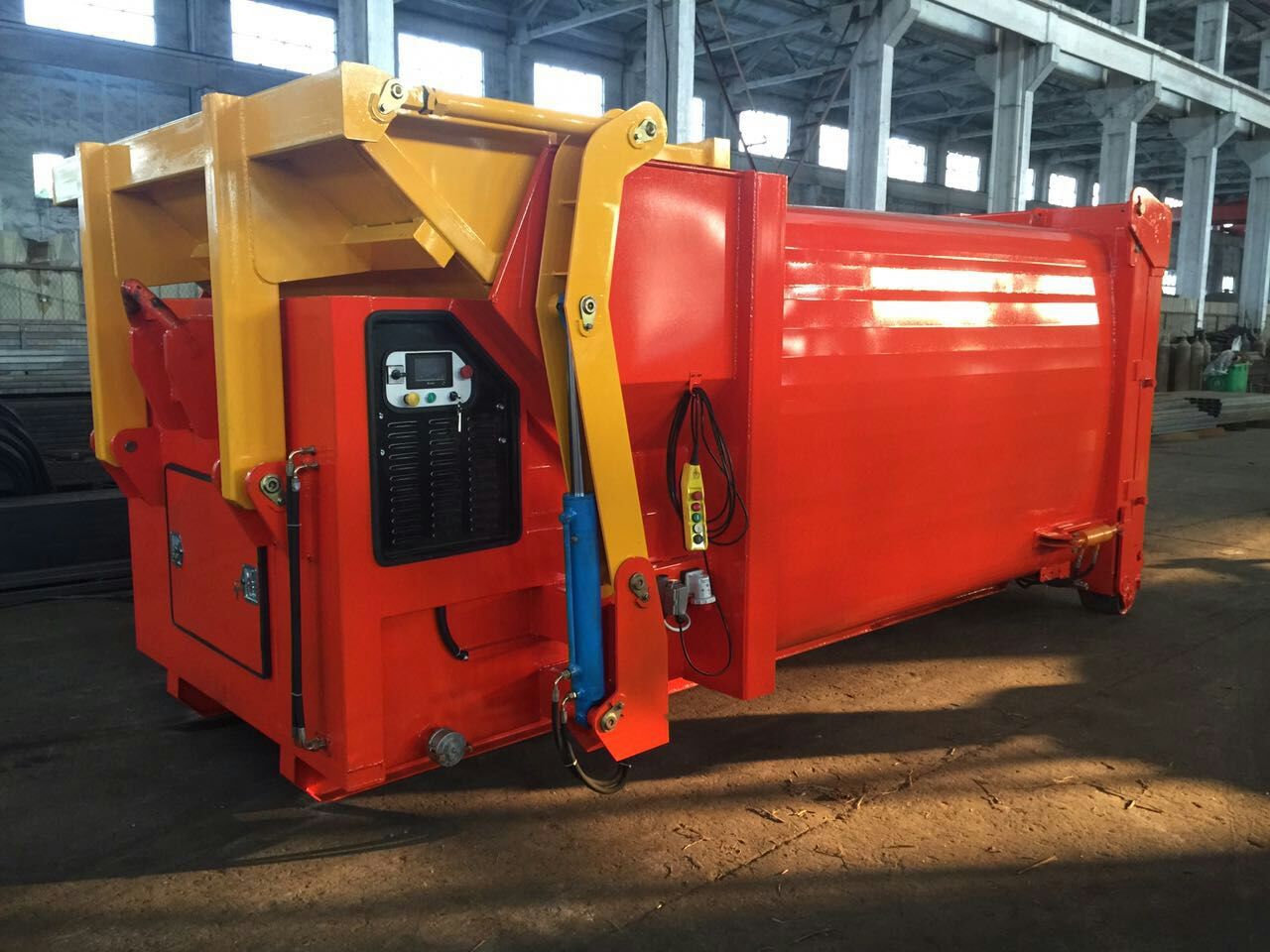

Compactor garbage box

Item

Name


YS08/06

YS12/08

1

Compression force

KN

230

360

2

System pressure

MPa

24

24

3

Working voltage

V

380

380

4

Motor power

KW

5.5

5.5

5

Daily disposal capacity

T/day

60

80

6

Compression chamber capacity

M3

1.6

1.8

7

Compacted density

T/M3

0.75

≤0.75

8

External dimension

mm

4410*2000*2000

4830*2500*2530

9

Tank volume

M3

8

12

10

Hopper lifting weight

T

1.5

2

11

Hopper capacity

M3

1.2

1.5

12

Discharge time

S

38

38

13

Running noise

dB

≤68

≤68




Company Introduction


ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.

l  More than 15 years' experience as a manufacturer

l  Competitive Price and Excellent Quality

l  CCC, ISO, BV, ASME certification

l  Perfect after-sale service

l  Trucks covering more than 50 countries and regions

l  800 kinds of trucks and trailers

l  100 Senior welder and 15 senior engineers

l  Good cooperation with 30% regular customers

l  Annual production value topped 240,000,000 US dollars per year


chengli CLW factory.jpg

Customized Truck & Trailer Solutions to Meet Your Requirements

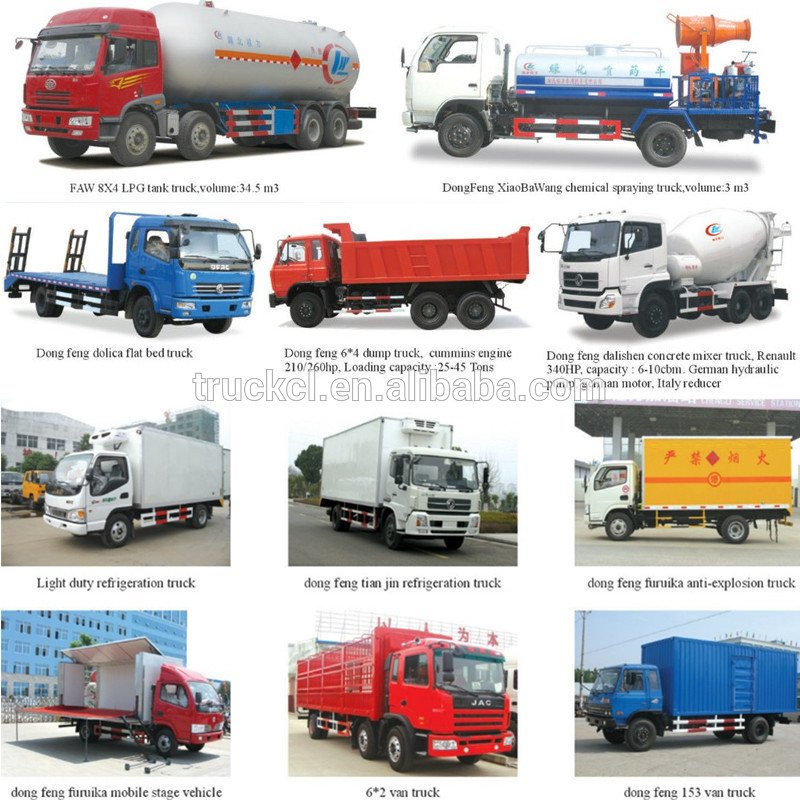

Products Catalog:
