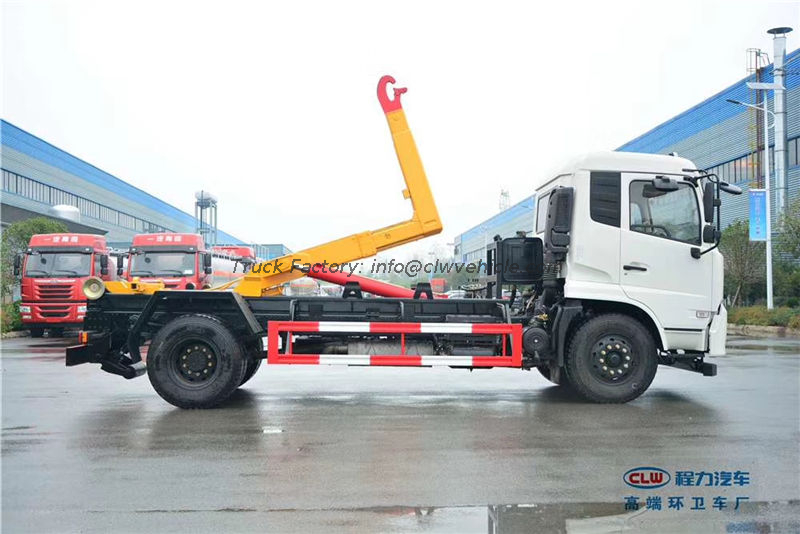

Hook Arm Garbage Compactor Truck Garbage Collection

Overall Dimension

8330*2500*3900 mm

Drive model

4x2, new condition , RHD

Gross weight

18000 kg

Curb Weight

7770 kg

Wheel Base

4500mm

Front/rear Overhang

1110/2315 mm

Front/rear Tread

1680/1650 mm

Approach/Departure Angle

17/12 degree

Engine

SINOTRUK ENGINE, WD615 47, Diesel Engine, Four Stroke, 6 Cylinder in line.

Engine horsepower

371HP , 273 kw，EURO 2

Displacement

9.726 L(Diesel)

Max Driving Speed

90 km/h

Gear Box

HW19710, 10 Forward Gear, 2 Backward Gear

Tire

12R22.5,  12 pieces with 1 spare tire.

Loading Capacity(Garbage)

15 CBM

Type

Sliding type

Operating pressure

20-25 mpa （200-250 bar）

Duping and loading time

Approx. 40-50 Sec

Tipping angle

50°+/- 5° hydraulic pump

Type

Piston type

Max. Pressure

 250 Bar

Displacement

  2 L/min

Placement of valve

Front left corner of box

Control method

Hydraulic manual valve control on outside( Driver seat on air control type system)

Garbage box dimension

6000*2200*1800 mm

Thickness of the

Side 4mm,bottom 5mm, carbon steel

Specification

Equipped with good performance hook lifting main cylinders and structure. Hyva Brand.

Multi-way valves;

The garbage truck can equipped with several garbage truck;

Equipment

◆Equipped with hermetic dustbin, hydraulic system and operating system.

◆Control system and operate system.

Mark

Each hook lift garbage truck are equipped with one garbage box as standard. Clients can choose as need.
