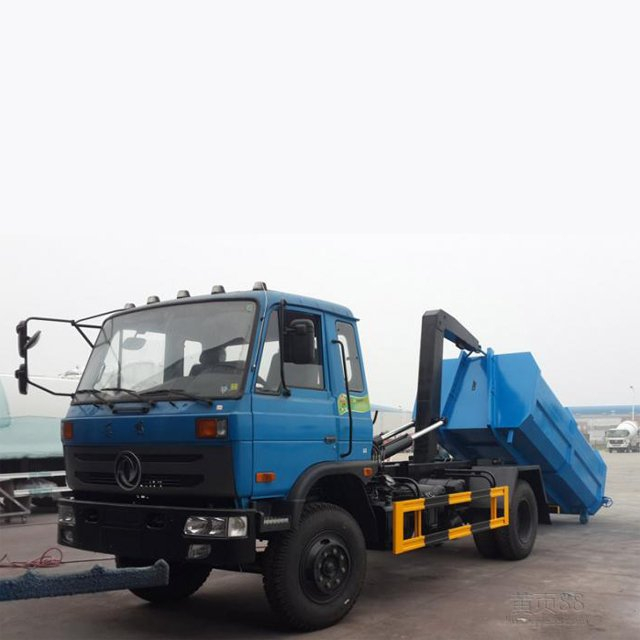

Made in China DONGFENG 4X2 8 TON 10CBM Hook Lift Garbage Truck

Hook lift truck--The garbage tank of the truck can be lifted upwards and turned over by the chains and the hydraulic hydro-cylinder. By this way, it can collect the garbage at different places into the tank and dump them out at one time.
Availability:
Quantity:
  • CLW

  • CLW

Condition

New condition/Left and Right hand drive/4x2

Chassis

Brand

Dongfeng

Curb weight(kg)

6700 kg

Wheelbase(mm)

3950 mm

Dimensions(mm)

6500*2500*2900 mm

Overhang (front/rear) (mm)

1250/1350 mm

Wheel track (front/rear) (mm)

1940/1860 mm

Approach/Departure angle(°)

21/19

Axle Load(kg)

6000/10000 kg

Max. driving speed(km/h)

90 km/h

Clutch

Reinforced diaphragm clutch

Brakes

Service brake: dual circuit compressed air brake                                                                                     Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Quantity

6pcs with one spare tire

Specifications

9.00-20

Gear box

Manual type, 6 Forwards and 1 reverse

Cab

It can accommodate three people. With Air conditioner

Engine

Model

Dongfeng

Displacement(ml)

5900 ml

Cylinder quantity(pcs)

6

Power(kw)

125 kw

Horsepower(HP)

170 HP

Emission standard

Euro 3

Upper

Garbage Tank

Tank material

Q235 Carbon steel

Tank capacity(CBM)

10.0

Max. Loading weight(kg)

8000 kg


  Chengli Special Automobile Co., Ltd which is appointed by Ministry of Industry and Information Technology of China, is a manufacturer producing all kinds of special trucks and semi-trailer.

    1.Our company cooperates with famous chassis manufacturers, such as DONGFENG, FAW, SINOTRUK, FORLAND and etc.

    2.We can produce more than 300 kinds of special trucks, semi-trailer and storage tanks. Chengli take customer's satisfaction as the top requirement.

    3.All of the trucks and semi-trailer sell to Africa, South-east Asia, Australia and other place. And receive good reputation.

    We serve the best service for each client.


    We have customers from  worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria,  middle-east,African, South-african, Australian and so forth.  We serve the best service for our customers.Welcome all friends come to visit our factory. The series products of our trucks are ideal versions instead of imported ones. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
