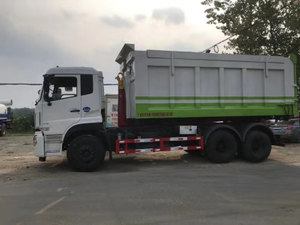

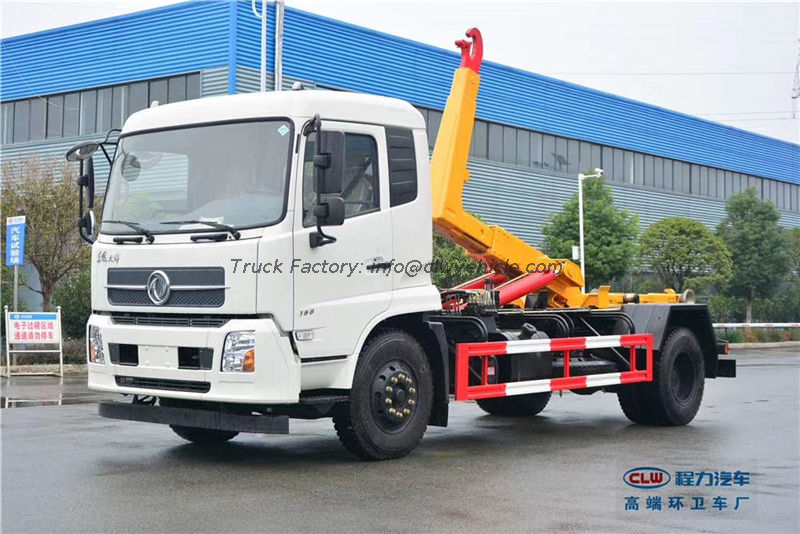

Hook Arm Garbage Compactor Truck Environmental Protection

Availability:
Quantity:


Specification of SINOTRUK HOWO 25cbm 8*4 hook lifting garbage truck

 Here is the sinotruk howo specification for reference

Item No.

Parameters

Overall Dimension

11430*2500*3900 mm

Drive model

6x4, new condition , LHD

Gross weight

25000 kg

Curb Weight

9000 kg

Engine

SINOTRUK ENGINE, WD615 47, Diesel Engine, Four Stroke, 6 Cylinder in line.

Engine horsepower

371HP , 273 kw,EURO 2

Displacement

9.726 L(Diesel)

Max Driving Speed

90 km/h

Gear Box

HW19710, 10 Forward Gear, 2 Backward Gear

Tire

12R22.5,  12 pieces with 1 spare tire.





20 cbm upper part of hook arm Garbage truck

Loading Capacity(Garbage)

20 CBM

Type

Sliding type

Operating pressure

20-25 mpa (200-250 bar)

Duping and loading time

Approx. 40-50 Sec

Tipping angle

50°+/- 5° hydraulic pump

Type

Piston type

Max. Pressure

 250 Bar

Displacement

 2 L/min

Placement of valve

Front left corner of box

Control method

Hydraulic manual valve control on outside( Driver seat on air control type system)

Garbage box dimension

6000*2200*1800 mm or other size.

Thickness of the

Side 4mm,bottom 5mm, carbon steel

Specification

Equipped with good performance hook lifting main cylinders and structure. Hyva Brand.

Multi-way valves;

The garbage truck can equipped with several garbage truck;

Equipment

◆Equipped with hermetic dustbin, hydraulic system and operating system.

◆Control system and operate system.

Mark

Each hook lift garbage truck are equipped with one garbage box as standard. Clients can choose as need.
