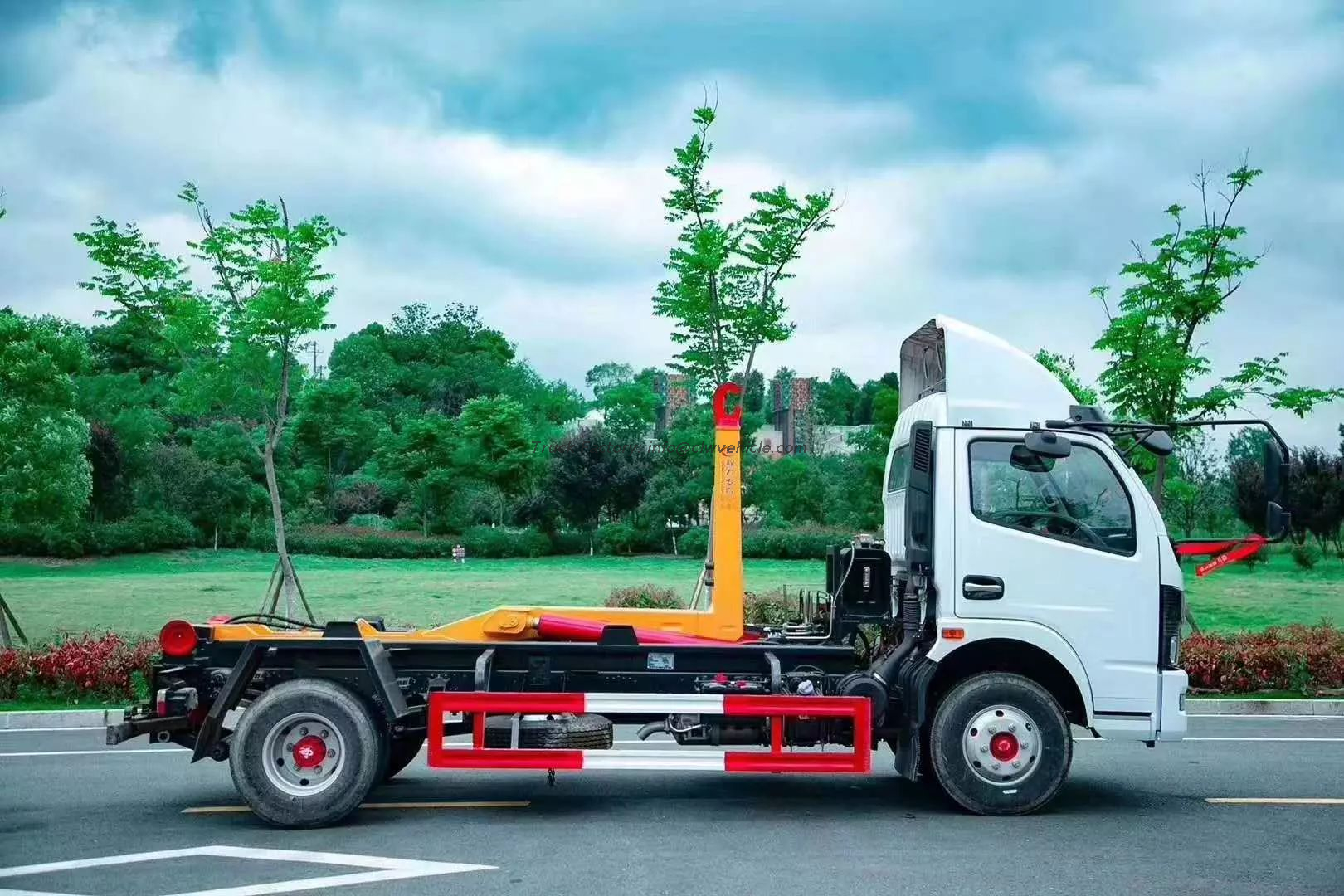

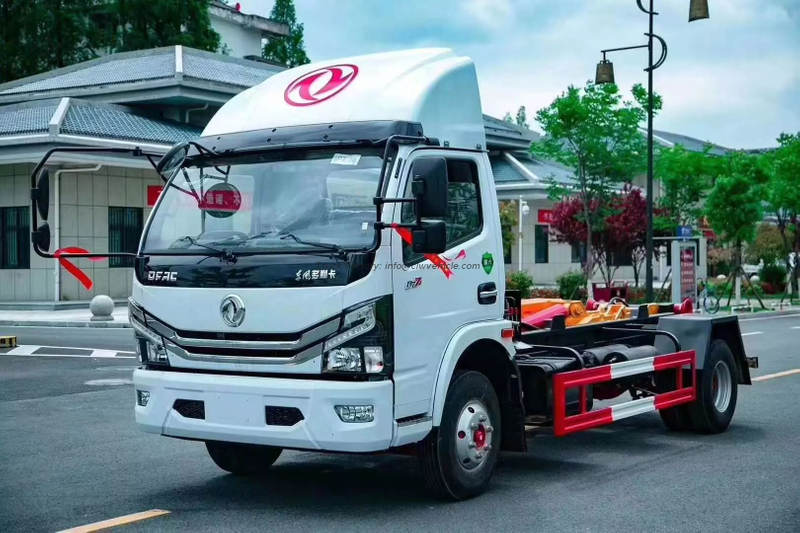

Roll Off Garbage Compactor Truck

Quantity:



Specification of Dongfeng 25cbm 8*4 hook lifting garbage truck



Item No.

Parameters

Overall Dimension

11430*2500*3900 mm

Drive model

6x4, new condition , LHD

Gross weight

25000 kg

Curb Weight

9000 kg

Engine

SINOTRUK ENGINE, WD615 47, Diesel Engine, Four Stroke, 6 Cylinder in line.

Engine horsepower

371HP , 273 kwEURO 2

Displacement

9.726 L(Diesel)

Max Driving Speed

90 km/h

Gear Box

HW19710, 10 Forward Gear, 2 Backward Gear

Tire

12R22.5,  12 pieces with 1 spare tire.





20 cbm upper part of hook arm Garbage truck

Loading Capacity(Garbage)

20 CBM

Type

Sliding type

Operating pressure

20-25 mpa 200-250 bar

Duping and loading time

Approx. 40-50 Sec

Tipping angle

50°+/- 5° hydraulic pump

Type

Piston type

Max. Pressure

 250 Bar

Displacement

 2 L/min

Placement of valve

Front left corner of box

Control method

Hydraulic manual valve control on outside( Driver seat on air control type system)

Garbage box dimension

6000*2200*1800 mm or other size.

Thickness of the

Side 4mm,bottom 5mm, carbon steel

Specification

Equipped with good performance hook lifting main cylinders and structure. Hyva Brand.

Multi-way valves;

The garbage truck can equipped with several garbage truck;

Equipment

Equipped with hermetic dustbin, hydraulic system and operating system.

Control system and operate system.

Mark

Each hook lift garbage truck are equipped with one garbage box as standard. Clients can choose as need.
