Roll Off Garbage Compactor Truck Environmental Protection

Quantity:

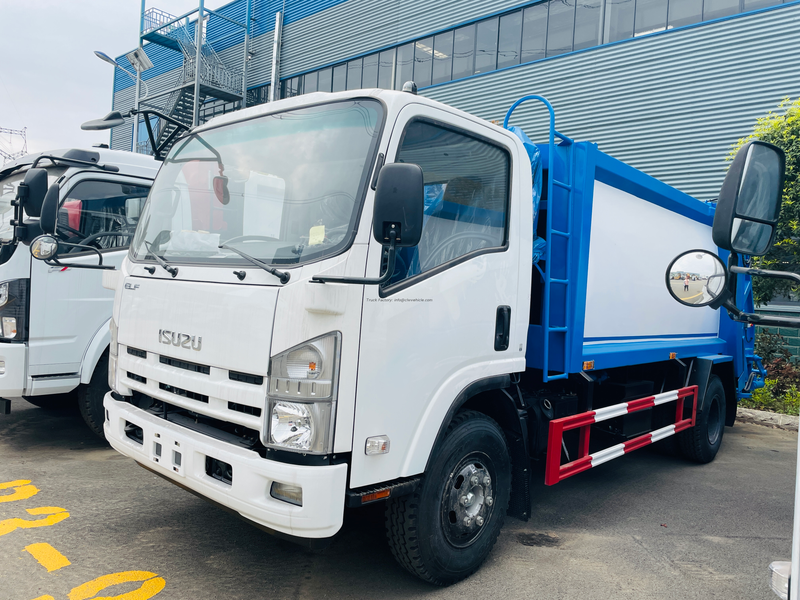

ISUZU 7 m3 Rear Compactor Garbage truck


Item No.

Parameters


Overall Dimension

6740*2090*26000  mm


Country of Original

China


Drive model

4x2, new condition , LHD


Gross Vehicle Weight

7300 kg


Curb Weight

4900 kg


Loading Volume

7 CBM


Wheel Base

3815 mm


Front/rear Overhang

1015/2175mm


Front/rear Tread

1504/1425 mm


Approach/Departure Angle

24/9  degree


Engine

ISUZU Engine, 4HK1CN5HS, Diesel Engine, Four Stroke, 4 Cylinder in line.


Engine horsepower

130 HP(96KW) Euro 5.


Max Driving Speed

90 km/h


Displacement

2999 cc


Gear Box

MSB, 5 Forward Gear, 1 Backward Gear


Tire

700R16, 7 pieces (with 1 spare tire.)


Volume Capacity(Garbage)

7 CBM


Loading capacity

7000 litters 7 m3


Thickness of the tank

4mm  carbon steel


Rated promotion weight of the loading structure

150 kg


Max. Promotion weight of the loading structure

200 kg


Specification

Equipped with the rear garbage tussle.

Rated Pressure of Hydraulic system: 16 Mpa

Working cycle of Loading system: <10-12 s

Working cycle of the unloading system: <20 s

Compress ratio:  2.5:1  2-3 times;  0.9/m3


Equipment

◆Equipped with hermetic dustbin, hydraulic system and operating system.

◆Automatic compress and uninstall, sewage can be collected by the dump tank.

Thickness

4 mm
