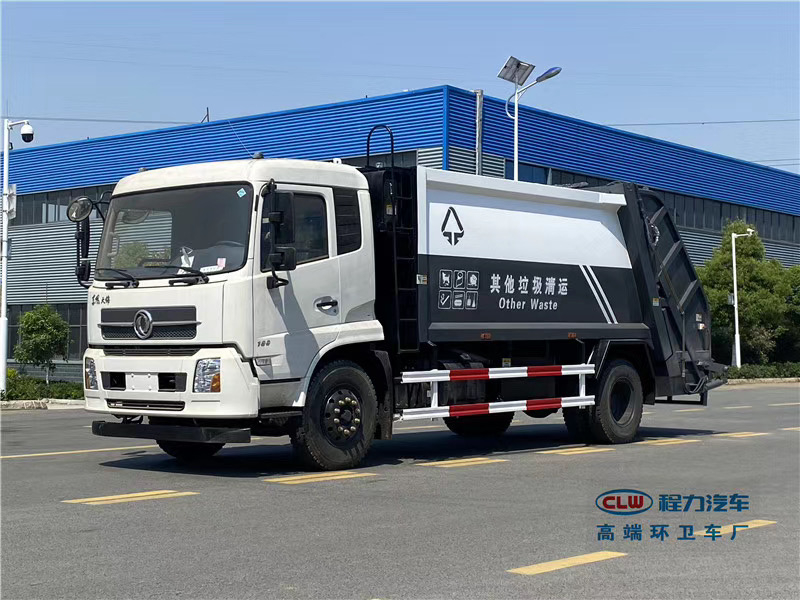

DONGFENG 4X2 8 Tons 10CBM Garbage Compactor Truck

The garbage compactor truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.

Color:
Quantity:
  • CLW5097
  • CLW

Condition

New condition/Left and Right hand drive/4x2

Chassis

Brand

Dongfeng

Curb weight(kg)

9705 kg

Wheelbase(mm)

4500 mm

Dimensions(mm)

8820*2490*3100 mm

Front/Rear axle loading(kg)

6000/10000 kg

Front/Rear overhang(mm)

1430/2720 mm

Wheel track (front/rear) (mm)

1880/1800 mm

Approach/Departure angle(°)

20/13

Max. driving speed(km/h)

90 km/h

Clutch

Reinforced diaphragm clutch

Brakes

Service brake: dual circuit compressed air brake                                                                                     Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Quantity

6pcs with one spare tire

Specifications

10.00-20

Transmission

Manual type, 5 Forwards and 1 reverse

Cab

Single row seat, Tiltable. It can accommodate three people. With air conditioner.

Engine

Brand

Yuchai

Fuel type

Diesel

Displacement(ml)

4257 ml

Power(kw)

105 kw

Horsepower(HP)

140 HP

Cylinder number

4 pcs

Emission standard

Euro 3

Upper

Garbage Tank

Tank material

Q235 Carbon steel

Tank capacity(cbm)

10.0 CBM

Ways of Loading

Rear Loading

Dispensing System

1. Equipped with air-tight dustbin, hydraulic system and operating system.

2. Automatic loading, compressing and discharging, all handled by 1 person

3. Sewage water collection tank to avoid any pollution during handling.

4. Large Pressure, Good Leakage Proof, Convenient Operation and Dependable Security

5. Electrical Control Panel for compacting system.

Remarks

Color is optional


Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks’ entrance to the international market.



   1.Quality control: our company truck pass ISO,CCC,BV certification.

    2.Design capacity :Our factory have over 200 technicians and designers.

    3. Exhibition: our factory attend Canton Fair every year.

    4. Export market: Africa, Southeast Asia, Central Asia, South America , Oceania and so on.

工厂002工厂000c2

CHENGLI SPECIAL AUTOMOBILE CO., LTD . is looking forward to your visiting. The reliant quality, excellent service and reasonable price are the promise we keep.
