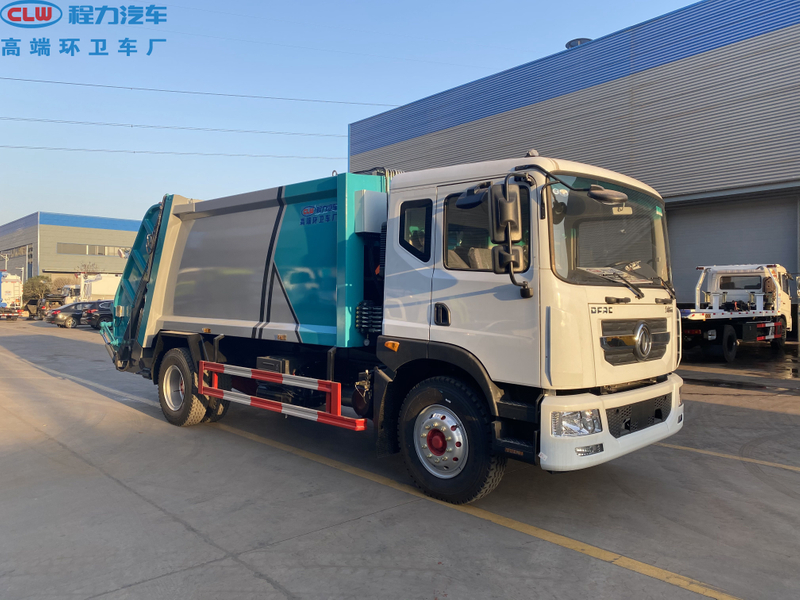

Docking Garbage Truck Commercial 8CBM Garbage Compactor Truck

Top Design 4CBM Compression Garbage Truck Compactor Garbage Truck with Bin The compactor garbage truck is composed by sealed garbage van, hydraulic system, operating system. The vehicle is fully sealed type, compression and dumping by self. When it working, the sewage is all into the sewage box, so that thoroughly solved the problem of secondary pollution in the process of garbage transport, to avoid the inconvenience to people. The key parts adopt imported parts, it has great pressure, good sealing, convenient operation and safety etc. Rear hanging garbage barrel and overturned garbage bucket are optional. The capacity of the garbage box ranges from 3cbm to 30cbm. Truck brand Dongfeng, Sinotruk Howo, JAC, ISUZU, etc.
Availability:
Quantity:
  • DF Compression Garbage Truck

  • Dongfeng

Docking Garbage Truck Commercial 8CBM Garbage Compactor Truck


Condition

New condition/Left and Right hand drive/4x2

Chassis

Brand

Dongfeng

Curb weight(kg)

9705 kg

Wheelbase(mm)

4500 mm

Dimensions(mm)

8820*2490*3100 mm

Front/Rear axle loading(kg)

6000/10000 kg

Front/Rear overhang(mm)

1430/2720 mm

Wheel track (front/rear) (mm)

1880/1800 mm

Approach/Departure angle(°)

20/13

Max. driving speed(km/h)

90 km/h

Clutch

Reinforced diaphragm clutch

Brakes

Service brake: dual circuit compressed air brake                                                                                     Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Quantity

6pcs with one spare tire

Specifications

10.00-20

Transmission

Manual type, 5 Forwards and 1 reverse

Cab

Single row seat, Tiltable. It can accommodate three people. With air conditioner.

Engine

Brand

Yuchai

Fuel type

Diesel

Displacement(ml)

4257 ml

Power(kw)

105 kw

Horsepower(HP)

140 HP

Cylinder number

4 pcs

Emission standard

Euro 3

Upper

Garbage Tank

Tank material

Q235 Carbon steel

Tank capacity(cbm)

8.0 CBM

Ways of Loading

Rear Loading

Dispensing System

1. Equipped with air-tight dustbin, hydraulic system and operating system.

2. Automatic loading, compressing and discharging, all handled by 1 person

3. Sewage water collection tank to avoid any pollution during handling.

4. Large Pressure, Good Leakage Proof, Convenient Operation and Dependable Security

5. Electrical Control Panel for compacting system.

Remarks

Color is optional




Company Introduction


ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.

l  More than 15 years' experience as a manufacturer

l  Competitive Price and Excellent Quality

l  CCC, ISO, BV, ASME certification

l  Perfect after-sale service

l  Trucks covering more than 50 countries and regions

l  800 kinds of trucks and trailers

l  100 Senior welder and 15 senior engineers

l  Good cooperation with 30% regular customers

l  Annual production value topped 240,000,000 US dollars per year


chengli CLW factory.jpg

Customized Truck & Trailer Solutions to Meet Your Requirements

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low
bed trailer / van container trailer / warehouse trailer, etc. )

photobank (3).jpg
