CLW5070 Compression Garbage Truck
sinotruk howo, isuzu, jac, jmc, dongfeng, faw

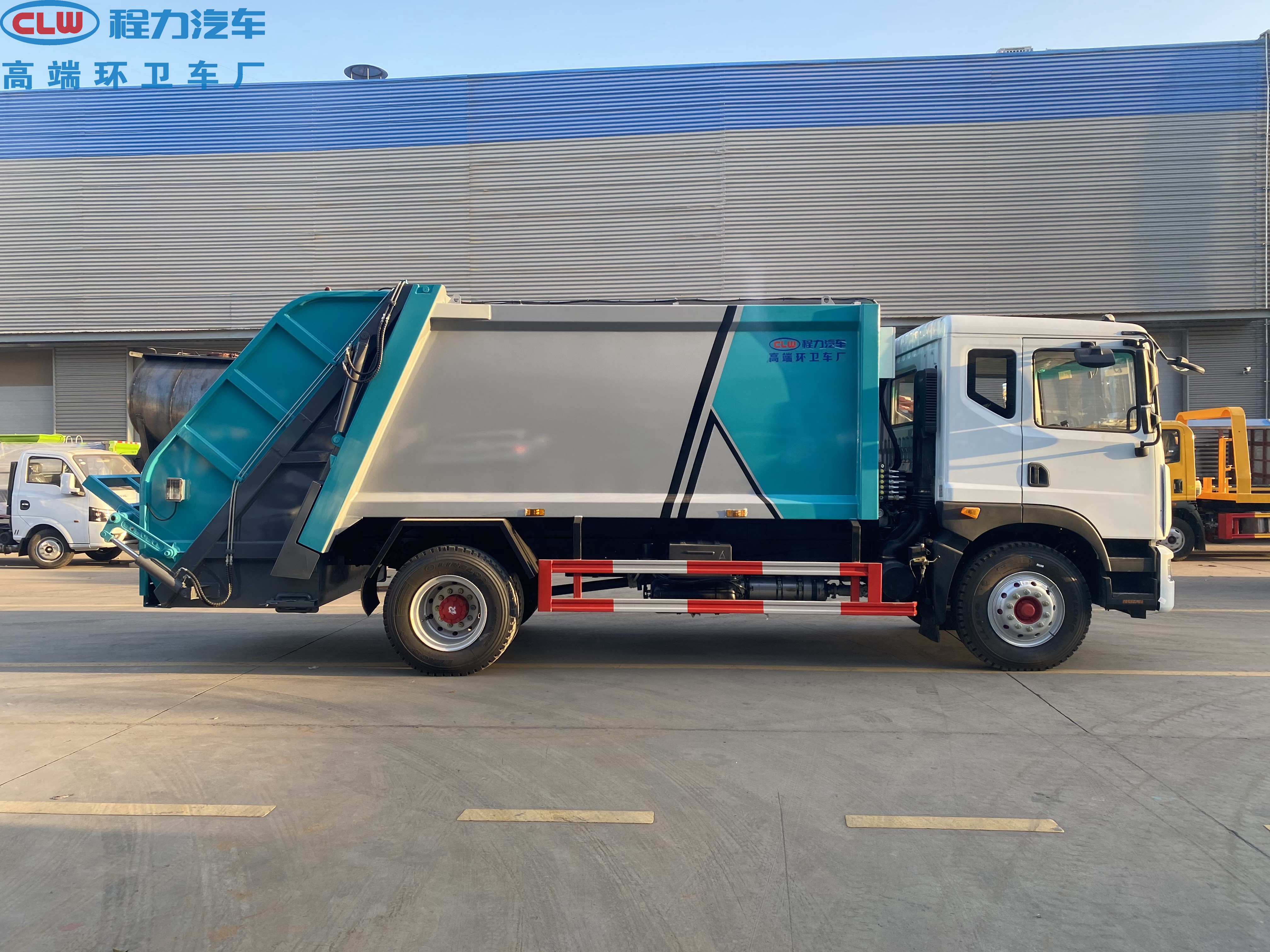

China Small Compression Garbage Capacity 10CBM Compactor Garbage Truck
Condition | New condition/Left and Right hand drive/4x2 | ||
Chassis | Brand | Dongfeng | |
Curb weight(kg) | 9705 kg | ||
Wheelbase(mm) | 4500 mm | ||
Dimensions(mm) | 8820*2490*3100 mm | ||
Front/Rear axle loading(kg) | 6000/10000 kg | ||
Front/Rear overhang(mm) | 1430/2720 mm | ||
Wheel track (front/rear) (mm) | 1880/1800 mm | ||
Approach/Departure angle(°) | 20/13 | ||
Max. driving speed(km/h) | 90 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6pcs with one spare tire | |
Specifications | 10.00-20 | ||
Transmission | Manual type, 5 Forwards and 1 reverse | ||
Cab | Single row seat, Tiltable. It can accommodate three people. With air conditioner. | ||
Engine | Brand | Yuchai | |
Fuel type | |||
Displacement(ml) | 4257 ml | ||
Power(kw) | 105 kw | ||
Horsepower(HP) | 140 HP | ||
Cylinder number | 4 pcs | ||
Emission standard | Euro 3 | ||
Upper | |||
Garbage Tank | Tank material | Q235 Carbon steel | |
Tank capacity(cbm) | 10.0 CBM | ||
Ways of Loading | Rear Loading | ||
Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. 2. Automatic loading, compressing and discharging, all handled by 1 person 3. Sewage water collection tank to avoid any pollution during handling. 4. Large Pressure, Good Leakage Proof, Convenient Operation and Dependable Security 5. Electrical Control Panel for compacting system. | ||
Remarks | Color is optional | ||
Company Introduction
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.
l More than 15 years' experience as a manufacturer
l Competitive Price and Excellent Quality
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 800 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
l Annual production value topped 240,000,000 US dollars per year
Customized Truck & Trailer Solutions to Meet Your Requirements
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
China Small Compression Garbage Capacity 10CBM Compactor Garbage Truck
Condition | New condition/Left and Right hand drive/4x2 | ||
Chassis | Brand | Dongfeng | |
Curb weight(kg) | 9705 kg | ||
Wheelbase(mm) | 4500 mm | ||
Dimensions(mm) | 8820*2490*3100 mm | ||
Front/Rear axle loading(kg) | 6000/10000 kg | ||
Front/Rear overhang(mm) | 1430/2720 mm | ||
Wheel track (front/rear) (mm) | 1880/1800 mm | ||
Approach/Departure angle(°) | 20/13 | ||
Max. driving speed(km/h) | 90 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6pcs with one spare tire | |
Specifications | 10.00-20 | ||
Transmission | Manual type, 5 Forwards and 1 reverse | ||
Cab | Single row seat, Tiltable. It can accommodate three people. With air conditioner. | ||
Engine | Brand | Yuchai | |
Fuel type | |||
Displacement(ml) | 4257 ml | ||
Power(kw) | 105 kw | ||
Horsepower(HP) | 140 HP | ||
Cylinder number | 4 pcs | ||
Emission standard | Euro 3 | ||
Upper | |||
Garbage Tank | Tank material | Q235 Carbon steel | |
Tank capacity(cbm) | 10.0 CBM | ||
Ways of Loading | Rear Loading | ||
Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. 2. Automatic loading, compressing and discharging, all handled by 1 person 3. Sewage water collection tank to avoid any pollution during handling. 4. Large Pressure, Good Leakage Proof, Convenient Operation and Dependable Security 5. Electrical Control Panel for compacting system. | ||
Remarks | Color is optional | ||
