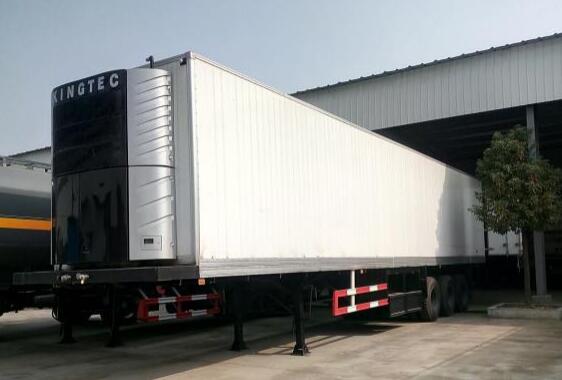

3 axles Refrigerated Van 40FT Reefer 30tons cargo Semi Trailer

Refrigerated trucks are special transport vehicles equipped with refrigeration units and polyurethane insulated van box. Refrigeration units are generally divided into two types of independent units and dependent units, the difference is that the independent unit through another unit to generate electricity for maintenance work, dependent unit is fully through the engine's engine work to take power to drive the unit Refrigeration work.
Availability:
Quantity:
  • CLW

3 axles Refrigerated Van 40FT Reefer 30tons cargo Semi Trailer

                                    Main Dimensions

Overall Dimensions

14600*2550*4000mm


Van Dimensions

13820*2330*2410mm


Tare Weight

9900KGS


Loading Capacity

40T


Photo only for reference, final product can be made according to exact requirements

Van Body

Van Body Stuff

FPR,Roofing iron,PPGI Aluminum,Duralumin

Fact Cubagem3

55~65

Insulation Material

Polyurethane

Insulation Thickness

80mm

Door

Rear door,optional for side door

Temperature Range

-25° to +27°

Refrigerator System

Brand

KINGTEC

Refrigerant

SK1380

Lowest working temperature

18 centi degree

Chassis

Main Beams

Special design I beam, connected by bolts and nuts with van body, removable from van body for separate transportation;

Axle

3 axles

Fuwa 13 Ton

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

King Pin

JOST brand 2” bolt-in king pin

Suspension

German design heavy duty mechanical suspension

Pneumatic Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.

Wheel rim

8.25-22.5 wheel rim, 13 pieces

Tire

11R22.5 with one spare tire, 13pieces


ChengLi Special Automobile Co.,Ltd which is appointed by the Development and Reform Committee of China is a famous manufacturer producing all kind of special trucks for 10 years. Labels registered CLW has roundly passed the ISO9001-2008 and the 3C(China Compulsory Certification).

    Our company has independent export right and has a lot of overseas clients.

   Our leading products are more than 300 kind of trucks such as Water truckLPG truckFecal suction truckGarbage truck, Refuse compactor, Sewage suction truckFuel tank, High-altitude operation truck, Truck with crane, Dump truck, Instructional truck, Van truck, Semi-trailer, Fire engine, Spares, Refrigerator truck, Water wagon, Tractor, High-altitude water truck, Bulk cement truck, Chemical liquid truck, Concrete mixer truck, ect.
