CLW

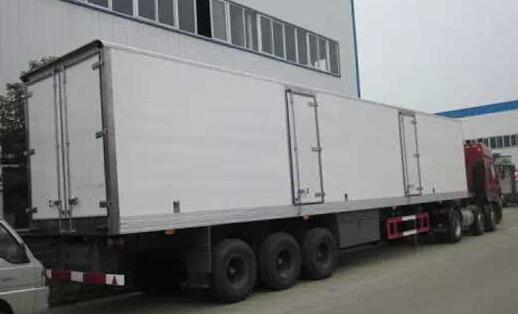

Specification of 38ton 60cbm 3axles refrigerated semi-trailer | ||
Max payload | approx. 38,000kg | |
Load capacity | approx. 60m3 | |
Trailer dimension (L x W x H)mm |
13500*2600*3995 | |
Wheel base (mm) | 7350+1310+1310 | |
Tare weight | 10400kg | |
Walking mechanism | Axle | 3 axles 13ton Fuhua |
Tyre | 11.00R20, 13pcs (including 1 spare) | |
Spare tire rack | 1pcs | |
Braking system | ABS (Antilock Brake System) | |
Suspension | Air suspension | |
Landing gear | 28 ton | |
King pin | #50/2 inch , #90 / 3.5 inch | |
Light & wire | LED combination rear lights, LED side lights, 7-pin socket wire | |
Box | Box dimension (L x W x H)mm |
13300*2400*2520 |
Materials of Inside & outside | GRP | |
panel | (glass-fiber reinforced plastic) | |
Insulation | polyurethane, 100mm thickness | |
Wrap angle | aluminum alloy | |
Door frame, lock | Stainless steel | |
Base plate | non-slip patterned aluminum | |
Doors | Double doors on rear two doors on right side. | |
Configuration | Ventilation slot | |
Refrigerator unit |
Refrigerator unit Type | Sub engine (auxiliary power unit) - not share tractor engine as a power source |
Model | Carrier X4 (American Brand) | |
External dimensions | 1940*2176*579mm | |
Internal (evaporator) dimensions | 1684*1149*280mm | |
Refrigerant | R-404A,6.8kg | |
Ambient temperature | +38℃ | |
Room temperature | 2℃: approx. 19,345W -18℃: approx. 10,260W -29℃: approx. 6,740W | |
Temperature | -20℃-0℃ | |
Weight | 730kg | |
Engine | T4 V2203 diesel engine (4 cylinders) | |
Displacement(L) | 0.655L, 40in3 | |
Output power | 18.5 kw | |
Speed | 1800rpm | |
Fuel tank capacity | 50gallon,approx. 189 liters | |
Compressor | 05G-41CFM |
ChengLi Special Automobile Co.,Ltd which is appointed by the Development and Reform Committee of China is a famous manufacturer producing all kind of special trucks for 10 years. Labels registered CLW has roundly passed the ISO9001-2008 and the 3C(China Compulsory Certification).
Our company has independent export right and has a lot of overseas clients.
Our leading products are more than 300 kind of trucks such as Water truck, LPG truck, Fecal suction truck, Garbage truck, Refuse compactor, Sewage suction truck, Fuel tank, High-altitude operation truck, Truck with crane, Dump truck, Instructional truck, Van truck, Semi-trailer, Fire engine, Spares, Refrigerator truck, Water wagon, Tractor, High-altitude water truck, Bulk cement truck, Chemical liquid truck, Concrete mixer truck, ect.
