CLW

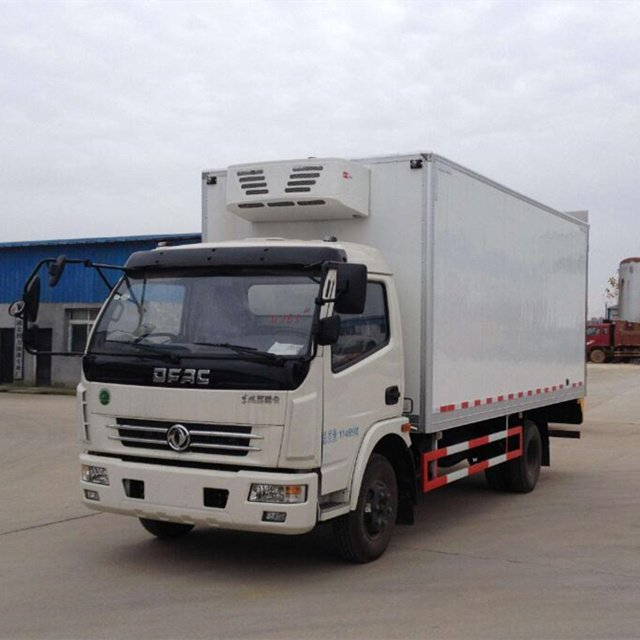

DONGFENG 4×2 Refrigerated Truck 3T Cooling Van Truck 5T Freezer Food Transport Box 7T Truck
Truck chassis available Dongfeng, Foton, Howo, JAC, JMC, ISUZU, FAW...
Refrigeration unit brand can be choosen, Thermo king （USA brand）Carrier （USA brand）Han Xue (Chinese brand) Han Ya (Chinese brand)...
Refrigerated Truck payload available 1.5T, 2T, 3T, 5T, 7T, 10T, 12T, 20T...
Technical parameter for refrigerated cooling van truck
Item No. | Parameters |
Overall Dimension | 5695×2050×2850mm |
Gross Vehicle Weight | 5495 kg |
Curb Weight | 2565 kg |
Loading Weight | 2930 Kg |
Wheel Base | 3300 mm |
Front/rear Tread | 1460/1458 mm |
Approach/Departure Angle | 19/15 degree |
Front Axle | 2200 kg |
Rear Axle | 3295 kg |
Engine | CUMMINS Diesel Engine, 4 in-line cylinder |
Engine horsepower | 95 HP EURO II |
Displacement | 1.809 L (Diesel) |
Full loading Fuel Consumption Rate | Maximum 215 g/kW.h |
Max Driving Speed | 90 km/h |
Cabin | 2 Passenger allowed |
Tire | 7.00-16 (7 pieces) |
Carriage Body | |
Size: | 3600×1850×2000mm |
Tank Material | Strong Fiberglass Inner and Outer Wall, with 8cm Middle Polyfoam Insulation. |
Refrigerator | High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 10-15 centi-degree |
LOGO | Company Logo or any advertisement can be printed on the carriage body according to the customer's design. (same as showed in last photo) |

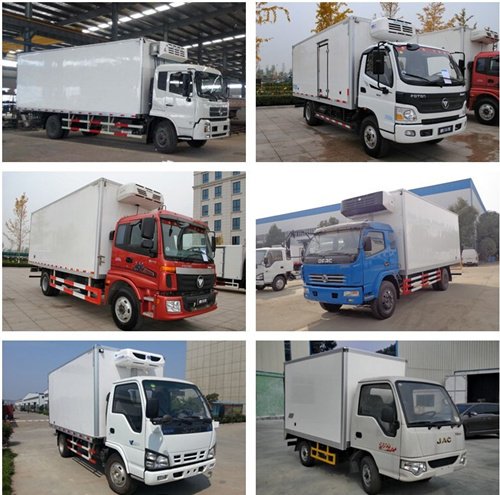

Different kinds of Refrigerated Cooling Van truck
Exported Trucks or tanks
