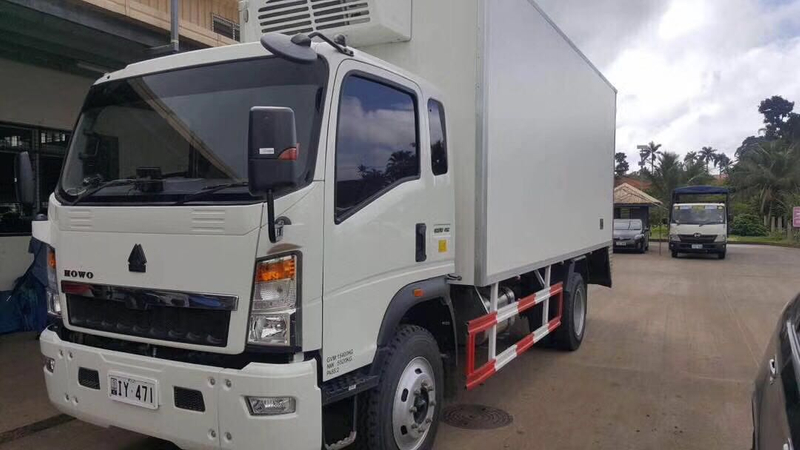

10ton howo 120hp 4*2 LHD refrigerated truck

Refrigerated truck is an enclosed van box that can be used to transport frozen or fresh goods, equipped with dependent or independent refrigeration unit and a polyurethane insulated van box.

Quantity:
  • CLW


Specification of 10ton howo 120hp 4*2 LHD refrigerated truck

Description

 10ton howo 120hp 4*2 LHD refrigerated truck

Drive Model

4*2, Left Hand Drive

Cab

Inside & outside

3 person,ordinary seat,general paint


Rear mirror

left/right frame rear view mirror

 (four mirror type)

Vehicle Main Dimensions

Dimensions(L x W x H)mm

6995*2350*3500


Wheel base (mm)

3800


Axle load(front /rear)(ton)

2.7 /7.2


Suspension

9/12+9B


Fuel tank

120L iron tank

Max. driving speed(km/h)

95

Engine

Model

CY4102BZLQ

MAX Power(HP)

120

Displacement(L)

3.856

Maximum output power

88kW

Fuel

Diesel

Engine form

Vertical in-line, water-cooled, four-stroke, supercharged and intercooled

Cylinder Number

4

Engine size

963.1*693*820.8mm

Cylinder x stroke(mm)

102*118

Engine net weight

350kg

Maximum torque(N.m)

392

Rated speed

2800rpm

Maximum torque speed

1400-1800rpm

Compression ratio

17:1

Ignition order

1-3-4-2

Emission standard

Euro 3

Accessories

Air dryer, engine noise reduction board, electric flameout

Gearbox

WLY6T46, 6 Forwarder+1 Reverse

Steering Gear

power steering

Tire

8.25R16 , 6+1 Spare tire

Clutch

Clutch assist

Brakes

Spring brake,exhaust brake

Van body

Material of box

Glass fiber reinforced plastics

Thermal insulation

Polyurethane foam,8cm thickness

Dimension

4700*2150*2050mm

Door

Rear door open

Refrigeration unit brand

Dongin (Korea Brand) DT-150S

Temperature

-18℃-0℃ Adjustable

Features

1.Strong Fiberglass Inner and Outer Wall, with 8cm Middle Polyfoam Insulation.

2.Dongin Refrigeration unit, lowest Cooling Temperature negative 18 centi-degree.

3.Equipped with Ventilation slot
