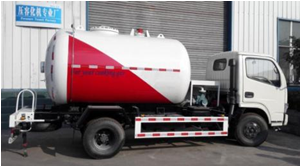

CLW1110TYY
CLW
| Specification | |||||||||||
| Items | Data | Items | Data | ||||||||
| Curb weight | 7100 kg | Design pressure | 1.61Mpa | ||||||||
| Payload | 3360 kg | Design temperature | 50 ℃ | ||||||||
| G.V.W. | 10460 kg | Filling medium | LPG | ||||||||
| Capacity | 8 m3 | Tank material | Q345R Carbon Steel | ||||||||
| Wheel Base | 3950 | Corrosion allowance | 1.0 mm | ||||||||
| External Dimensions | 7100*2230*2810mm | Hydraulic test pressure | 2.22Mpa | ||||||||
| Tank Diameter | 1600mm | Thickness of material | Tank | 8 mm | |||||||
| Tank Length | 4266mm | Cover | 8 mm ellipse | ||||||||
| Emergence cutting valve | Safe valve | ||||||||||
| Nominal pressure | PN2.5Mpa | Model | Inner full lift | ||||||||
| Nominal diameter | Gas phase | DN 25mm | Nominal pressure | PN2.5 Mpa | |||||||
| Liquid phase | DN 50mm | Nominal diameter | DN80mm | ||||||||
| Operation way | Mechanical type | set-pressure | 1.77 Mpa | ||||||||
| Closing time | ≤10 Sec | Rated relieving pressure | <1.93 Mpa | ||||||||
| Melt switch temperature | 70±5℃ | ||||||||||
| Level meter | Inlet and outlet | ||||||||||
| Model | Handle Rotary type | Model | Quick tie-in | ||||||||
| Nominal pressure | PN2.5Mpa | Nominal diameter | Gas phase | DN25mm | |||||||
| Surveying range | 50~2300mm | Liquid phase | DN50mm | ||||||||
| Precision | 2.5 Grade | ||||||||||
