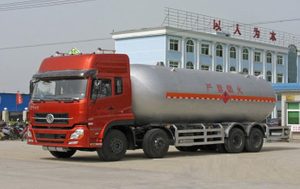

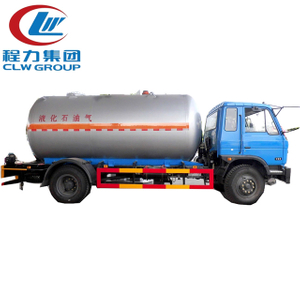

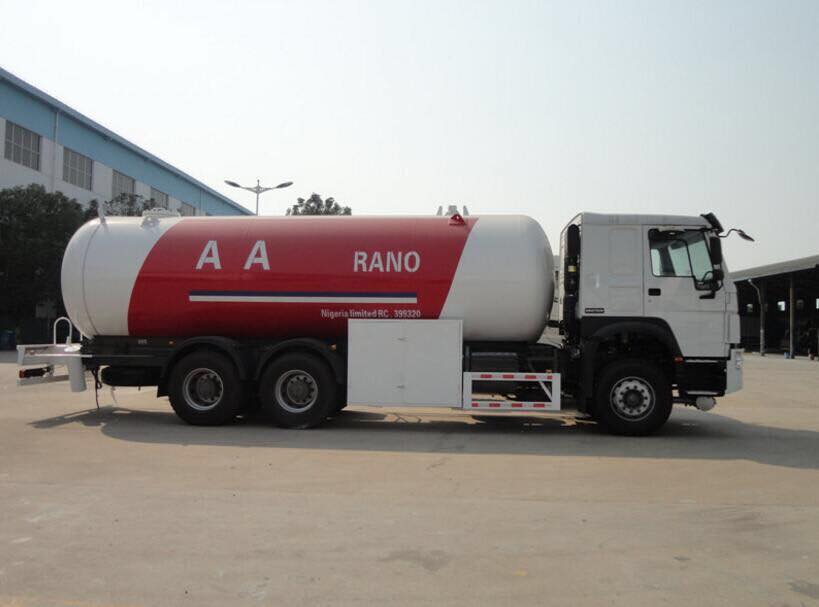

Factory Supply 30 M3 Fully Pressurized LPG Propane Delivery Road Truck
Technical parameter
Sinotruk 6x4 10 Wheel LPG Tanker Truck | ||
Truck dimension (L×W×H)mm | 11995x2480x3500 | |
Driving Type | 6×4, 10 wheel | |
Cabin | Flat head, LHD or RHD available, with Air conditioner. | |
Engine | Engine Brand | Sinotruk WD615.69, 336HP |
Emission Standard | Euro 2 | |
Displacement | 9720 ml | |
Engine type | Diesel 6-Cylinder in line with water cooling, turbo-charging & inter cooling | |
Gear Box | 9 forward and 1 reverse speed, mechanical transmission (DF9S1600) | |
Clutch | Φ430mm, diaphragm spring clutch | |
Front Axle | I-beam type 5T front axle | |
Rear Axle | 10T×2 | |
Tyre | 11.00R20 | |
Wheel Base | mm | 1950+4250+1300 |
Qty of Leaf Spring Suspension | mm | 8/8/10 |
Front / Rear Overhang | mm | 1460/3035 |
Front / Rear Tread | mm | 1940/1860 |
Approach /Departure Angle | 25/9 | |
Gross Vehicle Weight (GVW) | Kg | 31000 |
Loading Mass | Kg | 13000 |
Curb Weight | Kg | 17805 |
Max Speed | Km/h | 90 |
Tanker Specification | ||
Volume of Tanker | 30000 Liter, 30 CBM | |
Tank Dimension (length × diameter) | 9334×DN2124 mm | |
Design Pressure | 1.77Mpa | |
Designed Thickness | 11.5mm | |
Material | 16MnR | |
Testing Water Pressure | 2.65Mpa | |
Tyre | 12.00-20, 12R22.5, |
ABOUT US

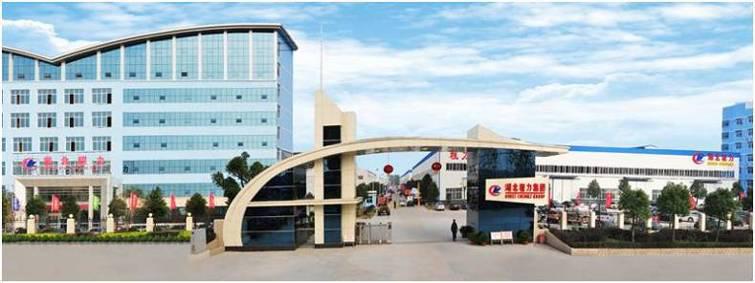

Chengli special automobile Co., Ltd is an automobile manufacturer, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
