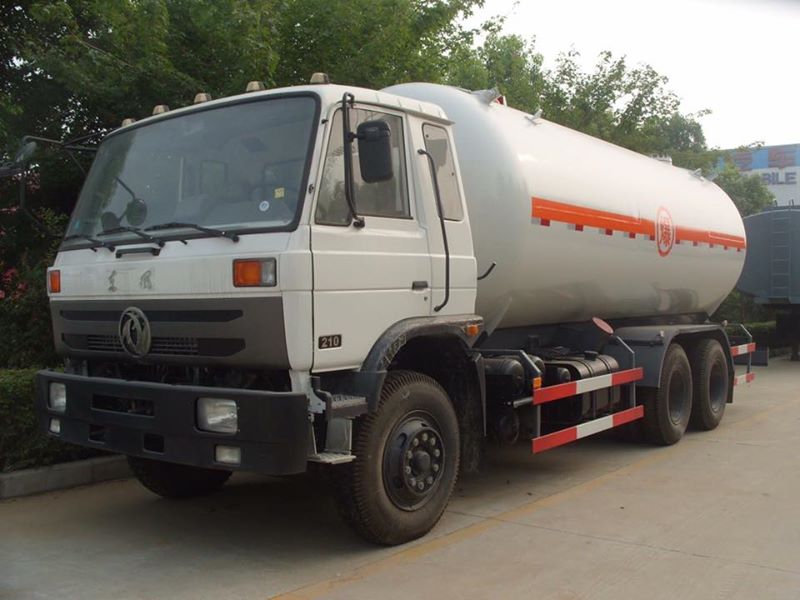

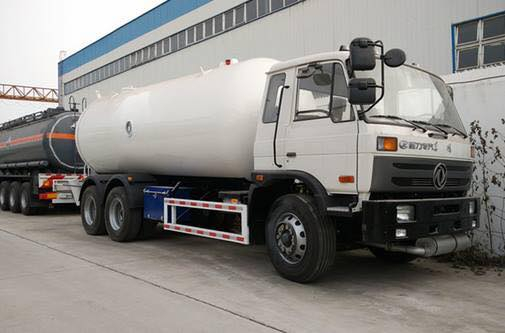

Fully Pressurized DFAC 6x4 16cbm LPG Propane Delivery Road Truck
Technical parameter
| 6x4 Dongfeng 16cbm LPG Gas tank truck filling machine | |||||
| Main Data | Model No. | CLW5190GYY3 | Axles | 3 | |
| G.V.W(Kg) | 19490 | Tank volume(m3) | 16 | ||
| Curb weight(Kg) | 8795 | Overall dimension (mm) | 11000×2490×3550,3200 | ||
| Rated weight(Kg) | 10500 | Axles Load(Kg) | 5400/5500/8590 | ||
| Emission Standard | Euro III | Front/rear suspension (mm) | 1430/2770 | ||
| Approach/departure angle (°) | 18/10 | Front/rear Tread(mm) | 1700+1500 | ||
| Wheelbase(mm) | 1700+5100 | Max speed(Km/h) | 90 | ||
| Leaf of springs | 10/10/10+8,10/10/11+8 | Tire | 9.00-20,9.00R20,10.00-20,10.00R20 | ||
| Chassis mode | DFL1190BX | Fuel type | Diesel | ||
| Engine | Type | Brand | Displacement(ML) | Rated Power(Kw) | |
| ISDe180 30/ISDe185 30 | Cummins | 4500 / 6700 | 132 / 136 | ||
| ISDe210 30 | Cummins | 6700 | 155 | ||
| EQH180-30 /EQH180-33 | Dongfeng | 4752 | 132 | ||
| YC6J200-33 | Yuchai | 6494 | 147 | ||
| Gearbox | 5 Forwards gear & 1 reverse gear | Brakes | dual circuit compressed air brake | ||
| LPG tank | Effective volumn:15.75cbm, tank size :8100×2200×1300mm. Floor clearance: 3200mm , Materials:Q235 carbon steel . Rear protective section size:100x60x50mm | ||||
About us
We CLW Heavy Industry Co., Ltd are a professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks, semi-trailers, and storage tanks. We also provide spare parts for the products separately.
All of our products comply can reach the international quality standards and are greatly appreciated in a variety of markets around the world.
1. CLW Heavy Industry Co., Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, petrol & medicals, container, and semi-trailer having nearly 15 years wholesaler experience in producing truck.
2.Our company has independent export right and has amount of clients overseas including Africa, North America, Middle East, Australia and so on. The export turnover has reached 25million dollars.
3.Our company has good after-sales service, solid technology, flawless inspection for our dear customers.
Our factory advantages
1. More than 15 years' experience as a manufacturer
2. Competitive price and excellent quality
3. CCC, ISO, BV, ASME certification
4. Perfect after-sale service
5. Customized products are available
6. 100 senior welder and 15 senior engineers
7. Export covering More than 50 countries and regions
Products catalog
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Fully Pressurized DFAC 6x4 16cbm LPG Propane Delivery Road Truck
